IoT ESP32 Prepaid Energy Meter With PZEM-004T

Have you ever been shocked by a suddenly high electricity bill? This DIY IoT ESP32 prepaid energy Meter project puts you back in control of your energy usage and costs. Monitoring and controlling electricity consumption are essential for cost efficiency and safety.

In this project, we will build an IoT-based Prepaid Energy Meter using ESP32, PZEM-004T, a relay module, and a TFT display. The system monitors real-time voltage, current, power, and energy usage, deducts a balance based on consumption, and disconnects power when the balance is low. Users can also control and recharge their balance via a web interface. Checkout latest project: Build an IoT Energy Meter with ESP32 & PZEM-004T

This smart device allows you to:

Real-time power usage (voltage, current, power, and energy)
Load credits into a prepaid account
Automatically cut power when the balance runs out or below the threshold

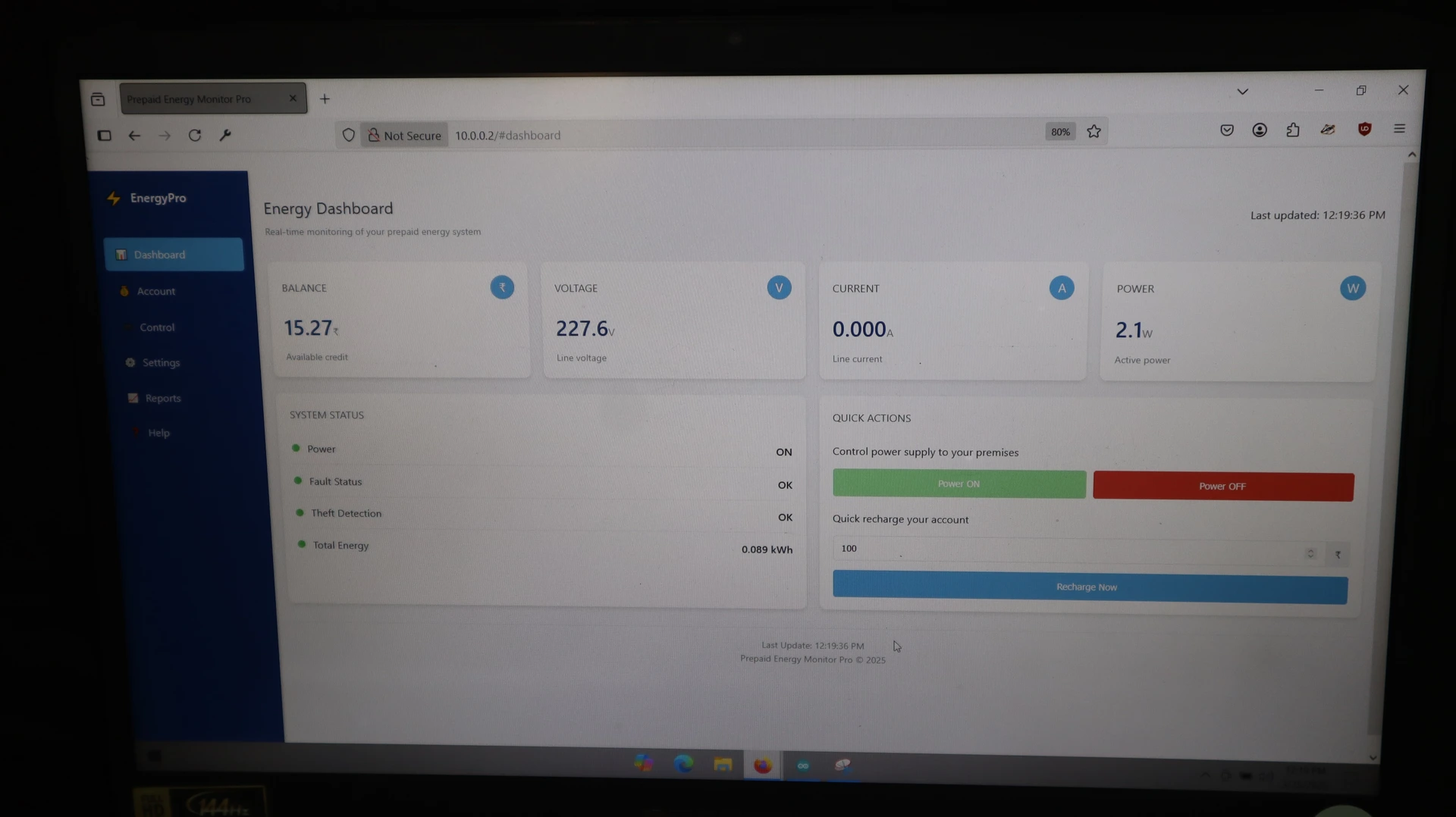

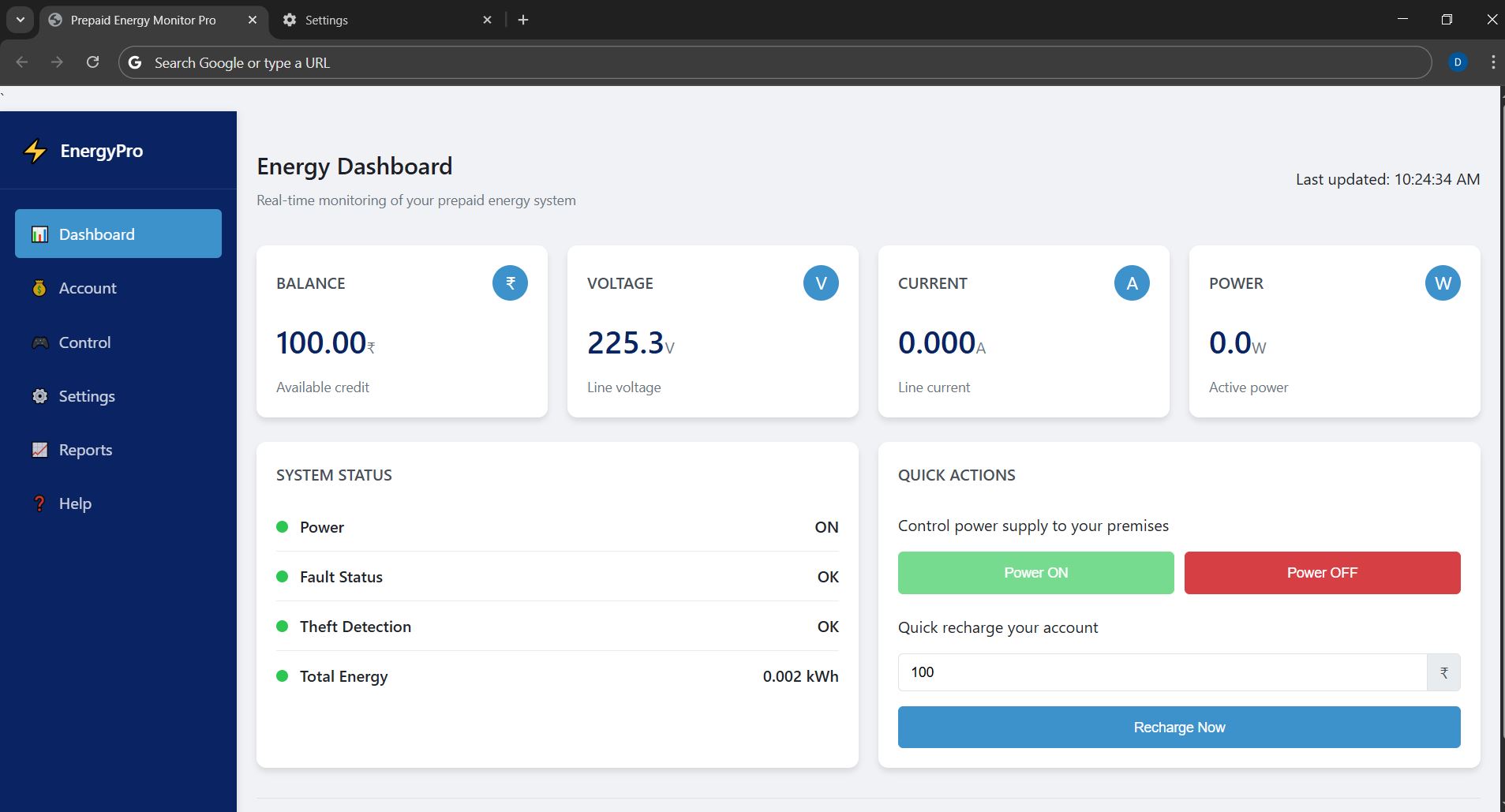

Access all data through a web dashboard
Get alerts for electrical problems like voltage spikes

Required Components

ESP32 BOARD ( Amazon / Aliexpress )
PZEM-004T V3.0 Module ( Amazon / Aliexpress )
1.8″ TFT LCD DISPLAY ( Amazon / Aliexpress )
5V RELAY MODULE ( Amazon / Aliexpress )
PUSH BUTTON
JUMPER WIRES
BREADBOARD OR PCB

Software Requirements:

Arduino IDE
Required Libraries:
- PZEM004Tv30
- Adafruit GFX Library
- Adafruit ST7735 Library

PZEM-004T Energy Meter Module

The PZEM-004T is an AC energy monitoring module for measuring voltage, current, active power, frequency, power factor, and energy consumption. It communicates via RS485 using the Modbus-RTU protocol.

Key Features:

Voltage 80–260V, ±0.5% accuracy.
Current: Up to 10A (built-in shunt) or 100A (external CT), ±0.5% accuracy.
Power : Up to 2.3kW (10A) or 23kW (100A), ±0.5% accuracy.
Energy : 0–9999.99kWh, resettable via software.
Communication RS485 (TTL), 9600 baud rate, 8N1.

Pinout:

L (Live): Connect to AC mains
N (Neutral): Connect to AC neutral
CT+ & CT-: Connect to the external current transformer
5V & GND: Power the module
TX & RX: Serial communication

Applications:

Home energy monitoring.
Industrial automation.
Renewable energy systems.

Working Principle | IoT ESP32 Prepaid Energy Meter With PZEM-004T

Measurement: The PZEM sensor safely connects to your electrical line and measures voltage, current, power, and energy usage.
Processing: The ESP32 reads this data, calculates your remaining balance based on energy used, and controls everything.

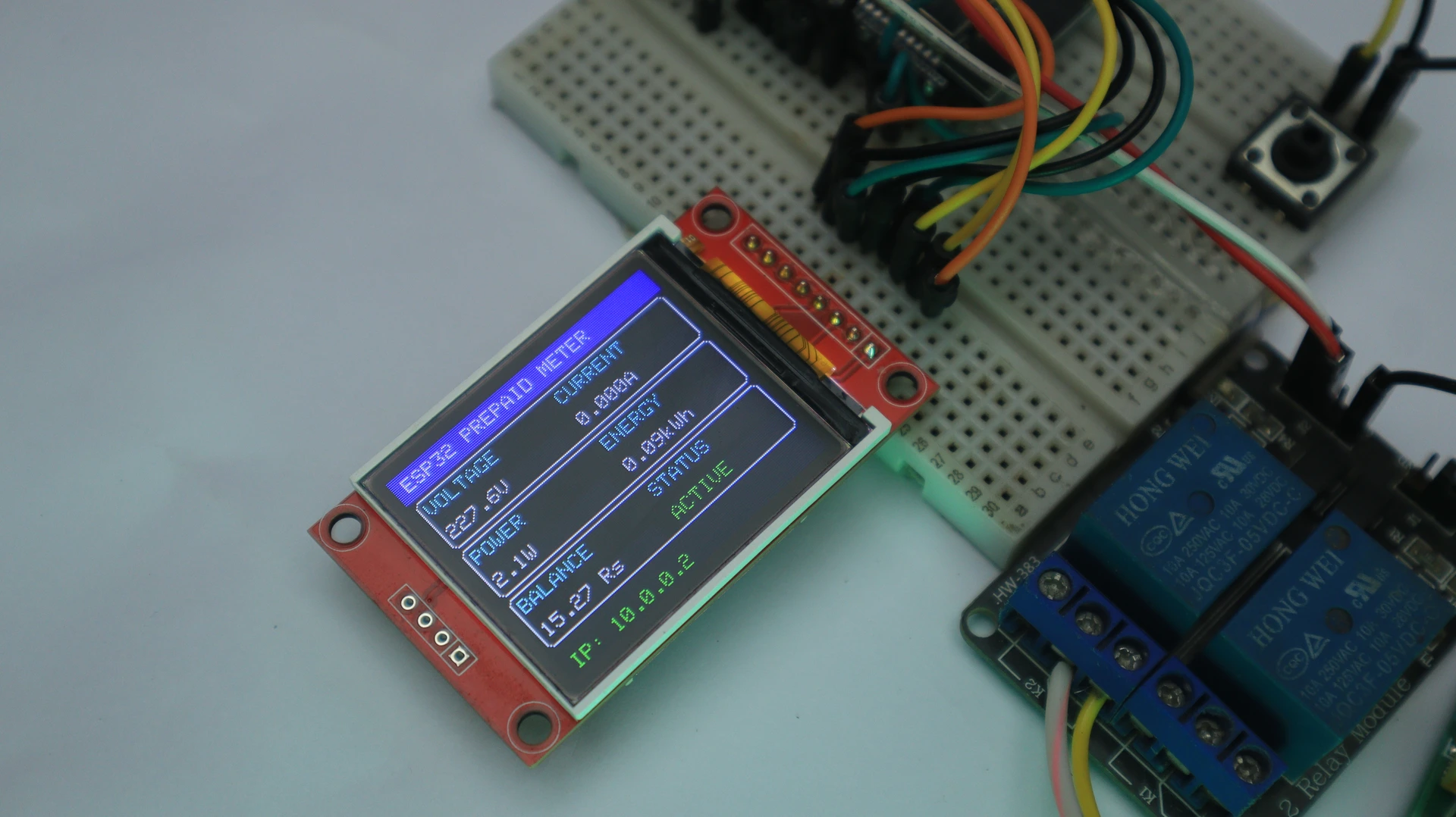

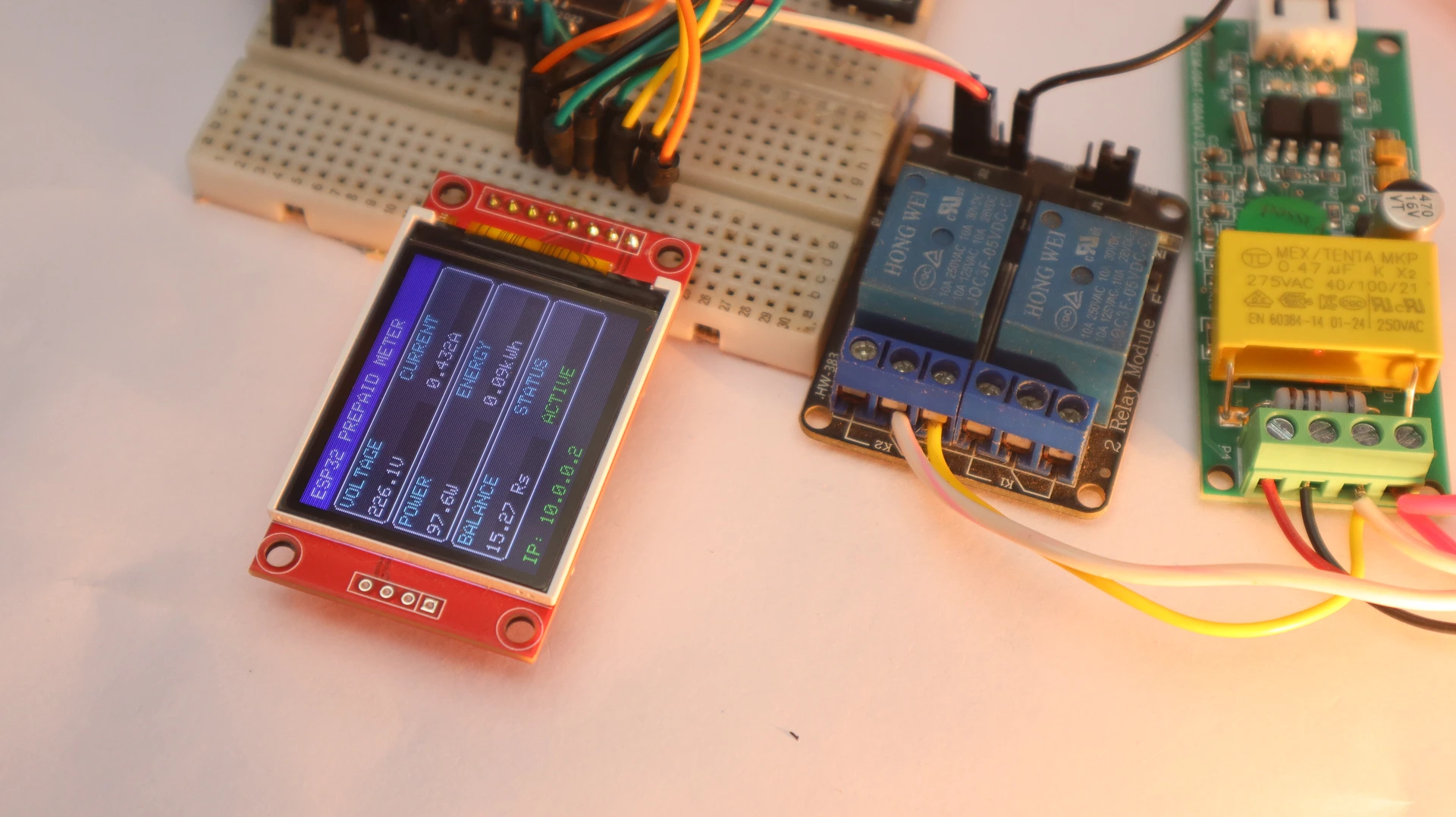

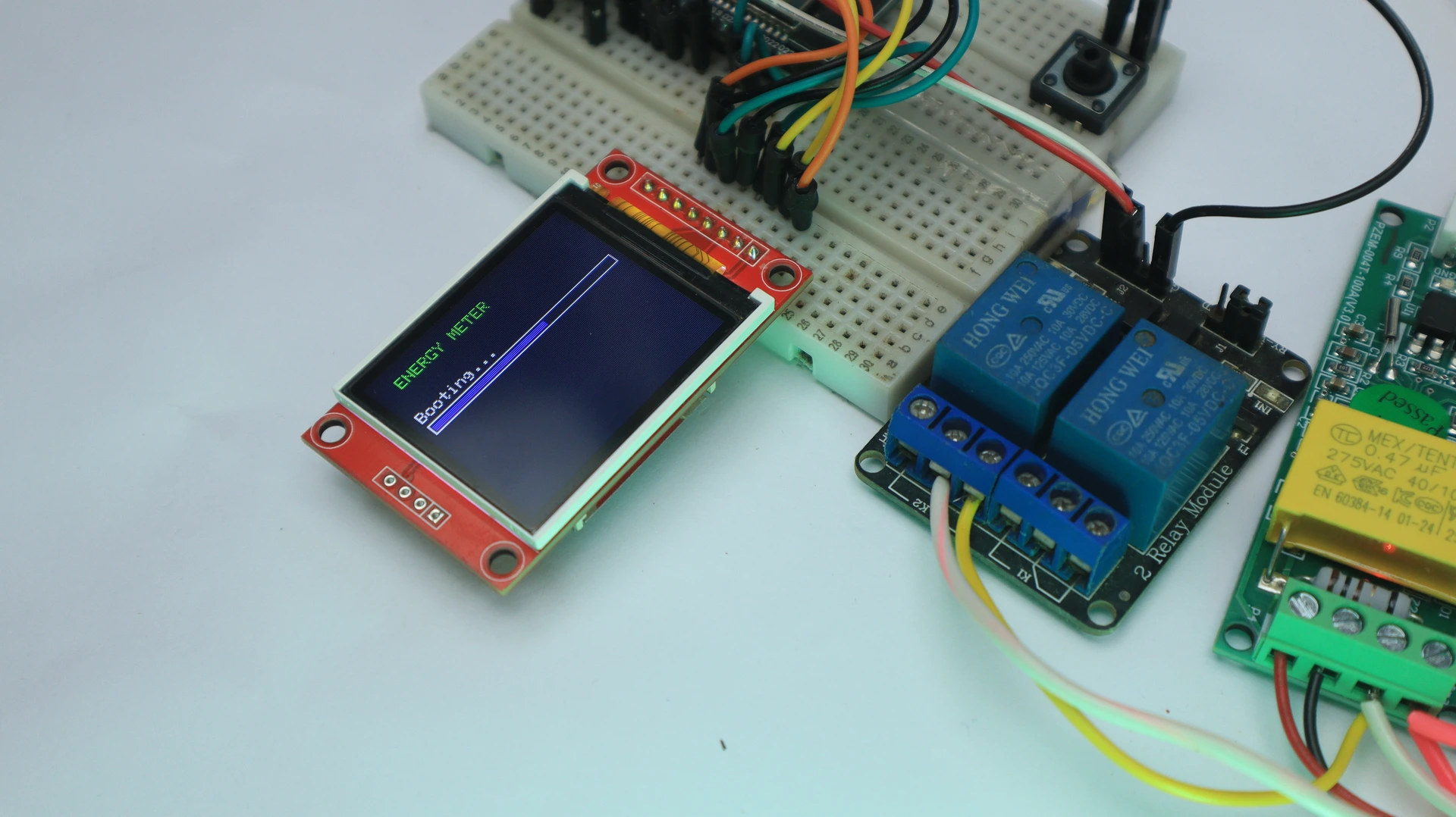

Display: You can view all information on the attached TFT screen and a web dashboard from any device on your home network.

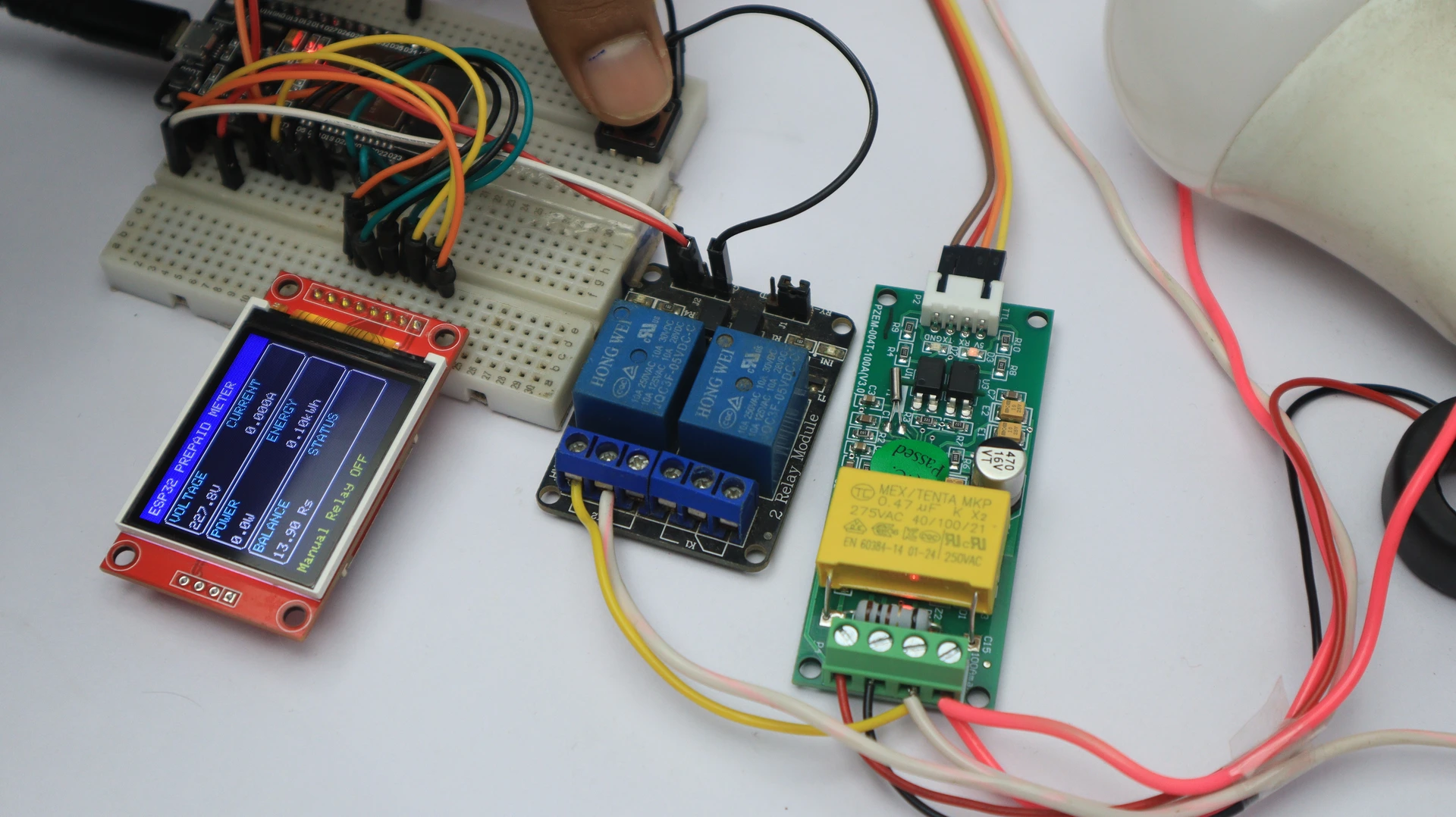

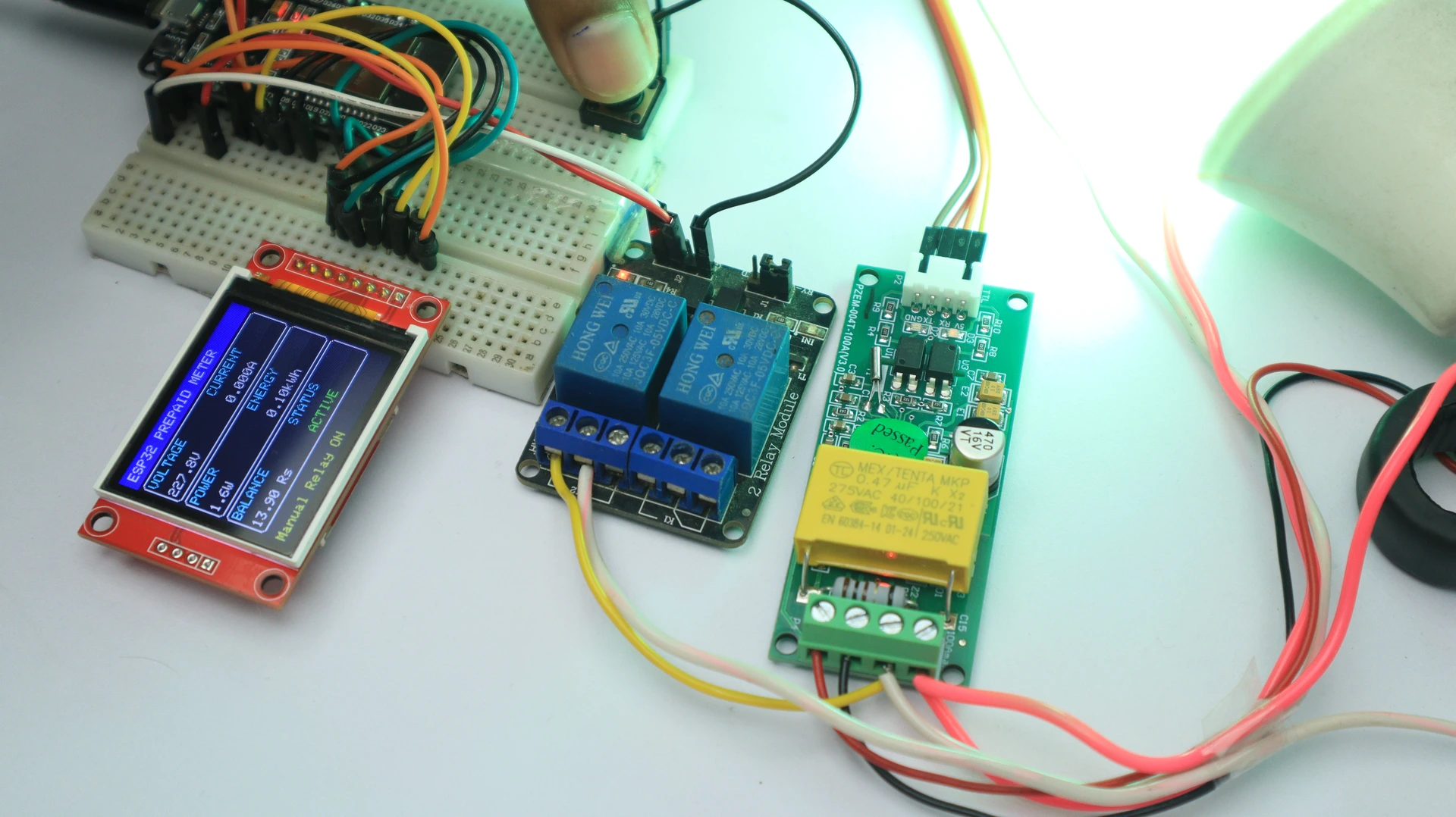

Control: When your balance is too low or there’s an electrical problem, the system automatically cuts power using the relay.

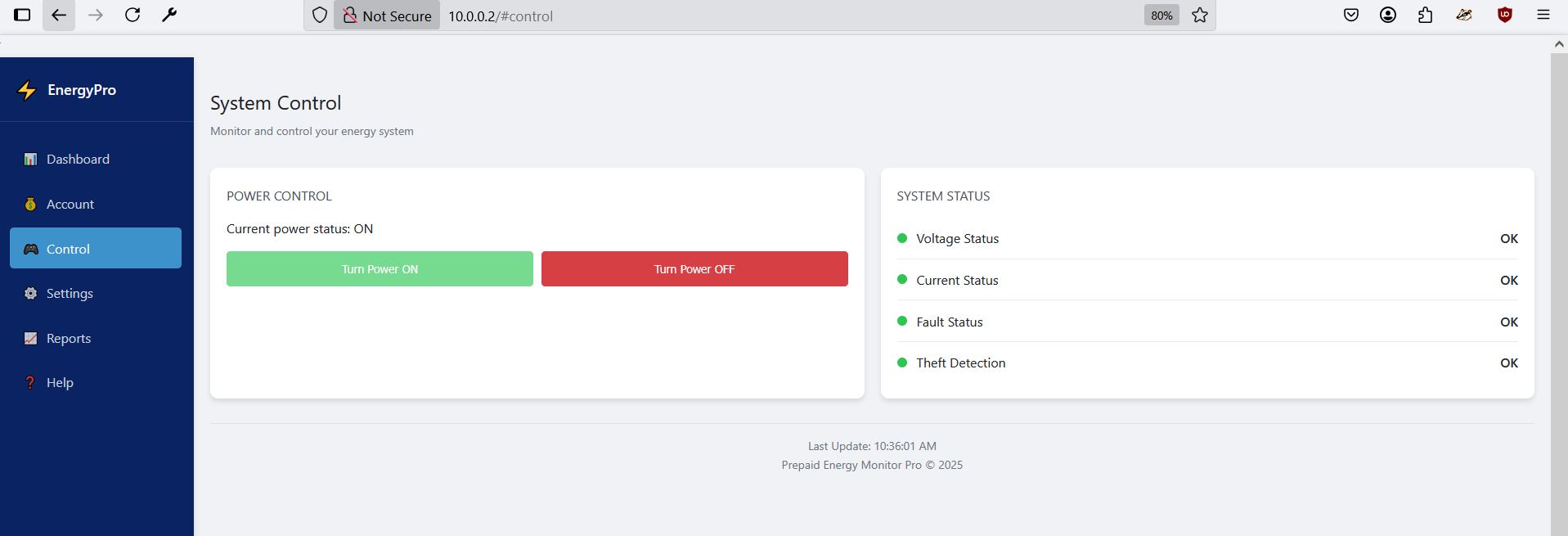

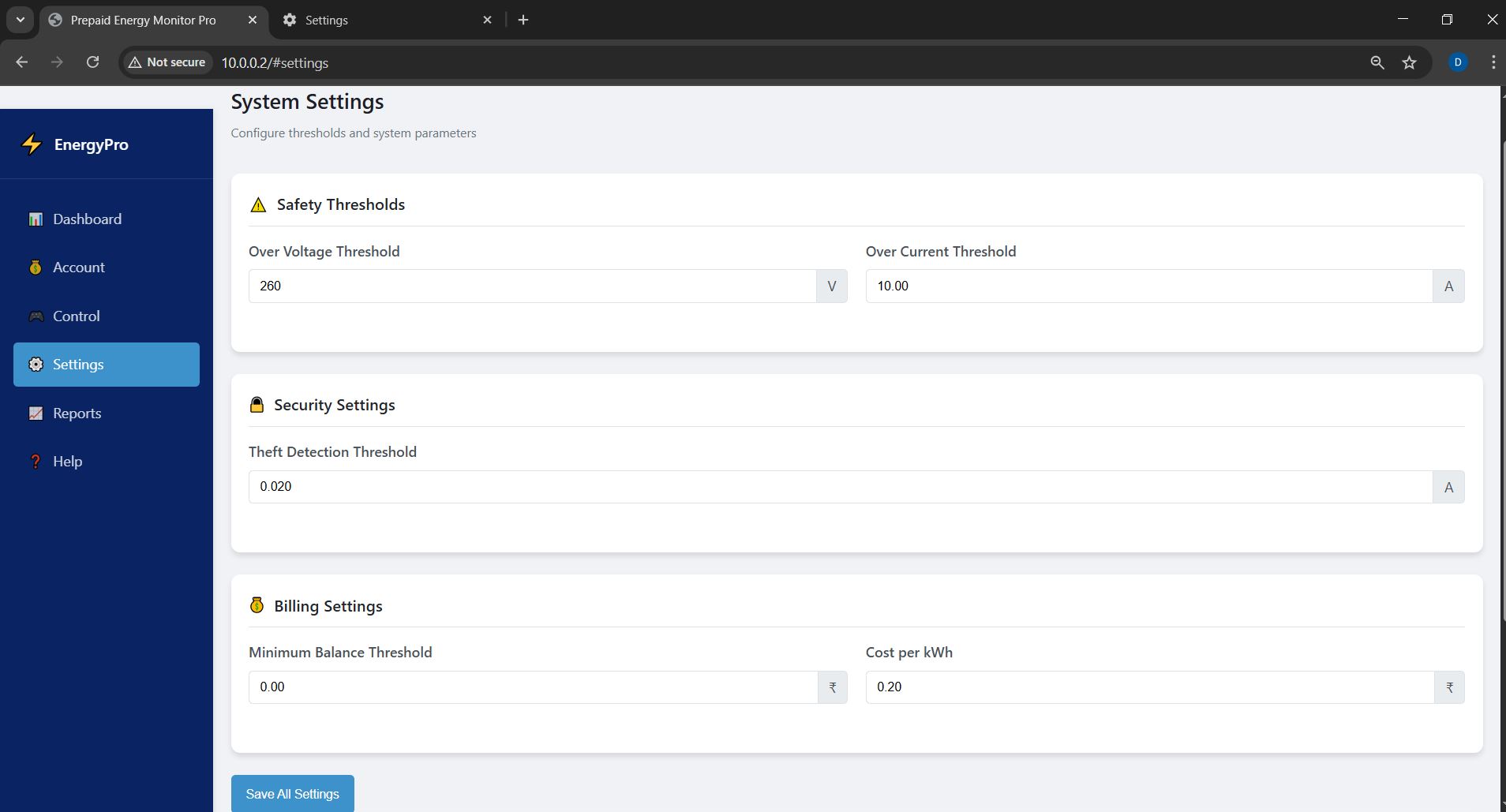

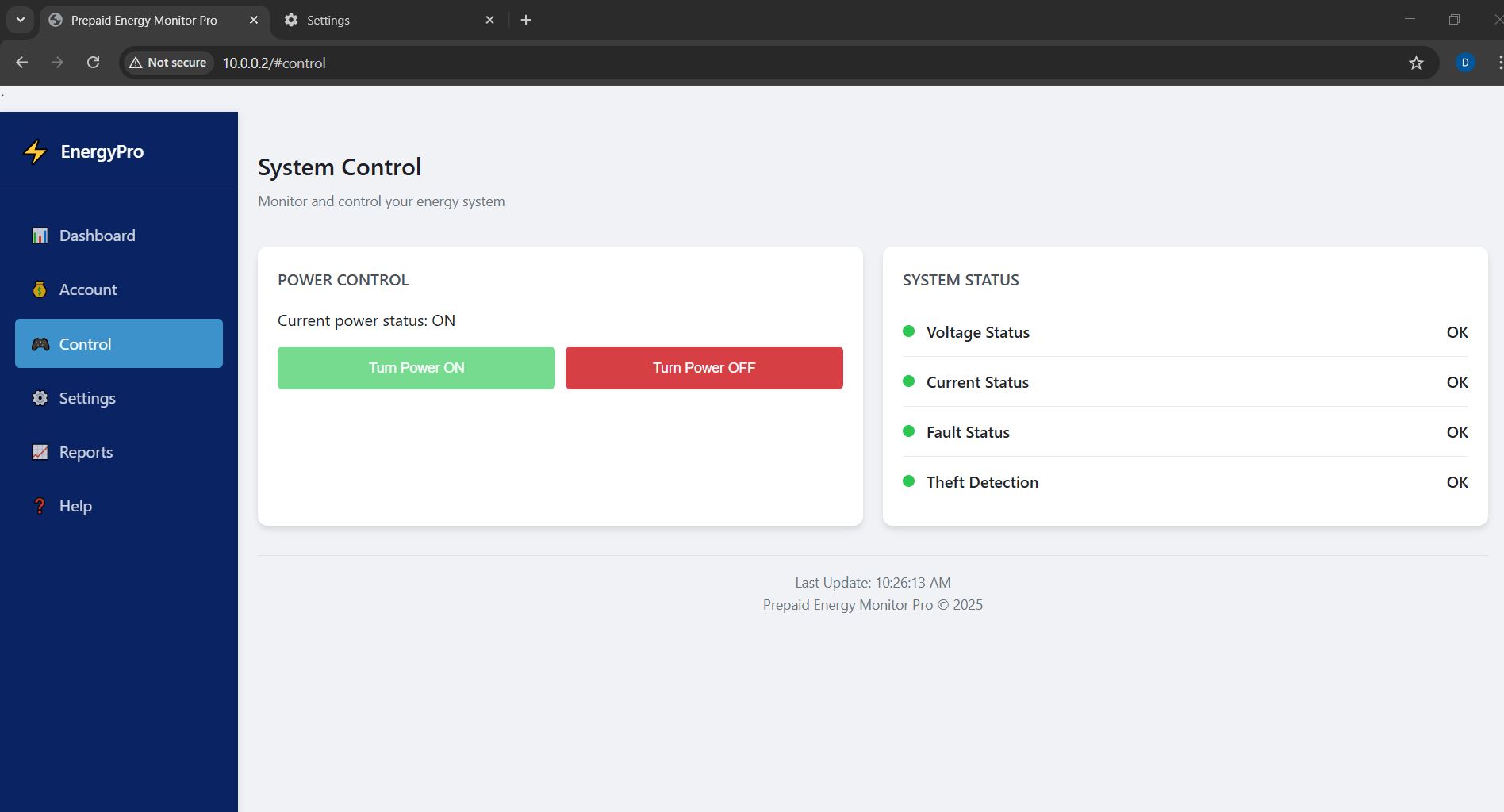

Management: You can add credit, change settings, and manually control power through the web interface.

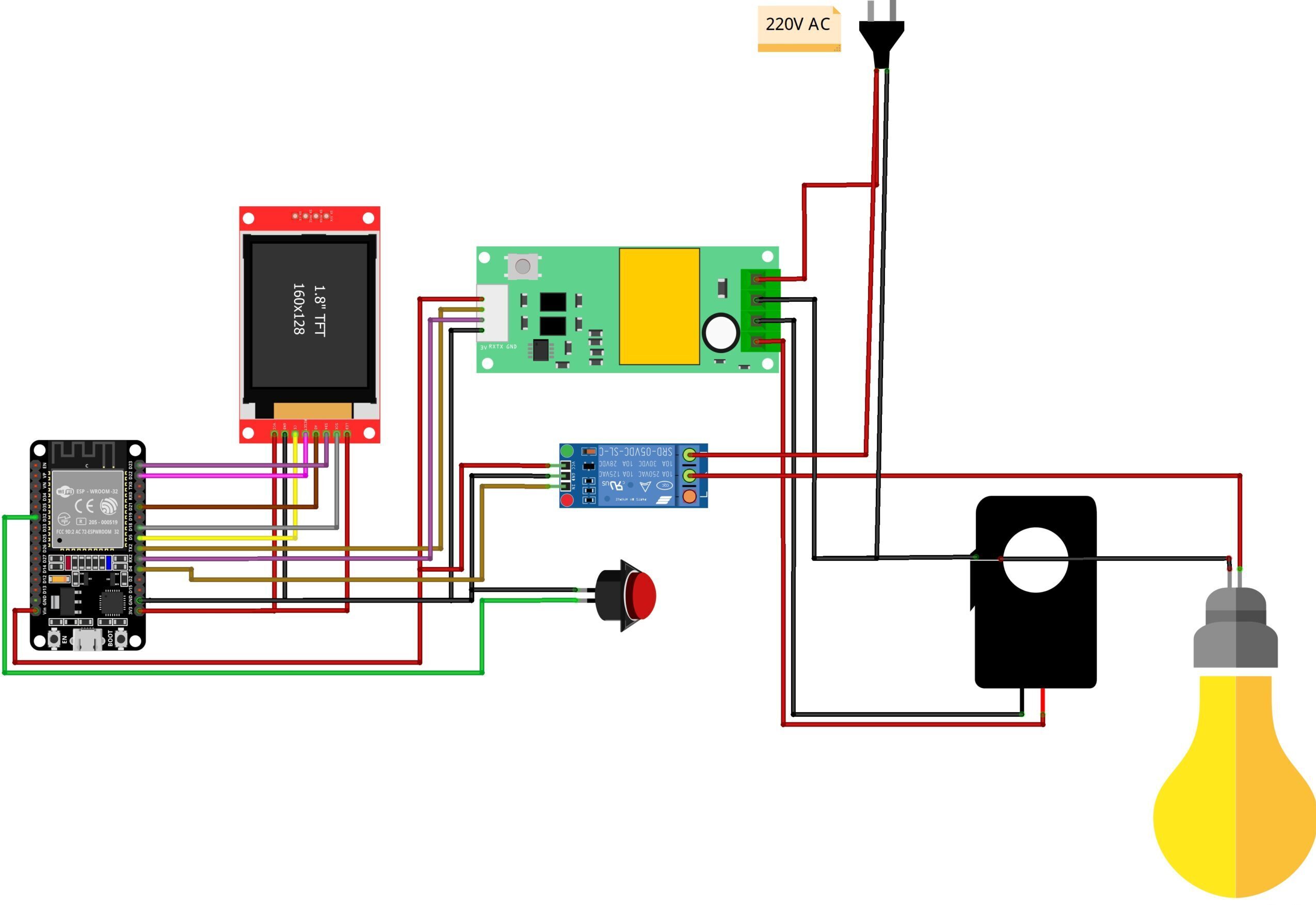

Connect the Components

1. PZEM-004T Connections

Live Wire (V+) → AC Live Input
Neutral Wire (V-) → AC Neutral Input
Current Input (I+) → External CT (for 100A model) or internal shunt (for 10A model)
RS485 Communication :
- RX → ESP32 TX (e.g., GPIO17 for TX2)
- TX → ESP32 RX (e.g., GPIO16 for RX2)
Power Supply :
- 5V → ESP32 5V
- GND → ESP32 GND

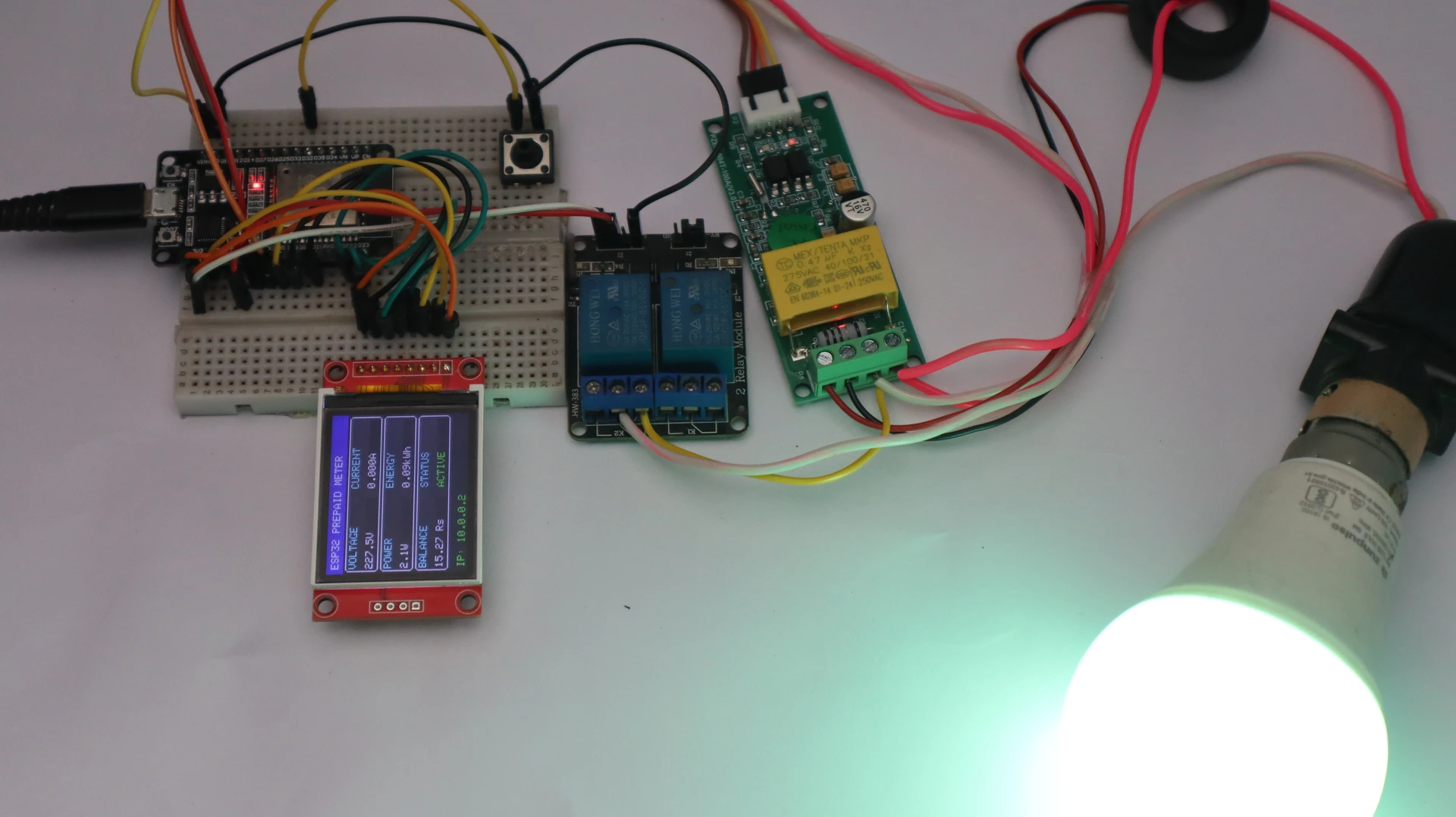

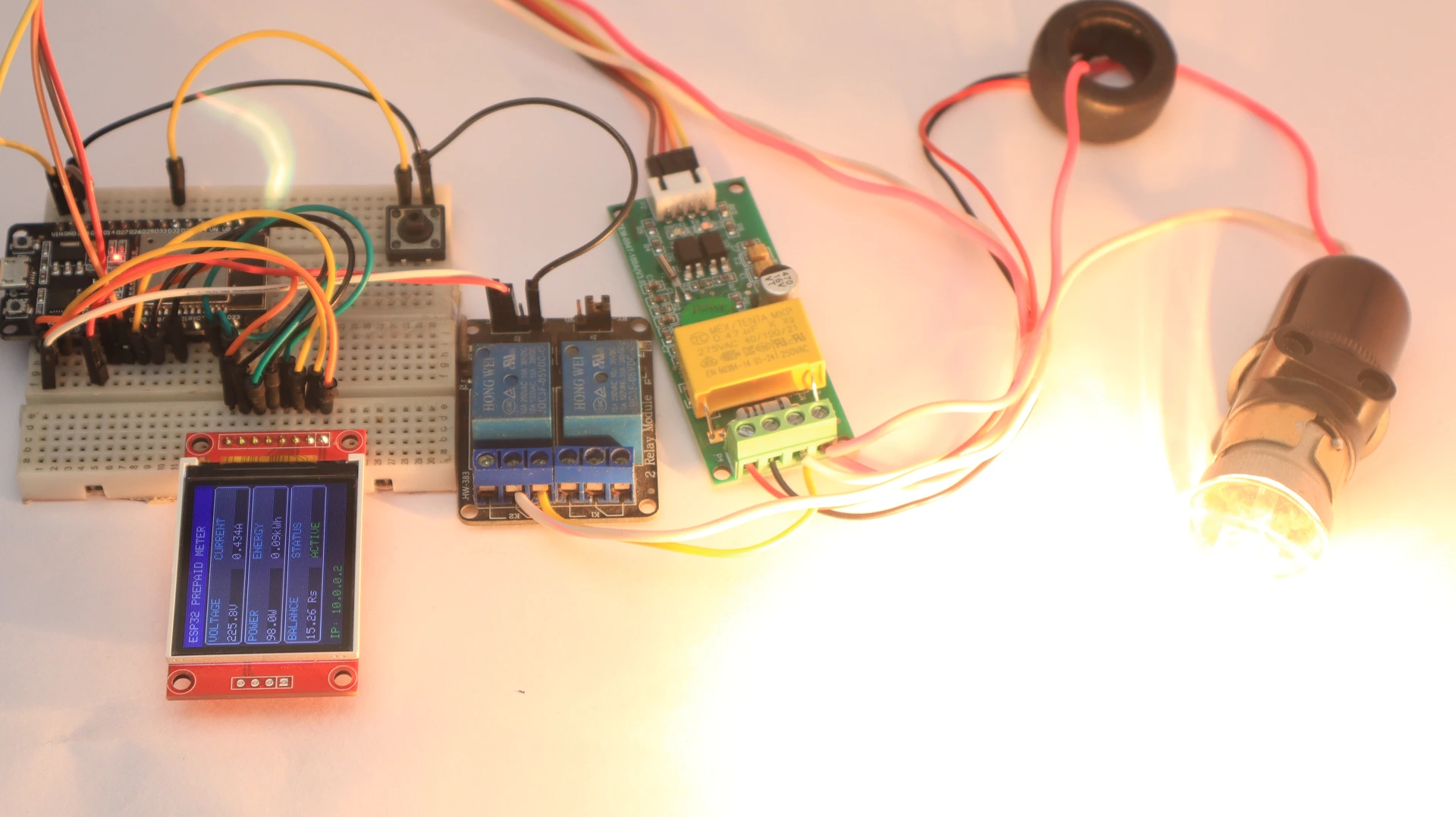

Load (Bulb) Connections
- Bulb One Terminal → AC Live Output (from PZEM-004T)
- Bulb Other Terminal → Relay COM (Common) Pin
- Relay NO (Normally Open) → AC Neutral Output (from PZEM-004T)

2. Relay Connections

Relay VCC → ESP32 5V
Relay GND → ESP32 GND
Relay IN → ESP32 GPIO Pin (e.g., GPIO4)

3. TFT Display to ESP32 Connections

TFT Pin	ESP32 Pin	Description
VCC	3.3V	Power supply (3.3V)
GND	GND	Ground
CS	GPIO5	Chip Select (SPI)
RST	GPIO22	Reset (optional if tied high)
DC (RS)	GPIO21	Data/Command Control
SDA (MOSI)	GPIO23	SPI Data line (VSPI MOSI)
SCK	GPIO18	SPI Clock
LED (BL)	3.3V	Backlight

4. Connect the Push Button

Button one leg → ESP32 Pin 32
Button other leg → ESP32 GND

Install the Libraries:

Add ESP32 board support to Arduino IDE. If you have not already setup
Before uploading the code, install the following libraries :

Upload the Code

Copy the entire project code from the code below and open the code in Arduino IDE.

Modify the WiFi settings with your network credentials.

const char* ssid = "YourWiFiName";
const char* password = "YourWiFiPassword";

1 2	const char* ssid = "YourWiFiName"; const char* password = "YourWiFiPassword";

Source code – IoT ESP32 Prepaid Energy Meter

#include <PZEM004Tv30.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>
#include <WiFi.h>
#include <WebServer.h>
#include <ArduinoJson.h>
#include <EEPROM.h>
#include <ESP.h> // Required for ESP.restart()

// Define pins for PZEM
#define PZEM_RX_PIN 16
#define PZEM_TX_PIN 17

// TFT display pins
#define TFT_CS    5
#define TFT_DC    21
#define TFT_RST   22
#define TFT_MOSI  23
#define TFT_SCLK  18

// Relay pin for power control
#define RELAY_PIN 4
// Push button pin for page change and manual relay override
#define BUTTON_PIN 32 // Example pin, choose an available pin

// EEPROM addresses
#define EEPROM_SIZE 128 // Increased EEPROM size to accommodate more settings
#define BALANCE_ADDR 0
#define ENERGY_ADDR 4
#define OVER_VOLTAGE_THRESHOLD_ADDR 8
#define OVER_CURRENT_THRESHOLD_ADDR 12
#define THEFT_CURRENT_THRESHOLD_ADDR 16
#define MINIMUM_BALANCE_ADDR 20
#define COST_PER_KWH_ADDR 24 // Corrected definition - retyped this line

// Default values for thresholds (used if EEPROM is empty or corrupted)
#define DEFAULT_OVER_VOLTAGE_THRESHOLD 260.0
#define DEFAULT_OVER_CURRENT_THRESHOLD 10.0
#define DEFAULT_THEFT_CURRENT_THRESHOLD 0.02
#define DEFAULT_MINIMUM_BALANCE 0.0
#define DEFAULT_COST_PER_KWH 0.2
#define DEFAULT_BALANCE 0.0
#define DEFAULT_ENERGY 0.0

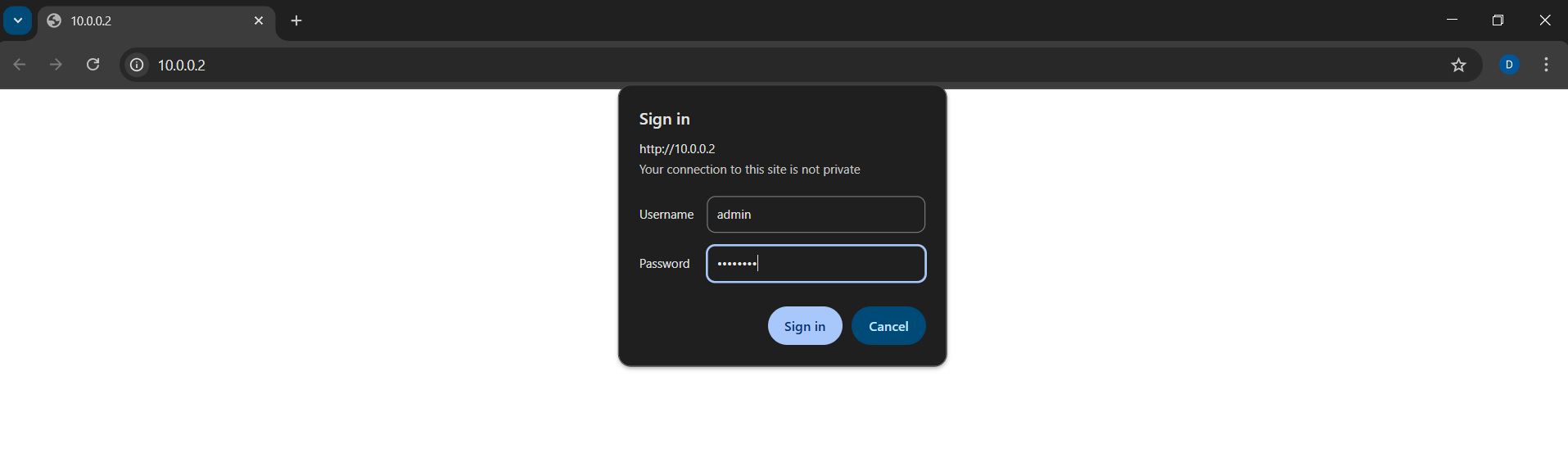

// Authentication credentials for web interface
const char* admin_username = "admin";
const char* admin_password = "admin123";

// Server port
WebServer server(80);

// Colors (Added missing colors if needed)
#define BLACK     0x0000
#define BLUE      0x001F
#define RED       0xF800
#define GREEN     0x07E0
#define YELLOW    0xFFE0
#define WHITE     0xFFFF
#define DARKGRAY  0x4208
#define CYAN      0x07FF
#define MAGENTA   0xF81F
#define ORANGE    0xFD20 // Example Orange

// Text buffers to track changes and avoid unnecessary redraws
char lastVoltageText[20] = ""; // Increased buffer size to 20
char lastCurrentText[20] = "";
char lastPowerText[20] = "";
char lastEnergyText[20] = "";
char lastBalanceText[20] = "";
char lastStatusText[20] = "";
char lastFaultText[20] = "";
char lastTheftText[20] = "";

// Common text settings - Function to reduce repetition
void setTextProperties(Adafruit_ST7735 &display, uint16_t color, uint8_t size = 1) { // Modified to accept tft display object
    display.setTextColor(color);
    display.setTextSize(size);
}

// Global variables
unsigned long measurementInterval = 2000; // Interval between PZEM readings (milliseconds)
unsigned long lastReadTime = 0;
unsigned long screenRefreshTime = 0;
unsigned long balanceUpdateTime = 0;
unsigned long lastEnergyValue = 0;
const unsigned long SCREEN_REFRESH_INTERVAL = 1000; // Interval for screen refresh (milliseconds)
const unsigned long BALANCE_UPDATE_INTERVAL = 60000; // Update balance every minute
bool layoutDrawn = false;
unsigned long notificationEndTime = 0; //used for determine the end of the notification
String currentNotification = ""; // string to  current displaying notification
uint16_t notificationColor = WHITE;
bool pzemConnected = true;     // Flag to track PZEM connection status
bool relayState = true;        // Flag to track relay state
float balance = 0.0;           // Current balance in rupees
float lastEnergy = 0.0;        // Last energy reading
bool faultDetected = false;    // Flag for fault detection
bool theftDetected = false;    // Flag for theft detection
int displayPage = 0;           // Current display page (0=main, 1=alerts)
unsigned long pageChangeTime = 0; // Time to switch between pages
const unsigned long PAGE_INTERVAL = 5000; // Switch pages every 5 seconds
bool manualOverride = false;    // Flag for manual relay control override

// Thresholds - now variables, loaded from EEPROM and configurable
float overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;
float overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;
float theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;
float minimumBalance = DEFAULT_MINIMUM_BALANCE;
float costPerKWh = DEFAULT_COST_PER_KWH;

// Initialize TFT and PZEM
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_MOSI, TFT_SCLK, TFT_RST);
PZEM004Tv30 pzem(Serial2, PZEM_RX_PIN, PZEM_TX_PIN);

// Structure for PZEM readings
struct PzemData {
float voltage;
float current;
float power;
float energy;
bool isValid;
};

// Store readings
PzemData readings = {0, 0, 0, 0, false};

// Store IP address as a string to avoid repeated calls
String ipAddressStr = "";

// WiFi credentials - Replace with your actual credentials
const char* ssid = "ESP32";
const char* password = "aaaaaaaa";

// Button debounce variables
const unsigned long debounceDelay = 50; // Debounce delay in milliseconds
unsigned long lastButtonPress = 0;
bool buttonState = false; // Current button state
bool lastButtonState = false; // Previous button state

// Notification timer interval (5 minutes)
const unsigned long NOTIFICATION_INTERVAL = 300000; // 5 minutes in milliseconds
unsigned long lastNotificationTime = 0;

// WiFi reconnection variables
unsigned long lastWifiCheckTime = 0;
const unsigned long WIFI_RECHECK_INTERVAL = 30000; // Check WiFi every 30 seconds

// Manual relay override button variables
unsigned long buttonPressStartTime = 0;
bool manualRelayControlActive = false;

// Function prototypes
void handleRoot();
void handleLogin();
void handleRecharge();
void handleData();
void handleReset();
void handleSetRelay();
void handleNotFound();
void readPzemData();
void drawLayout();
void drawLiveDataPage();
void drawAlertsPage();
void updateDisplayValues();
void showNotification(const String& message, uint16_t color, unsigned long duration = 5000); //default 5 sec notification
void clearNotification();
void displayStartupSequence();
void configureWiFi(); // Modified to remove WiFiManager
void saveBalance();
void loadBalance();
void updateBalance();
void checkFaultsAndTheft();
void controlRelay();
void printDebugInfo(const char* action, bool success);
void handleSetThresholds(); // New handler for setting thresholds
void saveThresholds();      // Function to save thresholds to EEPROM
void loadThresholds();      // Function to load thresholds from EEPROM
String generateThresholdsHTML(); // Function to generate HTML for threshold settings section
void handleFactoryReset();  // New handler for factory reset
void resetEEPROMToDefaults(); // Function to reset EEPROM to defaults
void checkWiFiConnection();   // Function to check and reconnect WiFi

// Helper function to clear a text area on TFT
void clearTextArea(int x, int y, int w, int h) {
    tft.fillRect(x, y, w, h, BLACK);
}

// HTML page stored in PROGMEM (Improved Web Dashboard UI/UX) - Modified to include Factory Reset Button
const char index_html[] PROGMEM = R"rawliteral(
`
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Prepaid Energy Monitor Pro</title>
    <style>
        /* Modern Professional Color Palette */
        :root {
            --primary: #0a2463;
            --secondary: #3e92cc;
            --accent: #2dc653;
            --warning: #ffb400;
            --danger: #d64045;
            --dark: #1e1f26;
            --light: #f8f9fa;
            --gray-100: #f0f2f5;
            --gray-200: #e9ecef;
            --gray-300: #dee2e6;
            --gray-400: #ced4da;
            --gray-500: #adb5bd;
            --gray-600: #6c757d;
            --gray-700: #495057;
            --gray-800: #343a40;
            --text: #212529;
            --box-shadow: 0 2px 8px rgba(0, 0, 0, 0.12);
            --card-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
            --transition: all 0.2s ease;
        }

        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        body {
            font-family: 'Roboto', 'Segoe UI', sans-serif;
            background-color: var(--gray-100);
            color: var(--text);
            line-height: 1.6;
        }

        .dashboard-container {
            display: grid;
            grid-template-columns: 240px 1fr;
            min-height: 100vh;
        }

        /* Sidebar */
        .sidebar {
            background-color: var(--primary);
            color: white;
            padding-top: 20px;
            position: fixed;
            height: 100vh;
            width: 240px;
            z-index: 100;
            box-shadow: var(--box-shadow);
        }

        .brand {
            display: flex;
            align-items: center;
            padding: 0 20px 20px;
            border-bottom: 1px solid rgba(255, 255, 255, 0.1);
        }

        .brand-icon {
            font-size: 24px;
            margin-right: 10px;
        }

        .brand-name {
            font-size: 18px;
            font-weight: 600;
        }

        .nav-menu {
            list-style: none;
            padding: 20px 0;
        }

        .nav-item {
            padding: 0 15px;
            margin-bottom: 5px;
        }

        .nav-link {
            display: flex;
            align-items: center;
            padding: 12px 15px;
            color: rgba(255, 255, 255, 0.8);
            text-decoration: none;
            border-radius: 5px;
            transition: var(--transition);
        }

        .nav-link:hover {
            background-color: rgba(255, 255, 255, 0.1);
            color: white;
        }

        .nav-link.active {
            background-color: var(--secondary);
            color: white;
        }

        .nav-icon {
            margin-right: 10px;
            width: 20px;
            text-align: center;
        }

        /* Main Content */
        .main-content {
            grid-column: 2;
            padding: 20px;
        }

        .page-header {
            padding: 15px 0;
            margin-bottom: 20px;
            display: flex;
            justify-content: space-between;
            align-items: center;
        }

        .page-title {
            font-size: 24px;
            font-weight: 500;
            color: var(--dark);
        }

        .page-subtitle {
            font-size: 14px;
            color: var(--gray-600);
            margin-top: 5px;
        }

        /* Cards & Grids */
        .card-grid {
            display: grid;
            grid-template-columns: repeat(auto-fit, minmax(240px, 1fr));
            gap: 20px;
            margin-bottom: 25px;
        }

        .card {
            background-color: white;
            border-radius: 10px;
            box-shadow: var(--card-shadow);
            padding: 20px;
            transition: var(--transition);
        }

        .card:hover {
            box-shadow: 0 10px 15px rgba(0, 0, 0, 0.07);
            transform: translateY(-2px);
        }

        .card-header {
            display: flex;
            justify-content: space-between;
            align-items: center;
            margin-bottom: 15px;
        }

        .card-title {
            font-size: 16px;
            font-weight: 500;
            color: var(--gray-700);
        }

        .card-icon {
            font-size: 18px;
            width: 36px;
            height: 36px;
            display: flex;
            align-items: center;
            justify-content: center;
            border-radius: 50%;
            background-color: var(--secondary);
            color: white;
        }

        .dashboard-value {
            font-size: 32px;
            font-weight: 600;
            color: var(--primary);
            margin: 10px 0;
        }

        .unit {
            font-size: 16px;
            font-weight: normal;
            color: var(--gray-600);
        }

        .trend {
            display: flex;
            align-items: center;
            font-size: 14px;
            color: var(--gray-600);
        }

        .trend-up {
            color: var(--accent);
        }

        .trend-down {
            color: var(--danger);
        }

        /* Status Indicators */
        .status-card {
            display: flex;
            flex-direction: column;
            height: 100%;
        }

        .status-indicators {
            flex-grow: 1;
        }

        .status-item {
            display: flex;
            align-items: center;
            padding: 12px 0;
            border-bottom: 1px solid var(--gray-200);
        }

        .status-item:last-child {
            border-bottom: none;
        }

        .status-indicator {
            width: 12px;
            height: 12px;
            border-radius: 50%;
            margin-right: 12px;
        }

        .status-active {
            background-color: var(--accent);
        }

        .status-inactive {
            background-color: var(--gray-500);
        }

        .status-warning {
            background-color: var(--warning);
        }

        .status-danger {
            background-color: var(--danger);
        }

        .status-label {
            font-weight: 500;
            flex-grow: 1;
        }

        .status-value {
            font-weight: 600;
        }

        /* Action Areas */
        .action-card {
            height: 100%;
        }

        .action-content {
            padding-top: 10px;
        }

        .input-group {
            display: flex;
            margin-bottom: 15px;
        }

        .input-group .form-input {
            flex-grow: 1;
            border-top-right-radius: 0;
            border-bottom-right-radius: 0;
        }

        .input-group .input-append {
            display: flex;
            align-items: center;
            padding: 0 12px;
            background-color: var(--gray-200);
            border: 1px solid var(--gray-300);
            border-left: none;
            border-top-right-radius: 5px;
            border-bottom-right-radius: 5px;
            color: var(--gray-700);
        }

        /* Forms */
        .form-group {
            margin-bottom: 20px;
        }

        .form-label {
            display: block;
            margin-bottom: 8px;
            font-weight: 500;
            color: var(--gray-700);
        }

        .form-input {
            width: 100%;
            padding: 10px 12px;
            border: 1px solid var(--gray-300);
            border-radius: 5px;
            font-size: 14px;
            transition: var(--transition);
        }

        .form-input:focus {
            outline: none;
            border-color: var(--secondary);
            box-shadow: 0 0 0 3px rgba(62, 146, 204, 0.1);
        }

        /* Buttons */
        .btn {
            display: inline-block;
            font-weight: 500;
            text-align: center;
            vertical-align: middle;
            cursor: pointer;
            border: 1px solid transparent;
            padding: 10px 16px;
            font-size: 14px;
            line-height: 1.5;
            border-radius: 5px;
            transition: var(--transition);
        }

        .btn-primary {
            color: white;
            background-color: var(--secondary);
            border-color: var(--secondary);
        }

        .btn-primary:hover {
            background-color: #3182b8;
            border-color: #3182b8;
        }

        .btn-success {
            color: white;
            background-color: var(--accent);
            border-color: var(--accent);
        }

        .btn-success:hover {
            background-color: #25a745;
            border-color: #25a745;
        }

        .btn-danger {
            color: white;
            background-color: var(--danger);
            border-color: var(--danger);
        }

        .btn-danger:hover {
            background-color: #c13c40;
            border-color: #c13c40;
        }

        .btn-block {
            display: block;
            width: 100%;
        }

        .btn:disabled {
            opacity: 0.65;
            pointer-events: none;
        }

        /* Alerts */
        .alert {
            padding: 12px 15px;
            margin-bottom: 15px;
            border-radius: 5px;
            border: 1px solid transparent;
            font-size: 14px;
        }

        .alert-success {
            color: #155724;
            background-color: #d4edda;
            border-color: #c3e6cb;
        }

        .alert-danger {
            color: #721c24;
            background-color: #f8d7da;
            border-color: #f5c6cb;
        }

        .alert-warning {
            color: #856404;
            background-color: #fff3cd;
            border-color: #ffeeba;
        }

        /* Settings */
        .settings-section {
            margin-bottom: 25px;
        }

        .settings-header {
            display: flex;
            align-items: center;
            margin-bottom: 15px;
            padding-bottom: 10px;
            border-bottom: 1px solid var(--gray-300);
        }

        .settings-icon {
            margin-right: 10px;
            color: var(--secondary);
        }

        .settings-title {
            font-size: 18px;
            font-weight: 500;
        }

        .settings-grid {
            display: grid;
            grid-template-columns: repeat(auto-fit, minmax(320px, 1fr));
            gap: 20px;
        }

        /* Hide sections */
        .page-section {
            display: none;
        }

        .page-section.active {
            display: block;
        }

        /* Footer */
        .dashboard-footer {
            margin-top: 30px;
            padding-top: 15px;
            border-top: 1px solid var(--gray-300);
            color: var(--gray-600);
            font-size: 14px;
            text-align: center;
        }

        /* Responsive */
        @media (max-width: 992px) {
            .dashboard-container {
                grid-template-columns: 1fr;
            }
            .sidebar {
                display: none;
            }
            .main-content {
                grid-column: 1;
            }
        }
    </style>
</head>
<body>
    <div class="dashboard-container">
        <!-- Sidebar Navigation -->
        <div class="sidebar">
            <div class="brand">
                <div class="brand-icon">⚡</div>
                <div class="brand-name">EnergyPro</div>
            </div>
            <ul class="nav-menu">
                <li class="nav-item">
                    <a href="#dashboard" class="nav-link active" onclick="showPage('dashboard')">
                        <span class="nav-icon">📊</span>
                        <span>Dashboard</span>
                    </a>
                </li>
                <li class="nav-item">
                    <a href="#account" class="nav-link" onclick="showPage('account')">
                        <span class="nav-icon">💰</span>
                        <span>Account</span>
                    </a>
                </li>
                <li class="nav-item">
                    <a href="#control" class="nav-link" onclick="showPage('control')">
                        <span class="nav-icon">🎮</span>
                        <span>Control</span>
                    </a>
                </li>
                <li class="nav-item">
                    <a href="#settings" class="nav-link" onclick="showPage('settings')">
                        <span class="nav-icon">⚙️</span>
                        <span>Settings</span>
                    </a>
                </li>
                <li class="nav-item">
                    <a href="#reports" class="nav-link" onclick="showPage('reports')">
                        <span class="nav-icon">📈</span>
                        <span>Reports</span>
                    </a>
                </li>
                <li class="nav-item">
                    <a href="#help" class="nav-link" onclick="showPage('help')">
                        <span class="nav-icon">❓</span>
                        <span>Help</span>
                    </a>
                </li>
            </ul>
        </div>

        <!-- Main Content Area -->
        <div class="main-content">
            <!-- Dashboard Section -->
            <div id="dashboard-section" class="page-section active">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">Energy Dashboard</h1>
                        <p class="page-subtitle">Real-time monitoring of your prepaid energy system</p>
                    </div>
                    <div id="update-timestamp">Last updated: --:--:--</div>
                </div>

                <!-- Metric Cards -->
                <div class="card-grid">
                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">BALANCE</h3>
                            <div class="card-icon">₹</div>
                        </div>
                        <div class="dashboard-value" id="balance">--<span class="unit">₹</span></div>
                        <div class="trend">Available credit</div>
                    </div>

                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">VOLTAGE</h3>
                            <div class="card-icon">V</div>
                        </div>
                        <div class="dashboard-value" id="voltage">--<span class="unit">V</span></div>
                        <div class="trend">Line voltage</div>
                    </div>

                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">CURRENT</h3>
                            <div class="card-icon">A</div>
                        </div>
                        <div class="dashboard-value" id="current">--<span class="unit">A</span></div>
                        <div class="trend">Line current</div>
                    </div>

                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">POWER</h3>
                            <div class="card-icon">W</div>
                        </div>
                        <div class="dashboard-value" id="power">--<span class="unit">W</span></div>
                        <div class="trend">Active power</div>
                    </div>
                </div>

                <!-- Status and Control Cards -->
                <div class="card-grid">
                    <div class="card status-card">
                        <div class="card-header">
                            <h3 class="card-title">SYSTEM STATUS</h3>
                        </div>
                        <div class="status-indicators">
                            <div class="status-item">
                                <div class="status-indicator" id="power-indicator"></div>
                                <div class="status-label">Power</div>
                                <div class="status-value" id="power-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator" id="fault-indicator"></div>
                                <div class="status-label">Fault Status</div>
                                <div class="status-value" id="fault-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator" id="theft-indicator"></div>
                                <div class="status-label">Theft Detection</div>
                                <div class="status-value" id="theft-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator status-active"></div>
                                <div class="status-label">Total Energy</div>
                                <div class="status-value" id="energy-value">-- kWh</div>
                            </div>
                        </div>
                    </div>

                    <div class="card action-card">
                        <div class="card-header">
                            <h3 class="card-title">QUICK ACTIONS</h3>
                        </div>
                        <div class="action-content">
                            <div id="power-control-alert" style="display:none;" class="alert"></div>
                            <p style="margin-bottom:15px;">Control power supply to your premises</p>
                            <div style="display:flex;gap:10px;margin-bottom:20px;">
                                <button id="power-on-btn" class="btn btn-success" onclick="setRelay(1)" style="flex:1;" disabled>Power ON</button>
                                <button id="power-off-btn" class="btn btn-danger" onclick="setRelay(0)" style="flex:1;" disabled>Power OFF</button>
                            </div>

                            <p style="margin-bottom:15px;">Quick recharge your account</p>
                            <div class="input-group">
                                <input type="number" id="quick-recharge-amount" class="form-input" value="100" min="10" step="10">
                                <div class="input-append">₹</div>
                            </div>
                            <button class="btn btn-primary btn-block" onclick="quickRecharge()">Recharge Now</button>
                        </div>
                    </div>
                </div>
            </div>

            <!-- Account Section -->
            <div id="account-section" class="page-section">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">Account Management</h1>
                        <p class="page-subtitle">Manage your prepaid account balance and transactions</p>
                    </div>
                </div>

                <div class="card-grid">
                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">ACCOUNT BALANCE</h3>
                        </div>
                        <div class="dashboard-value" id="account-balance">--<span class="unit">₹</span></div>
                        <div class="trend">Available credit</div>
                    </div>

                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">CONSUMPTION RATE</h3>
                        </div>
                        <div class="dashboard-value" id="account-balance">--<span class="unit">₹/day</span></div>
                        <div class="trend">Average daily consumption</div>
                    </div>
                </div>

                <div class="card">
                    <div class="card-header">
                        <h3 class="card-title">RECHARGE ACCOUNT</h3>
                    </div>
                    <div id="recharge-alert" style="display:none;" class="alert"></div>
                    <div class="form-group">
                        <label for="recharge-amount" class="form-label">Recharge Amount</label>
                        <div class="input-group">
                            <input type="number" id="recharge-amount" class="form-input" value="100" min="10" step="10">
                            <div class="input-append">₹</div>
                        </div>
                    </div>
                    <button class="btn btn-primary" onclick="rechargeAccount()">Process Recharge</button>
                </div>
            </div>

            <!-- Control Section -->
            <div id="control-section" class="page-section">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">System Control</h1>
                        <p class="page-subtitle">Monitor and control your energy system</p>
                    </div>
                </div>

                <div class="card-grid">
                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">POWER CONTROL</h3>
                        </div>
                        <div id="relay-control-alert" style="display:none;" class="alert"></div>
                        <p style="margin:15px 0;">Current power status: <span id="relay-control-status">Loading...</span></p>
                        <div style="display:flex;gap:10px;">
                            <button id="control-power-on-btn" class="btn btn-success" onclick="setRelay(1)" style="flex:1;" disabled>Turn Power ON</button>
                            <button id="control-power-off-btn" class="btn btn-danger" onclick="setRelay(0)" style="flex:1;" disabled>Turn Power OFF</button>
                        </div>
                    </div>

                    <div class="card">
                        <div class="card-header">
                            <h3 class="card-title">SYSTEM STATUS</h3>
                        </div>
                        <div class="status-indicators">
                            <div class="status-item">
                                <div class="status-indicator" id="control-voltage-indicator"></div>
                                <div class="status-label">Voltage Status</div>
                                <div class="status-value" id="control-voltage-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator" id="control-current-indicator"></div>
                                <div class="status-label">Current Status</div>
                                <div class="status-value" id="control-current-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator" id="control-fault-indicator"></div>
                                <div class="status-label">Fault Status</div>
                                <div class="status-value" id="control-fault-status">--</div>
                            </div>
                            <div class="status-item">
                                <div class="status-indicator" id="control-theft-indicator"></div>
                                <div class="status-label">Theft Detection</div>
                                <div class="status-value" id="control-theft-status">--</div>
                            </div>
                        </div>
                    </div>
                </div>
            </div>

            <!-- Settings Section -->
            <div id="settings-section" class="page-section">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">System Settings</h1>
                        <p class="page-subtitle">Configure thresholds and system parameters</p>
                    </div>
                </div>

                <div id="threshold-alert" style="display:none;" class="alert"></div>

                <form id="threshold-form">
                    <div class="card settings-section">
                        <div class="settings-header">
                            <span class="settings-icon">⚠️</span>
                            <h3 class="settings-title">Safety Thresholds</h3>
                        </div>
                        <div class="settings-grid">
                            <div class="form-group">
                                <label for="overVoltage" class="form-label">Over Voltage Threshold</label>
                                <div class="input-group">
                                    <input type="number" id="overVoltage" name="overVoltage" class="form-input" value="260" step="1">
                                    <div class="input-append">V</div>
                                </div>
                            </div>
                            <div class="form-group">
                                <label for="overCurrent" class="form-label">Over Current Threshold</label>
                                <div class="input-group">
                                    <input type="number" id="overCurrent" name="overCurrent" class="form-input" value="10.00" step="0.1">
                                    <div class="input-append">A</div>
                                </div>
                            </div>
                        </div>
                    </div>

                    <div class="card settings-section">
                        <div class="settings-header">
                            <span class="settings-icon">🔒</span>
                            <h3 class="settings-title">Security Settings</h3>
                        </div>
                        <div class="settings-grid">
                            <div class="form-group">
                                <label for="theftCurrent" class="form-label">Theft Detection Threshold</label>
                                <div class="input-group">
                                    <input type="number" id="theftCurrent" name="theftCurrent" class="form-input" value="0.020" step="0.001">
                                    <div class="input-append">A</div>
                                </div>
                            </div>
                        </div>
                    </div>

                    <div class="card settings-section">
                        <div class="settings-header">
                            <span class="settings-icon">💰</span>
                            <h3 class="settings-title">Billing Settings</h3>
                        </div>
                        <div class="settings-grid">
                            <div class="form-group">
                                <label for="minBalance" class="form-label">Minimum Balance Threshold</label>
                                <div class="input-group">
                                    <input type="number" id="minBalance" name="minBalance" class="form-input" value="0.00" step="1">
                                    <div class="input-append">₹</div>
                                </div>
                            </div>
                            <div class="form-group">
                                <label for="costPerKWh" class="form-label">Cost per kWh</label>
                                <div class="input-group">
                                    <input type="number" id="costPerKWh" name="costPerKWh" class="form-input" value="0.20" step="0.01">
                                    <div class="input-append">₹</div>
                                </div>
                            </div>
                        </div>
                    </div>

                    <button type="button" class="btn btn-primary" onclick="setThresholds()">Save All Settings</button>
                </form>

                 <!-- Factory Reset Button -->
                <div class="card settings-section">
                    <div class="settings-header">
                        <span class="settings-icon" style="color: var(--danger);">⚠️</span>
                        <h3 class="settings-title" style="color: var(--danger);">Factory Reset</h3>
                    </div>
                    <p style="margin-top: 10px; margin-bottom: 20px;">Reset all settings to default and clear energy data. This action is irreversible.</p>
                    <button type="button" class="btn btn-danger" onclick="factoryReset()">Factory Reset</button>
                    <div id="factory-reset-alert" style="display:none;" class="alert"></div>
                </div>

            </div>

            <!-- Reports Section (placeholder) -->
            <div id="reports-section" class="page-section">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">Reports & Analytics</h1>
                        <p class="page-subtitle">View energy consumption reports and analytics</p>
                    </div>
                </div>

                <div class="card">
                    <div class="card-header">
                        <h3 class="card-title">ENERGY CONSUMPTION</h3>
                    </div>
                    <p style="text-align:center;padding:40px 0;">Consumption reports and charts will be displayed here</p>
                </div>
            </div>

            <!-- Help Section (placeholder) -->
            <div id="help-section" class="page-section">
                <div class="page-header">
                    <div>
                        <h1 class="page-title">Help & Support</h1>
                        <p class="page-subtitle">Get help with using your prepaid energy monitor</p>
                    </div>
                </div>

                <div class="card">
                    <div class="card-header">
                        <h3 class="card-title">SUPPORT INFORMATION</h3>
                    </div>
                    <p style="text-align:center;padding:40px 0;">Help and support information will be displayed here</p>
                </div>
            </div>

            <div class="dashboard-footer">
                <p id="update-status">Last Update: --</p>
                <p>Prepaid Energy Monitor Pro © 2025</p>
            </div>
        </div>
    </div>

    <script>
        let relayState = false; // Track relay state on client-side

        // Show selected page section
        function showPage(page) {
            // Hide all page sections
            const pageSections = document.querySelectorAll('.page-section');
            pageSections.forEach(section => {
                section.classList.remove('active');
            });

            // Show selected page section
            document.getElementById(page + '-section').classList.add('active');

            // Update active nav link
            const navLinks = document.querySelectorAll('.nav-link');
            navLinks.forEach(link => {
                link.classList.remove('active');
            });
            document.querySelector(`.nav-link[href="#${page}"]`).classList.add('active');

            // Update content for specific pages
            if (page === 'account') {
                const dashboardBalance = document.getElementById('balance').textContent;
                document.getElementById('account-balance').textContent = dashboardBalance;
            }
        }

        function updateValues() {
            fetch('/data')
                .then(response => response.json())
                .then(data => {
                    // Dashboard Section Updates
                    updateDashboardValues(data);
                    updateSystemStatus(data);
                    updatePowerControlUI(data.relayState);

                    // Account Section Updates
                    updateAccountSection(data);

                    // Control Section Updates
                    updateControlSection(data);

                    // Update timestamp
                    const now = new Date();
                    document.getElementById('update-timestamp').textContent = `Last updated: ${now.toLocaleTimeString()}`;
                    document.getElementById('update-status').textContent = `Last Update: ${now.toLocaleTimeString()}`;

                })
                .catch(error => {
                    console.error('Error fetching data:', error);
                    showAlert('Connection error. Retrying...', 'warning', 'main-alert');
                    document.getElementById('update-status').textContent = 'Update Failed';
                });
        }

        function updateDashboardValues(data) {
            updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
            updateElement('voltage', data.voltage.toFixed(1) + '<span class="unit">V</span>');
            updateElement('current', data.current.toFixed(3) + '<span class="unit">A</span>');
            updateElement('power', data.power.toFixed(1) + '<span class="unit">W</span>');
            updateElement('energy-value', data.energy.toFixed(3) + ' kWh');
        }

        function updateSystemStatus(data) {
            updateStatusIndicator('power-indicator', data.relayState ? 'status-active' : 'status-inactive');
            updateElement('power-status', data.relayState ? 'ON' : 'OFF');

            updateStatusIndicator('fault-indicator', data.faultDetected ? 'status-danger' : 'status-active');
            updateElement('fault-status', data.faultDetected ? 'FAULT' : 'OK');

            updateStatusIndicator('theft-indicator', data.theftDetected ? 'status-warning' : 'status-active');
            updateElement('theft-status', data.theftDetected ? 'DETECTED' : 'OK');
        }

        function updatePowerControlUI(serverRelayState) {
            relayState = serverRelayState;
            const onButtonDashboard = document.getElementById('power-on-btn');
            const offButtonDashboard = document.getElementById('power-off-btn');
            const onButtonControl = document.getElementById('control-power-on-btn');
            const offButtonControl = document.getElementById('control-power-off-btn');

            if (relayState) {
                onButtonDashboard.disabled = true;
                offButtonDashboard.disabled = false;
                onButtonControl.disabled = true;
                offButtonControl.disabled = false;
            } else {
                onButtonDashboard.disabled = false;
                offButtonDashboard.disabled = true;
                onButtonControl.disabled = false;
                offButtonControl.disabled = true;
            }

            const relayStatusText = relayState ? 'ON' : 'OFF';
            updateElement('relay-control-status', relayStatusText);
        }


        function updateAccountSection(data) {
            updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
            // Example consumption rate calculation (needs actual logic)
            const consumptionRate = (data.energy * data.costPerKWh).toFixed(2); // Example
            updateElement('consumption-rate', consumptionRate + '<span class="unit">₹/day</span>'); // Needs proper daily calculation
        }

        function updateControlSection(data) {
            updateElement('relay-control-status', data.relayState ? 'ON' : 'OFF');

            updateStatusIndicator('control-voltage-indicator', (data.voltage < 180 || data.voltage > 250) ? 'status-warning' : 'status-active');
            updateElement('control-voltage-status', (data.voltage < 180) ? 'LOW' : (data.voltage > 250 ? 'HIGH' : 'OK'));

            updateStatusIndicator('control-current-indicator', (data.current > data.overCurrent) ? 'status-warning' : 'status-active');
            updateElement('control-current-status', (data.current > data.overCurrent) ? 'OVER' : 'OK');

            updateStatusIndicator('control-fault-indicator', data.faultDetected ? 'status-danger' : 'status-active');
            updateElement('control-fault-status', data.faultDetected ? 'FAULT' : 'OK');

            updateStatusIndicator('control-theft-indicator', data.theftDetected ? 'status-warning' : 'status-active');
            updateElement('control-theft-status', data.theftDetected ? 'DETECTED' : 'OK');

            updatePowerControlUI(data.relayState); // Keep control section buttons in sync
        }


        function updateElement(id, html) {
            const element = document.getElementById(id);
            if (element) {
                element.innerHTML = html;
            }
        }

        function updateStatusIndicator(id, className) {
            const indicator = document.getElementById(id);
            if (indicator) {
                indicator.className = 'status-indicator ' + className;
            }
        }


        function setRelay(state) {
            const onButtonDashboard = document.getElementById('power-on-btn');
            const offButtonDashboard = document.getElementById('power-off-btn');
            const onButtonControl = document.getElementById('control-power-on-btn');
            const offButtonControl = document.getElementById('control-power-off-btn');
            const alertElementDashboard = document.getElementById('power-control-alert');
            const alertElementControl = document.getElementById('relay-control-alert');

            // Disable buttons to prevent multiple clicks
            onButtonDashboard.disabled = true;
            offButtonDashboard.disabled = true;
            onButtonControl.disabled = true;
            offButtonControl.disabled = true;

            const alertElement = document.querySelector('.page-section.active').id === 'dashboard-section' ? alertElementDashboard : alertElementControl;

            showAlert('Processing power control...', 'warning', alertElement.id);

            let overrideState = 0; // Assume no override
            if (state === 0) {
                overrideState = 1; // Set override if turning off
            } else {
                overrideState = 0; // Clear override if turning on
            }

            fetch(`/setRelay?state=${state}&override=${overrideState}`, { method: 'POST' })
                .then(response => response.json())
                .then(data => {
                    if (data.success) {
                        updatePowerControlUI(state === 1); // Update UI based on requested state
                        showAlert(`Power turned ${state === 1 ? 'ON' : 'OFF'} successfully.`, 'success', alertElement.id);
                    } else {
                        showAlert('Power control failed: ' + (data.message || 'Unknown error'), 'danger', alertElement.id);
                        updatePowerControlUI(relayState); // Revert UI to previous state if failed
                    }
                     // Re-enable buttons after request completes (or fails)
                    onButtonDashboard.disabled = false;
                    offButtonDashboard.disabled = false;
                    onButtonControl.disabled = false;
                    offButtonControl.disabled = false;
                })
                .catch(error => {
                    console.error('Error controlling relay:', error);
                    showAlert('Relay control error', 'danger', alertElement.id);
                    updatePowerControlUI(relayState); // Revert UI on error
                     // Re-enable buttons even on error
                    onButtonDashboard.disabled = false;
                    offButtonDashboard.disabled = false;
                    onButtonControl.disabled = false;
                    offButtonControl.disabled = false;
                });
        }


        function rechargeAccount() {
            const amount = document.getElementById('recharge-amount').value;
            const rechargeAlert = document.getElementById('recharge-alert');
            const rechargeButton = document.querySelector('#recharge-alert + button.btn-primary, #account-section button.btn-primary');

            rechargeButton.disabled = true; // Disable recharge button during request
            showAlert('Processing recharge...', 'warning', 'recharge-alert');


            fetch(`/recharge?amount=${amount}`, { method: 'POST' })
                .then(response => response.json())
                .then(data => {
                    if (data.success) {
                        showAlert(`Recharge successful. New balance: ₹${data.balance.toFixed(2)}`, 'success', 'recharge-alert');
                        updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
                        updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
                    } else {
                        showAlert('Recharge failed. ' + (data.message || 'Please try again.'), 'danger', 'recharge-alert');
                    }
                    rechargeButton.disabled = false; // Re-enable button after request completes
                })
                .catch(error => {
                    console.error('Recharge error:', error);
                    showAlert('Recharge error. Please try again.', 'danger', 'recharge-alert');
                    rechargeButton.disabled = false; // Re-enable button even on error
                });
        }

        function quickRecharge() {
            const amount = document.getElementById('quick-recharge-amount').value;
            const rechargeAlert = document.getElementById('recharge-alert');
            const rechargeButton = document.querySelector('#dashboard-section .action-card button.btn-primary');

            rechargeButton.disabled = true;
            showAlert('Processing recharge...', 'warning', 'power-control-alert');


            fetch(`/recharge?amount=${amount}`, { method: 'POST' })
                .then(response => response.json())
                .then(data => {
                    if (data.success) {
                        showAlert(`Recharge successful. New balance: ₹${data.balance.toFixed(2)}`, 'success', 'power-control-alert');
                        updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
                        updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');
                    } else {
                        showAlert('Recharge failed. ' + (data.message || 'Please try again.'), 'danger', 'power-control-alert');
                    }
                    rechargeButton.disabled = false;
                })
                .catch(error => {
                    console.error('Recharge error:', error);
                    showAlert('Recharge error. Please try again.', 'danger', 'power-control-alert');
                    rechargeButton.disabled = false;
                });
        }


        function showAlert(message, type, alertElementId) {
            const alertDiv = document.getElementById(alertElementId);
            if(alertDiv) {
                alertDiv.textContent = message;
                alertDiv.className = `alert alert-${type}`;
                alertDiv.style.display = 'block';
                setTimeout(() => {
                    alertDiv.style.display = 'none';
                }, 5000);
            }
        }

        function setThresholds() {
            const form = document.getElementById('threshold-form');
            const formData = new FormData(form); // Use FormData to easily collect form data
            const thresholdAlert = document.getElementById('threshold-alert');
            const saveButton = document.querySelector('#threshold-form button.btn-primary'); // Select save button
            const data = {};
            formData.forEach((value, key) => {
                data[key] = parseFloat(value); // Convert string values from form to floats
            });

            saveButton.disabled = true; // Disable save button during request
            showAlert('Saving settings...', 'warning', 'threshold-alert');


            fetch('/setThresholds', {
                method: 'POST',
                headers: {
                    'Content-Type': 'application/json' // Set content type to JSON
                },
                body: JSON.stringify(data) // Send form data as JSON
            })
            .then(response => response.json())
            .then(responseData => {
                if (responseData.success) {
                    showAlert('Settings updated successfully.', 'success', 'threshold-alert');
                    // Optionally update displayed threshold values on the page if you wish
                } else {
                    showAlert('Failed to update settings: ' + (responseData.message || 'Unknown error'), 'danger', 'threshold-alert');
                }
                saveButton.disabled = false; // Re-enable button after request completes
            })
            .catch(error => {
                console.error('Error setting thresholds:', error);
                showAlert('Error updating settings. Please try again.', 'danger', 'threshold-alert');
                saveButton.disabled = false; // Re-enable button even on error
            });
        }

        function factoryReset() {
            const resetAlert = document.getElementById('factory-reset-alert');
            const resetButton = document.querySelector('#settings-section button.btn-danger');

            resetButton.disabled = true;
            showAlert('Performing factory reset...', 'warning', 'factory-reset-alert');

            fetch('/factoryReset', { method: 'POST' })
                .then(response => response.json())
                .then(data => {
                    if (data.success) {
                        showAlert('Factory reset successful. System restarting...', 'success', 'factory-reset-alert');
                        setTimeout(() => {
                            window.location.href = '/login'; // Redirect to login page after reset
                        }, 3000); // Wait 3 seconds before redirecting and restarting ESP
                    } else {
                        showAlert('Factory reset failed: ' + (data.message || 'Unknown error'), 'danger', 'factory-reset-alert');
                    }
                    resetButton.disabled = false;
                })
                .catch(error => {
                    console.error('Factory reset error:', error);
                    showAlert('Factory reset error. Please try again.', 'danger', 'factory-reset-alert');
                    resetButton.disabled = false;
                });
        }


        // Initial update and set interval
        updateValues();
        setInterval(updateValues, 3000); // Update every 3 seconds

        // Set initial page to dashboard
        showPage('dashboard');
    </script>
</body>
</html>
)rawliteral";


// Login page HTML (No changes needed unless further UI/UX improvements are desired)
const char login_html[] PROGMEM = R"rawliteral(
<!DOCTYPE HTML>
<html lang="en">
<head>
  <title>Login - ESP32 Prepaid Energy Monitor</title>
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.4.0/css/all.min.css">
  <style>
    :root {
      --primary-color: #3498db;
      --secondary-color: #2c3e50;
      --background-color: #f5f7fa;
      --card-background: #ffffff;
      --text-color: #333333;
      --text-light: #7f8c8d;
      --shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
      --transition: all 0.3s ease;
    }

body {
  font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
  background-color: var(--background-color);
  margin: 0;
  padding: 0;
  color: var(--text-color);
  line-height: 1.6;
}

.login-container {
  max-width: 400px;
  margin: 100px auto;
  background: var(--card-background);
  padding: 30px;
  border-radius: 8px;
  box-shadow: var(--shadow);
}

.login-container h2 {
  text-align: center;
  color: var(--secondary-color);
  margin-bottom: 30px;
  display: flex;
  align-items: center;
  justify-content: center;
}

.login-container h2 i {
  margin-right: 10px;
  color: var(--primary-color);
}

.form-group {
  margin-bottom: 20px;
}

.form-group label {
  display: block;
  margin-bottom: 5px;
  font-weight: bold;
  color: var(--secondary-color);
}

.form-group input {
  width: 100%;
  padding: 10px;
  border: 1px solid #ddd;
  border-radius: 4px;
  font-size: 16px;
}

.button {
  background: linear-gradient(to right, var(--primary-color), var(--secondary-color));
  color: white;
  border: none;
  padding: 12px 24px;
  border-radius: 4px;
  cursor: pointer;
  font-size: 16px;
  font-weight: bold;
  transition: var(--transition);
  display: inline-flex;
  align-items: center;
  width: 100%;
  justify-content: center;
}

.button i {
  margin-right: 8px;
}

.button:hover {
  transform: translateY(-2px);
  box-shadow: 0 6px 12px rgba(0, 0, 0, 0.15);
}

.alert {
  padding: 10px 15px;
  border-radius: 4px;
  margin-bottom: 15px;
  font-size: 14px;
}

.alert-danger {
  background-color: #f8d7da;
  color: #721c24;
  border: 1px solid #f5c6cb;
}
  </style>
</head>
<body>
  <div class="login-container">
    <h2><i class="fas fa-lock"></i> Login</h2>

<div id="error-message" class="alert alert-danger" style="display: none;">
  Invalid username or password
</div>

<form action="/login" method="post">
  <div class="form-group">
    <label for="username">Username</label>
    <input type="text" id="username" name="username" required>
  </div>

  <div class="form-group">
    <label for="password">Password</label>
    <input type="password" id="password" name="password" required>
  </div>

  <button type="submit" class="button">
    <i class="fas fa-sign-in-alt"></i> Login
  </button>
</form>
  </div>

  <script>// Check for error parameter in URL
    const urlParams = new URLSearchParams(window.location.search);
    if (urlParams.has('error')) {
      document.getElementById('error-message').style.display = 'block';
    }
  </script>

</body>
</html>
)rawliteral";


void setup() {
// Initialize serial communication
Serial.begin(115200);
delay(500);

// Initialize EEPROM
EEPROM.begin(EEPROM_SIZE);

// Initialize relay pin
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, relayState ? HIGH : LOW);

// Initialize Button Pin
pinMode(BUTTON_PIN, INPUT_PULLUP);

// Initialize TFT display
tft.initR(INITR_BLACKTAB);
tft.setRotation(1); // Adjust rotation if needed for your display
tft.fillScreen(BLACK);
tft.setTextWrap(false);

// Display startup sequence
displayStartupSequence();

// Load saved balance and thresholds from EEPROM
loadBalance();
loadThresholds();

// Configure WiFi (Simplified)
configureWiFi();

// Store IP address as string
if (WiFi.status() == WL_CONNECTED) {
    ipAddressStr = WiFi.localIP().toString();
    showNotification("IP: " + ipAddressStr, GREEN, 5000);
} else {
    showNotification("WiFi Failed to connect", RED, 5000);
}

// Set up web server routes
server.on("/", HTTP_GET, handleRoot);
server.on("/login", HTTP_GET,  [](){
    server.send(200, "text/html", login_html);
});
server.on("/login", HTTP_POST, handleLogin);
server.on("/data", HTTP_GET, handleData);
server.on("/recharge", HTTP_POST, handleRecharge);
server.on("/reset", HTTP_POST, handleReset);
server.on("/setRelay", HTTP_POST, handleSetRelay);
server.on("/setThresholds", HTTP_POST, handleSetThresholds); // New handler for thresholds
server.on("/factoryReset", HTTP_POST, handleFactoryReset); // New handler for factory reset
server.onNotFound(handleNotFound);

// Start web server
server.begin();

// Show notification
showNotification("System Ready", GREEN, 3000);

}

void loop() {
// Handle web server client requests
server.handleClient();

// Read PZEM data at specified intervals
if (millis() - lastReadTime >= measurementInterval) {
    readPzemData();
    lastReadTime = millis();

    // Check for faults and theft
    checkFaultsAndTheft();

    // Control relay
    controlRelay();
}

// Update balance based on energy usage
if (millis() - balanceUpdateTime >= BALANCE_UPDATE_INTERVAL) {
    updateBalance();
    balanceUpdateTime = millis();
    saveBalance();
}

// **Button Handling for Page Change and Manual Relay Override**
int reading = digitalRead(BUTTON_PIN);
bool currentButtonState = (reading == LOW); // Button is active low

if (currentButtonState && !lastButtonState) { // Button pressed
    if (millis() - lastButtonPress > debounceDelay) {
        lastButtonPress = millis();
        buttonPressStartTime = millis();
        manualRelayControlActive = true; // Start checking for long press
    }
} else if (!currentButtonState && lastButtonState) { // Button released
    if (manualRelayControlActive) {
        if (millis() - buttonPressStartTime >= 1000) { // Long press detected (3 seconds)
            manualOverride = !manualOverride; // Toggle manual override state
            relayState = !relayState; // Toggle relay state
            digitalWrite(RELAY_PIN, relayState ? LOW : HIGH);
            showNotification(relayState ? "Manual Relay ON" : "Manual Relay OFF", YELLOW);
            // Web server will reflect state on next /data request
        } else {
            displayPage = (displayPage + 1) % 2; // Toggle page on short press
            pageChangeTime = millis();
            layoutDrawn = false; // Redraw layout for new page if needed
        }
        manualRelayControlActive = false;
    }
}
lastButtonState = currentButtonState;


// Update display with page switching
if (millis() - screenRefreshTime >= SCREEN_REFRESH_INTERVAL) {
    screenRefreshTime = millis();
    if (!layoutDrawn) {
        drawLayout(); // Draw common layout elements (title, separators) - Draw only once per page change
        layoutDrawn = true;
    }

    if (millis() - pageChangeTime >= PAGE_INTERVAL) {
       // Automatic page switch removed due to button implementation, keep it on current page until button press
       // displayPage = (displayPage + 1) % 2; // Switch between 2 pages (0 and 1) - Removed Automatic switching
       pageChangeTime = millis(); //reset page change timer, even if not auto-switching now
    }

    updateDisplayValues(); // Update dynamic values on the current page - Update only values, not full page redraw
}

// Clear notification if display time has elapsed
if (notificationEndTime > 0 && millis() >= notificationEndTime) {
    clearNotification();
}

// Periodic notifications every 5 minutes
if (millis() - lastNotificationTime >= NOTIFICATION_INTERVAL) {
    if (faultDetected) {
        showNotification("Fault Detected! Check System.", RED);
    } else if (theftDetected) {
        showNotification("Theft Detected! Investigate.", RED);
    } else if (balance <= minimumBalance) { // Use variable threshold
        showNotification("Low Balance! Recharge Soon.", YELLOW);
    } else if (!pzemConnected) {
        showNotification("PZEM Disconnected!", RED);
    } else if (WiFi.status() != WL_CONNECTED) {
        showNotification("WiFi Disconnected!", RED);
    }
    // Add other conditions for different types of notifications as needed.

    lastNotificationTime = millis();
}

// Check WiFi connection periodically and attempt to reconnect
checkWiFiConnection();

}

// Function to check WiFi connection and reconnect if necessary
void checkWiFiConnection() {
    if (millis() - lastWifiCheckTime >= WIFI_RECHECK_INTERVAL) {
        lastWifiCheckTime = millis();
        if (WiFi.status() != WL_CONNECTED) {
            Serial.println("WiFi Disconnected. Attempting reconnection...");
            WiFi.reconnect();
            showNotification("WiFi Disconnected! Reconnecting...", YELLOW);
            // Optionally add a timeout for reconnection attempts to avoid indefinite blocking
        } else if (WiFi.status() == WL_CONNECTED && currentNotification.startsWith("WiFi Disconnected!")) {
            showNotification("WiFi Reconnected!", GREEN);
        }
    }
}


// Read data from PZEM sensor
void readPzemData() {
readings.voltage = pzem.voltage();
readings.current = pzem.current();
readings.power = pzem.power();
readings.energy = pzem.energy();

// Determine if reading is valid (voltage is used as indicator)
readings.isValid = !(isnan(readings.voltage) || readings.voltage < 1.0);

// Update connection status
bool newConnectionStatus = readings.isValid;
if (pzemConnected != newConnectionStatus) {
    pzemConnected = newConnectionStatus;
    if (pzemConnected) {
        showNotification("PZEM Connected", GREEN);
    } else {
        showNotification("PZEM Disconnected", RED);
    }
}

// Debug output
printDebugInfo("PZEM Reading", readings.isValid);

}

// Draw common layout elements (Title, separators, static labels) - Reduced redraw to title and separator only
void drawLayout() {
    tft.fillScreen(BLACK); // Clear the whole screen only on page change for clean transition
    tft.setTextSize(1);

    // Title Bar - Compact for 1.8 inch display
    setTextProperties(tft, YELLOW);
    tft.setCursor(2, 2);
    tft.print("ENERGY METER");
    tft.drawFastHLine(0, 14, tft.width(), BLUE); // Header bar background

    // Page Content Area (below title bar)
    if (displayPage == 0) {
        drawLiveDataPage(); // Draw Live Data Page elements
    } else if (displayPage == 1) {
        drawAlertsPage();  // Draw Alerts Page elements
    }
    layoutDrawn = true; // Ensure layout is marked as drawn after drawing page specific elements
}

// Constants for layout spacing and text positions - Optimized for 1.8 inch display
const int HEADER_HEIGHT = 14;
const int BOX_HEIGHT = 30;
const int BOX_ROUND_RADIUS = 3;
const int BOX_VERTICAL_START = HEADER_HEIGHT + 3;
const int ROW_SPACING = BOX_HEIGHT + 2;
const int LABEL_TEXT_Y_OFFSET = 3;
const int VALUE_TEXT_Y_OFFSET = 18;
const int FOOTER_AREA_HEIGHT = 20;
const int FOOTER_TEXT_Y_OFFSET = 6;


// Draw Live Data Page - Improved Layout with constants
void drawLiveDataPage() {
  // Draw header bar
  tft.fillRect(0, 0, tft.width(), HEADER_HEIGHT, BLUE);
  tft.setTextSize(1);
  setTextProperties(tft, WHITE);
  tft.setCursor(5, 4);
  tft.print("ESP32 PREPAID METER");

  // Row 1: Voltage & Current
  tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 0), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);
  tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 0), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

  // Row 2: Power & Energy
  tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 1), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);
  tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 1), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

  // Row 3: Balance & Status (Replaced Frequency & PF)
  tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 2), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);
  tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 2), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

  // Draw labels for each row
  tft.setTextSize(1);
  setTextProperties(tft, CYAN);

  // Row 1 labels
  tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 0) + LABEL_TEXT_Y_OFFSET);
  tft.print("VOLTAGE");
  tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 0) + LABEL_TEXT_Y_OFFSET);
  tft.print("CURRENT");

  // Row 2 labels
  tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 1) + LABEL_TEXT_Y_OFFSET);
  tft.print("POWER");
  tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 1) + LABEL_TEXT_Y_OFFSET);
  tft.print("ENERGY");

  // Row 3 labels (Balance & Status)
  tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 2) + LABEL_TEXT_Y_OFFSET);
  tft.print("BALANCE");
  tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 2) + LABEL_TEXT_Y_OFFSET);
  tft.print("STATUS");

  // Draw notification area and IP address at bottom
  tft.drawRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, WHITE);

  // Display IP address in footer
  tft.setTextSize(1);
  setTextProperties(tft, GREEN);
  tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);
  tft.print("IP: ");

  // Use stored IP address string
  if (WiFi.status() == WL_CONNECTED) {
    tft.print(ipAddressStr);
  } else {
    setTextProperties(tft, RED);
    tft.print("Not Connected");
     setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw
  }

    // Reset all text buffers when drawing a new page
    memset(lastVoltageText, 0, sizeof(lastVoltageText));
    memset(lastCurrentText, 0, sizeof(lastCurrentText));
    memset(lastPowerText, 0, sizeof(lastPowerText));
    memset(lastEnergyText, 0, sizeof(lastEnergyText));
    memset(lastBalanceText, 0, sizeof(lastBalanceText));
    memset(lastStatusText, 0, sizeof(lastStatusText));
}

void drawAlertsPage() {
    tft.fillScreen(BLACK);
    tft.setTextSize(2);
    setTextProperties(tft, YELLOW);

    tft.setCursor(5, 10);
    tft.print("ALERTS");
    tft.drawFastHLine(0, 30, tft.width(), DARKGRAY);

    setTextProperties(tft, CYAN);
    int y_offset = 40;

    tft.setTextSize(1);
    setTextProperties(tft, CYAN); // Set color for labels on Alerts page
    tft.setCursor(5, 40);
    tft.print("Over Voltage Limit:");
    tft.setCursor(5, 55);
    tft.print("Over Current Limit:");
    tft.setCursor(5, 70);
    tft.print("Theft Current:");
    tft.setCursor(5, 85);
    tft.print("Min Balance:");


    // Footer with smaller text
    tft.setTextSize(1);
    setTextProperties(tft, DARKGRAY);
    tft.setCursor(5, tft.height() - 10);
    tft.print("2/2");

    // Reset alert text buffers
    memset(lastFaultText, 0, sizeof(lastFaultText));
    memset(lastTheftText, 0, sizeof(lastTheftText));
}

void updateDisplayValues() {
    if (displayPage == 0) { // Live Data Page
        int x_value_start_left = 5;
        int x_value_start_right = tft.width() / 2 + 5;
        char newText[20]; // Increased buffer size for values with units

        tft.setTextSize(1);
        setTextProperties(tft, WHITE);

        // Row 1: Voltage
        tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET);
        if (readings.isValid) {
            sprintf(newText, "%.1fV", readings.voltage);
            tft.print(newText);
            strcpy(lastVoltageText, newText);
        } else {
            tft.print("0.0V"); // Display 0.0V when no reading
            strcpy(lastVoltageText, "0.0V");
        }


        // Row 1: Current
        tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET);
        if (readings.isValid) {
            sprintf(newText, "%.3fA", readings.current);
            tft.print(newText);
            strcpy(lastCurrentText, newText);
        } else {
            tft.print("0.000A"); // Display 0.000A when no reading
            strcpy(lastCurrentText, "0.000A");
        }

        // Row 2: Power
        tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET);
        if (readings.isValid) {
            sprintf(newText, "%.1fW", readings.power);
            tft.print(newText);
            strcpy(lastPowerText, newText);
        } else {
            tft.print("0.0W"); // Display 0.0W when no reading
            strcpy(lastPowerText, "0.0W");
        }


        // Row 2: Energy
        tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET);
        if (readings.isValid) {
            sprintf(newText, "%.2fkWh", readings.energy);
            tft.print(newText);
            strcpy(lastEnergyText, newText);
        } else {
            tft.print("0.00kWh"); // Display 0.00kWh when no reading
            strcpy(lastEnergyText, "0.00kWh");
        }


        // Row 3: Balance
        tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET);
        sprintf(newText, "%.2f Rs", balance);
        tft.print(newText);
        strcpy(lastBalanceText, newText);


        // Row 3: Status
        tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);
        tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET);

        if (balance <= minimumBalance) {
            setTextProperties(tft, RED);
            strcpy(newText, "LOW BAL");
        } else if (faultDetected) {
            setTextProperties(tft, RED);
            strcpy(newText, "FAULT");
        } else if (theftDetected) {
            setTextProperties(tft, ORANGE); // Use Orange for theft
            strcpy(newText, "THEFT");
        } else if (!pzemConnected) {
            setTextProperties(tft, RED);
            strcpy(newText, "PZEM OFF");
        }
         else if (relayState) {
            setTextProperties(tft, GREEN);
            strcpy(newText, "ACTIVE");
        } else {
            setTextProperties(tft, DARKGRAY); // Use dark gray for OFF status
            strcpy(newText, "OFF");
        }
        tft.print(newText);
        strcpy(lastStatusText, newText);
        setTextProperties(tft, WHITE); // Reset text color to white for other values

    } else if (displayPage == 1) { // Alerts Page
        tft.setTextSize(1);
        setTextProperties(tft, WHITE);
        int x_value_start = 130; // Adjusted x position for values on alerts page

        char newText[20];
        setTextProperties(tft, WHITE); // Set color for threshold values on Alerts page

        tft.fillRect(x_value_start, 40, tft.width() - x_value_start - 5, 8, BLACK);
        tft.setCursor(x_value_start, 40);
        sprintf(newText, "%.1fV", overVoltageThreshold);
        tft.print(newText);

        tft.fillRect(x_value_start, 55, tft.width() - x_value_start - 5, 8, BLACK);
        tft.setCursor(x_value_start, 55);
        sprintf(newText, "%.2fA", overCurrentThreshold);
        tft.print(newText);

        tft.fillRect(x_value_start, 70, tft.width() - x_value_start - 5, 8, BLACK);
        tft.setCursor(x_value_start, 70);
        sprintf(newText, "%.3fA", theftCurrentThreshold);
        tft.print(newText);

        tft.fillRect(x_value_start, 85, tft.width() - x_value_start - 5, 8, BLACK);
        tft.setCursor(x_value_start, 85);
        sprintf(newText, "%.2f Rs", minimumBalance);
        tft.print(newText);
    }

    // Notification area - Moved higher for better visibility
    static unsigned long lastNotificationUpdate = 0;
    static char lastNotificationText[30] = "";
    int notificationY = 113 + FOOTER_TEXT_Y_OFFSET; // Adjusted notification Y

    if (notificationEndTime > 0 && millis() < notificationEndTime) {
        if (strcmp(currentNotification.c_str(), lastNotificationText) != 0 ||
            millis() - lastNotificationUpdate > 500) {

            tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area
            tft.setTextSize(1);
            setTextProperties(tft, notificationColor);
            tft.setCursor(2, notificationY);
            tft.print(currentNotification);

            strcpy(lastNotificationText, currentNotification.c_str());
            lastNotificationUpdate = millis();
        }
    } else if (notificationEndTime > 0 && millis() >= notificationEndTime) {
        // Clear notification when expired
        tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area
        notificationEndTime = 0;
        lastNotificationText[0] = '\0';
        // Redraw IP address after clearing notification
        setTextProperties(tft, GREEN);
        tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);
        tft.print("IP: ");
        if (WiFi.status() == WL_CONNECTED) {
            tft.print(ipAddressStr);
        } else {
            setTextProperties(tft, RED);
            tft.print("Not Connected");
            setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw
        }
    }
}

void showNotification(const String& message, uint16_t color, unsigned long duration) {
    currentNotification = message;
    notificationColor = color;
    notificationEndTime = millis() + duration;

    // Notification area positioned higher
    int notificationY = 113 + FOOTER_TEXT_Y_OFFSET;
    tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area
    tft.setTextSize(1);
    setTextProperties(tft, color);
    tft.setCursor(2, notificationY);
    tft.print(message);
}

void clearNotification() {
    // Clear the notification area at its new position
    tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK);
    notificationEndTime = 0;
    // Redraw IP address after clearing notification
    setTextProperties(tft, GREEN);
    tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);
    tft.print("IP: ");
    if (WiFi.status() == WL_CONNECTED) {
        tft.print(ipAddressStr);
    } else {
        setTextProperties(tft, RED);
        tft.print("Not Connected");
        setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw
    }
}

void displayStartupSequence() {
    tft.fillScreen(BLACK);
    tft.setTextSize(2); // Larger text for startup
    setTextProperties(tft, GREEN);

    // Center the title text
    int titleX = (tft.width() - 12*11)/2; // Approximate centering for "ENERGY METER"
    tft.setCursor(titleX > 0 ? titleX : 0, 10);
    tft.print("ENERGY METER");

    tft.setTextSize(1); // Smaller text for status messages
    setTextProperties(tft, WHITE); // Set color for status text to white
    tft.setCursor(5, 35);
    tft.print("Booting...");

    // Progress bar sized appropriately for display
    int barWidth = tft.width() - 10;
    tft.drawRect(5, 45, barWidth, 8, WHITE);

    for (int i = 0; i < barWidth - 4; i += 2) {
        tft.fillRect(7, 47, i, 4, BLUE);
        delay(25);  // Faster animation
    }

    // Status messages positioned better
    clearTextArea(5, 60, tft.width() - 10, 8);
    setTextProperties(tft, WHITE); // Ensure color is set before each text print
    tft.setCursor(5, 60);
    tft.print("Init sensors...");
    delay(300);

    clearTextArea(5, 60, tft.width() - 10, 8);
    setTextProperties(tft, WHITE);
    tft.setCursor(5, 60);
    tft.print("Web server...");
    delay(300);

    clearTextArea(5, 60, tft.width() - 10, 8);
    setTextProperties(tft, WHITE);
    tft.setCursor(5, 60);
    tft.print("System ready!");
    delay(500);
}

void configureWiFi() {
    Serial.println("Connecting to WiFi...");
    WiFi.begin(ssid, password);

    tft.fillScreen(BLACK);
    tft.setTextSize(1); // Smaller text to fit more info
    setTextProperties(tft, WHITE);
    tft.setCursor(5, 10);
    tft.print("Connecting WiFi...");

    // Add a small animation during connection
    int dotCount = 0;
    int timeout = 0;

    while (WiFi.status() != WL_CONNECTED && timeout < 30) {
        delay(1000);
        Serial.print(".");

        // Clear animation line and redraw
        tft.fillRect(5, 25, tft.width() - 10, 8, BLACK);
        setTextProperties(tft, WHITE); // Set color before printing dots
        tft.setCursor(5, 25);
        for(int i = 0; i < dotCount; i++) {
            tft.print(".");
        }

        dotCount = (dotCount + 1) % 4; // Cycle between 0-3 dots
        timeout++;
    }

    if (WiFi.status() == WL_CONNECTED) {
        tft.fillRect(5, 25, tft.width() - 10, 16, BLACK);
        setTextProperties(tft, WHITE);
        tft.setCursor(5, 25);
        tft.print("Connected!");
        tft.setCursor(5, 40);
        tft.print(WiFi.localIP().toString());

        Serial.println("\nWiFi Connected!");
        Serial.print("IP address: ");
        Serial.println(WiFi.localIP());
    } else {
        tft.fillRect(5, 25, tft.width() - 10, 8, BLACK);
        setTextProperties(tft, RED);
        tft.setCursor(5, 25);
        tft.print("Connection Failed!");

        Serial.println("\nWiFi Connection Failed!");
    }

    delay(1500); // Show the result briefly
}
// Save balance to EEPROM - No changes needed, looks good
void saveBalance() {
EEPROM.writeFloat(BALANCE_ADDR, balance);
EEPROM.writeFloat(ENERGY_ADDR, lastEnergy);
EEPROM.commit();
printDebugInfo("Save Balance", true);
}

// Load balance from EEPROM - No changes needed, looks good
void loadBalance() {
balance = EEPROM.readFloat(BALANCE_ADDR);
lastEnergy = EEPROM.readFloat(ENERGY_ADDR);

// Check if values are valid (not NaN or negative)
if (isnan(balance) || balance < 0) {
    balance = 0.0;
}

if (isnan(lastEnergy) || lastEnergy < 0) {
    lastEnergy = 0.0;
}

printDebugInfo("Load Balance", true);

}

// Save thresholds to EEPROM - No changes needed, looks good
void saveThresholds() {
EEPROM.writeFloat(OVER_VOLTAGE_THRESHOLD_ADDR, overVoltageThreshold);
EEPROM.writeFloat(OVER_CURRENT_THRESHOLD_ADDR, overCurrentThreshold);
EEPROM.writeFloat(THEFT_CURRENT_THRESHOLD_ADDR, theftCurrentThreshold);
EEPROM.writeFloat(MINIMUM_BALANCE_ADDR, minimumBalance);
EEPROM.writeFloat(COST_PER_KWH_ADDR, costPerKWh);
EEPROM.commit();
printDebugInfo("Save Thresholds", true);
}

// Load thresholds from EEPROM - No changes needed, looks good
void loadThresholds() {
overVoltageThreshold = EEPROM.readFloat(OVER_VOLTAGE_THRESHOLD_ADDR);
overCurrentThreshold = EEPROM.readFloat(OVER_CURRENT_THRESHOLD_ADDR);
theftCurrentThreshold = EEPROM.readFloat(THEFT_CURRENT_THRESHOLD_ADDR);
minimumBalance = EEPROM.readFloat(MINIMUM_BALANCE_ADDR);
costPerKWh = EEPROM.readFloat(COST_PER_KWH_ADDR); // Corrected usage - making sure macro is spelled correctly

// Check if values are valid (not NaN or negative/zero where appropriate)
if (isnan(overVoltageThreshold) || overVoltageThreshold <= 0) {
    overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;
}
if (isnan(overCurrentThreshold) || overCurrentThreshold <= 0) {
    overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;
}
if (isnan(theftCurrentThreshold) || theftCurrentThreshold < 0) {
    theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;
}
if (isnan(minimumBalance) ) { // Minimum balance can be negative if you want to allow credit
    minimumBalance = DEFAULT_MINIMUM_BALANCE;
}
 if (isnan(costPerKWh) || costPerKWh <= 0) {
    costPerKWh = DEFAULT_COST_PER_KWH;
}
printDebugInfo("Load Thresholds", true);

}

// Update balance based on energy consumption - No changes needed, looks good
void updateBalance() {
if (!readings.isValid) return;

float energyUsed = readings.energy - lastEnergy;

// If energy counter was reset or first reading
if (energyUsed < 0) {
    energyUsed = readings.energy;
}

// Calculate cost
float cost = energyUsed * costPerKWh;

// Deduct from balance if relay is on and not manually overridden off
if (relayState && !manualOverride && cost > 0) {
    balance -= cost;

    // Ensure balance doesn't go negative
    if (balance < 0) {
        balance = 0;
    }

    printDebugInfo("Balance Updated", true);
}

// Update last energy reading
lastEnergy = readings.energy;

}

// Check for electrical faults and theft - No changes needed, looks good
void checkFaultsAndTheft() {
if (!readings.isValid) return;

// Check for faults (over voltage or over current)
bool newFaultState = (readings.voltage > overVoltageThreshold ||
                      readings.current > overCurrentThreshold);

// Only show notification if fault state changes
if (newFaultState != faultDetected) {
    faultDetected = newFaultState;
    if (faultDetected) {
        showNotification("Fault Detected!", RED);
    } else {
        showNotification("Fault Cleared", GREEN);
    }
}

// Check for theft (current flowing when relay is off)
bool newTheftState = (!relayState && readings.current > theftCurrentThreshold);

// Only show notification if theft state changes
if (newTheftState != theftDetected) {
    theftDetected = newTheftState;
    if (theftDetected) {
        showNotification("Theft Detected!", RED);
    } else {
        showNotification("Theft Alert Cleared", GREEN);
    }
}

}

// Control relay based on balance and faults - Modified to respect manual override
void controlRelay() {
if (manualOverride) return; // Do not auto-control relay if manually overridden

bool shouldBeOn = (balance > minimumBalance && !faultDetected);

// Only change relay state if needed
if (relayState != shouldBeOn) {
    relayState = shouldBeOn;
    digitalWrite(RELAY_PIN, relayState ? LOW : HIGH);

    if (relayState) {
        showNotification("Power Enabled", GREEN);
    } else {
        showNotification("Power Disabled", RED);
    }
}

}

// Print debug information to serial - No changes needed, looks good
void printDebugInfo(const char* action, bool success) {
Serial.print("[");
Serial.print(action);
Serial.print("] ");
if (success) {
Serial.println("Success");
} else {
Serial.println("Failed");
}
}

// Web server handlers - No changes needed, looks good
void handleRoot() {
if (!server.authenticate(admin_username, admin_password)) {
return server.requestAuthentication();
}
server.send(200, "text/html", index_html);
}

void handleLogin() {
if (server.method() != HTTP_POST) {
server.send(405, "text/plain", "Method Not Allowed");
return;
}

if (server.arg("username") == admin_username &&
    server.arg("password") == admin_password) {
    server.sendHeader("Location", "/");
    server.send(303);
} else {
    server.sendHeader("Location", "/login?error=1");
    server.send(303);
}

}

void handleRecharge() {
if (!server.authenticate(admin_username, admin_password)) {
server.send(401, "text/plain", "Unauthorized");
return;
}

if (server.method() != HTTP_POST) {
    server.send(405, "text/plain", "Method Not Allowed");
    return;
}

if (server.hasArg("amount")) {
    float amount = server.arg("amount").toFloat();
    if (amount > 0) {
        balance += amount;
        saveBalance();

        // Create JSON response
        String response = "{\"success\":true,\"balance\":" + String(balance, 2) + "}";
        server.send(200, "application/json", response);

        showNotification("Recharged: Rs" + String(amount, 2), GREEN);
        return;
    }
}

server.send(400, "application/json", "{\"success\":false,\"message\":\"Invalid amount\"}");

}

void handleData() {
if (!server.authenticate(admin_username, admin_password)) {
server.send(401, "text/plain", "Unauthorized");
return;
}

// Create JSON document
DynamicJsonDocument doc(1024);

// Add readings
doc["isValid"] = readings.isValid;
doc["voltage"] = readings.voltage;
doc["current"] = readings.current;
doc["power"] = readings.power;
doc["energy"] = readings.energy;

// If reading is invalid, send 0 values for web dashboard to clear values
if (!readings.isValid) {
    doc["voltage"] = 0.0;
    doc["current"] = 0.0;
    doc["power"] = 0.0;
    doc["energy"] = 0.0;
}

// Add status information
doc["balance"] = balance;
doc["relayState"] = relayState;
doc["faultDetected"] = faultDetected;
doc["theftDetected"] = theftDetected;
doc["overVoltageThreshold"] = overVoltageThreshold;
doc["overCurrentThreshold"] = overCurrentThreshold;
doc["theftCurrentThreshold"] = theftCurrentThreshold;
doc["minimumBalance"] = minimumBalance;
doc["costPerKWh"] = costPerKWh;
doc["manualOverride"] = manualOverride; // Send manual override status


// Serialize JSON to string
String response;
serializeJson(doc, response);

server.send(200, "application/json", response);

}

void handleReset() {
if (!server.authenticate(admin_username, admin_password)) {
server.send(401, "text/plain", "Unauthorized");
return;
}

if (server.method() != HTTP_POST) {
    server.send(405, "text/plain", "Method Not Allowed");
    return;
}

// Reset energy counter on PZEM
bool success = pzem.resetEnergy();

// Reset stored energy value
lastEnergy = 0.0;
saveBalance();

String response = "{\"success\":" + String(success ? "true" : "false") + "}";
server.send(200, "application/json", response);

if (success) {
    showNotification("Energy Counter Reset", YELLOW);
} else {
    showNotification("Reset Failed", RED);
}

}

void handleSetRelay() {
if (!server.authenticate(admin_username, admin_password)) {
server.send(401, "text/plain", "Unauthorized");
return;
}

if (server.method() != HTTP_POST) {
    server.send(405, "text/plain", "Method Not Allowed");
    return;
}

if (server.hasArg("state") && server.hasArg("override")) {
    int state = server.arg("state").toInt();
    int override_manual = server.arg("override").toInt();
    bool success = false;

    if (state == 0) {
        relayState = false;
        digitalWrite(RELAY_PIN, HIGH);
        success = true;
        showNotification("Power Off", RED);
        manualOverride = (override_manual == 1); // Set manual override based on parameter

    } else if (state == 1) {
        if (balance > minimumBalance && !faultDetected) {
            relayState = true;
            digitalWrite(RELAY_PIN, LOW);
            success = true;
            showNotification("Power On", GREEN);
            manualOverride = false; // Clear manual override when turned on manually or automatically
        }
    }

    String response = "{\"success\":" + String(success ? "true" : "false") + "}";
    server.send(200, "application/json", response);
    return;
}

server.send(400, "application/json", "{\"success\":false,\"message\":\"Missing state parameter\"}");

}

void handleSetThresholds() {
if (!server.authenticate(admin_username, admin_password)) {
server.send(401, "text/plain", "Unauthorized");
return;
}

if (server.method() != HTTP_POST) {
    server.send(405, "text/plain", "Method Not Allowed");
    return;
}

DynamicJsonDocument doc(512); // Adjust size as needed
DeserializationError error = deserializeJson(doc, server.arg("plain"));

if (error) {
    Serial.print(F("deserializeJson() failed: "));
    Serial.println(error.f_str());
    server.send(400, "application/json", "{\"success\":false,\"message\":\"Invalid JSON\"}");
    return;
}

if (doc.containsKey("overVoltage") && doc.containsKey("overCurrent") && doc.containsKey("theftCurrent") && doc.containsKey("minBalance") && doc.containsKey("costPerKWh")) {
    overVoltageThreshold = doc["overVoltage"].as<float>();
    overCurrentThreshold = doc["overCurrent"].as<float>();
    theftCurrentThreshold = doc["theftCurrent"].as<float>();
    minimumBalance = doc["minBalance"].as<float>();
    costPerKWh = doc["costPerKWh"].as<float>();

    saveThresholds(); // Save new thresholds to EEPROM

    String response = "{\"success\":true}";
    server.send(200, "application/json", response);
    showNotification("Thresholds Updated", GREEN);
    return;
} else {
    server.send(400, "application/json", "{\"success\":false,\"message\":\"Missing parameters\"}");
    return;
}

}

void handleFactoryReset() {
    if (!server.authenticate(admin_username, admin_password)) {
        server.send(401, "text/plain", "Unauthorized");
        return;
    }

    if (server.method() != HTTP_POST) {
        server.send(405, "text/plain", "Method Not Allowed");
        return;
    }

    resetEEPROMToDefaults(); // Reset EEPROM values to defaults
    showNotification("Factory Resetting...", YELLOW, 2000); // Notify user on TFT
    delay(2000); // Short delay to show notification
    server.send(200, "application/json", "{\"success\":true}");
    ESP.restart(); // Restart ESP32 to apply defaults immediately
}

void resetEEPROMToDefaults() {
    balance = DEFAULT_BALANCE;
    lastEnergy = DEFAULT_ENERGY;
    overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;
    overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;
    theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;
    minimumBalance = DEFAULT_MINIMUM_BALANCE;
    costPerKWh = DEFAULT_COST_PER_KWH;

    saveBalance();
    saveThresholds();

    // Optionally clear the entire EEPROM (be cautious, this is usually not needed and can reduce EEPROM life if done excessively)
    // for (int i = 0; i < EEPROM_SIZE; i++) {
    //     EEPROM.write(i, 0);
    // }
    // EEPROM.commit();
    printDebugInfo("EEPROM Reset to Defaults", true);
}


void handleNotFound() {
server.send(404, "text/plain", "404: Not found");
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

741

742

743

744

745

746

747

748

749

750

751

752

753

754

755

756

757

758

759

760

761

762

763

764

765

766

767

768

769

770

771

772

773

774

775

776

777

778

779

780

781

782

783

784

785

786

787

788

789

790

791

792

793

794

795

796

797

798

799

800

801

802

803

804

805

806

807

808

809

810

811

812

813

814

815

816

817

818

819

820

821

822

823

824

825

826

827

828

829

830

831

832

833

834

835

836

837

838

839

840

841

842

843

844

845

846

847

848

849

850

851

852

853

854

855

856

857

858

859

860

861

862

863

864

865

866

867

868

869

870

871

872

873

874

875

876

877

878

879

880

881

882

883

884

885

886

887

888

889

890

891

892

893

894

895

896

897

898

899

900

901

902

903

904

905

906

907

908

909

910

911

912

913

914

915

916

917

918

919

920

921

922

923

924

925

926

927

928

929

930

931

932

933

934

935

936

937

938

939

940

941

942

943

944

945

946

947

948

949

950

951

952

953

954

955

956

957

958

959

960

961

962

963

964

965

966

967

968

969

970

971

972

973

974

975

976

977

978

979

980

981

982

983

984

985

986

987

988

989

990

991

992

993

994

995

996

997

998

999

1000

1001

1002

1003

1004

1005

1006

1007

1008

1009

1010

1011

1012

1013

1014

1015

1016

1017

1018

1019

1020

1021

1022

1023

1024

1025

1026

1027

1028

1029

1030

1031

1032

1033

1034

1035

1036

1037

1038

1039

1040

1041

1042

1043

1044

1045

1046

1047

1048

1049

1050

1051

1052

1053

1054

1055

1056

1057

1058

1059

1060

1061

1062

1063

1064

1065

1066

1067

1068

1069

1070

1071

1072

1073

1074

1075

1076

1077

1078

1079

1080

1081

1082

1083

1084

1085

1086

1087

1088

1089

1090

1091

1092

1093

1094

1095

1096

1097

1098

1099

1100

1101

1102

1103

1104

1105

1106

1107

1108

1109

1110

1111

1112

1113

1114

1115

1116

1117

1118

1119

1120

1121

1122

1123

1124

1125

1126

1127

1128

1129

1130

1131

1132

1133

1134

1135

1136

1137

1138

1139

1140

1141

1142

1143

1144

1145

1146

1147

1148

1149

1150

1151

1152

1153

1154

1155

1156

1157

1158

1159

1160

1161

1162

1163

1164

1165

1166

1167

1168

1169

1170

1171

1172

1173

1174

1175

1176

1177

1178

1179

1180

1181

1182

1183

1184

1185

1186

1187

1188

1189

1190

1191

1192

1193

1194

1195

1196

1197

1198

1199

1200

1201

1202

1203

1204

1205

1206

1207

1208

1209

1210

1211

1212

1213

1214

1215

1216

1217

1218

1219

1220

1221

1222

1223

1224

1225

1226

1227

1228

1229

1230

1231

1232

1233

1234

1235

1236

1237

1238

1239

1240

1241

1242

1243

1244

1245

1246

1247

1248

1249

1250

1251

1252

1253

1254

1255

1256

1257

1258

1259

1260

1261

1262

1263

1264

1265

1266

1267

1268

1269

1270

1271

1272

1273

1274

1275

1276

1277

1278

1279

1280

1281

1282

1283

1284

1285

1286

1287

1288

1289

1290

1291

1292

1293

1294

1295

1296

1297

1298

1299

1300

1301

1302

1303

1304

1305

1306

1307

1308

1309

1310

1311

1312

1313

1314

1315

1316

1317

1318

1319

1320

1321

1322

1323

1324

1325

1326

1327

1328

1329

1330

1331

1332

1333

1334

1335

1336

1337

1338

1339

1340

1341

1342

1343

1344

1345

1346

1347

1348

1349

1350

1351

1352

1353

1354

1355

1356

1357

1358

1359

1360

1361

1362

1363

1364

1365

1366

1367

1368

1369

1370

1371

1372

1373

1374

1375

1376

1377

1378

1379

1380

1381

1382

1383

1384

1385

1386

1387

1388

1389

1390

1391

1392

1393

1394

1395

1396

1397

1398

1399

1400

1401

1402

1403

1404

1405

1406

1407

1408

1409

1410

1411

1412

1413

1414

1415

1416

1417

1418

1419

1420

1421

1422

1423

1424

1425

1426

1427

1428

1429

1430

1431

1432

1433

1434

1435

1436

1437

1438

1439

1440

1441

1442

1443

1444

1445

1446

1447

1448

1449

1450

1451

1452

1453

1454

1455

1456

1457

1458

1459

1460

1461

1462

1463

1464

1465

1466

1467

1468

1469

1470

1471

1472

1473

1474

1475

1476

1477

1478

1479

1480

1481

1482

1483

1484

1485

1486

1487

1488

1489

1490

1491

1492

1493

1494

1495

1496

1497

1498

1499

1500

1501

1502

1503

1504

1505

1506

1507

1508

1509

1510

1511

1512

1513

1514

1515

1516

1517

1518

1519

1520

1521

1522

1523

1524

1525

1526

1527

1528

1529

1530

1531

1532

1533

1534

1535

1536

1537

1538

1539

1540

1541

1542

1543

1544

1545

1546

1547

1548

1549

1550

1551

1552

1553

1554

1555

1556

1557

1558

1559

1560

1561

1562

1563

1564

1565

1566

1567

1568

1569

1570

1571

1572

1573

1574

1575

1576

1577

1578

1579

1580

1581

1582

1583

1584

1585

1586

1587

1588

1589

1590

1591

1592

1593

1594

1595

1596

1597

1598

1599

1600

1601

1602

1603

1604

1605

1606

1607

1608

1609

1610

1611

1612

1613

1614

1615

1616

1617

1618

1619

1620

1621

1622

1623

1624

1625

1626

1627

1628

1629

1630

1631

1632

1633

1634

1635

1636

1637

1638

1639

1640

1641

1642

1643

1644

1645

1646

1647

1648

1649

1650

1651

1652

1653

1654

1655

1656

1657

1658

1659

1660

1661

1662

1663

1664

1665

1666

1667

1668

1669

1670

1671

1672

1673

1674

1675

1676

1677

1678

1679

1680

1681

1682

1683

1684

1685

1686

1687

1688

1689

1690

1691

1692

1693

1694

1695

1696

1697

1698

1699

1700

1701

1702

1703

1704

1705

1706

1707

1708

1709

1710

1711

1712

1713

1714

1715

1716

1717

1718

1719

1720

1721

1722

1723

1724

1725

1726

1727

1728

1729

1730

1731

1732

1733

1734

1735

1736

1737

1738

1739

1740

1741

1742

1743

1744

1745

1746

1747

1748

1749

1750

1751

1752

1753

1754

1755

1756

1757

1758

1759

1760

1761

1762

1763

1764

1765

1766

1767

1768

1769

1770

1771

1772

1773

1774

1775

1776

1777

1778

1779

1780

1781

1782

1783

1784

1785

1786

1787

1788

1789

1790

1791

1792

1793

1794

1795

1796

1797

1798

1799

1800

1801

1802

1803

1804

1805

1806

1807

1808

1809

1810

1811

1812

1813

1814

1815

1816

1817

1818

1819

1820

1821

1822

1823

1824

1825

1826

1827

1828

1829

1830

1831

1832

1833

1834

1835

1836

1837

1838

1839

1840

1841

1842

1843

1844

1845

1846

1847

1848

1849

1850

1851

1852

1853

1854

1855

1856

1857

1858

1859

1860

1861

1862

1863

1864

1865

1866

1867

1868

1869

1870

1871

1872

1873

1874

1875

1876

1877

1878

1879

1880

1881

1882

1883

1884

1885

1886

1887

1888

1889

1890

1891

1892

1893

1894

1895

1896

1897

1898

1899

1900

1901

1902

1903

1904

1905

1906

1907

1908

1909

1910

1911

1912

1913

1914

1915

1916

1917

1918

1919

1920

1921

1922

1923

1924

1925

1926

1927

1928

1929

1930

1931

1932

1933

1934

1935

1936

1937

1938

1939

1940

1941

1942

1943

1944

1945

1946

1947

1948

1949

1950

1951

1952

1953

1954

1955

1956

1957

1958

1959

1960

1961

1962

1963

1964

1965

1966

1967

1968

1969

1970

1971

1972

1973

1974

1975

1976

1977

1978

1979

1980

1981

1982

1983

1984

1985

1986

1987

1988

1989

1990

1991

1992

1993

1994

1995

1996

1997

1998

1999

2000

2001

2002

2003

2004

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

2018

2019

2020

2021

2022

2023

2024

2025

2026

2027

2028

2029

2030

2031

2032

2033

2034

2035

2036

2037

2038

2039

2040

2041

2042

2043

2044

2045

2046

2047

2048

2049

2050

2051

2052

2053

2054

2055

2056

2057

2058

2059

2060

2061

2062

2063

2064

2065

2066

2067

2068

2069

2070

2071

2072

2073

2074

2075

2076

2077

2078

2079

2080

2081

2082

2083

2084

2085

2086

2087

2088

2089

2090

2091

2092

2093

2094

2095

2096

2097

2098

2099

2100

2101

2102

2103

2104

2105

2106

2107

2108

2109

2110

2111

2112

2113

2114

2115

2116

2117

2118

2119

2120

2121

2122

2123

2124

2125

2126

2127

2128

2129

2130

2131

2132

2133

2134

2135

2136

2137

2138

2139

2140

2141

2142

2143

2144

2145

2146

2147

2148

2149

2150

2151

2152

2153

2154

2155

2156

2157

2158

2159

2160

2161

2162

2163

2164

2165

2166

2167

2168

2169

2170

2171

2172

2173

2174

2175

2176

2177

2178

2179

2180

2181

2182

2183

2184

2185

2186

2187

2188

2189

2190

2191

2192

2193

2194

2195

2196

2197

2198

2199

2200

2201

2202

2203

2204

2205

2206

2207

2208

2209

2210

2211

2212

2213

2214

2215

2216

2217

2218

2219

2220

2221

2222

2223

2224

2225

2226

2227

2228

2229

2230

2231

2232

2233

2234

2235

2236

2237

2238

2239

2240

2241

2242

2243

2244

2245

2246

2247

2248

2249

2250

2251

2252

2253

2254

2255

2256

2257

2258

2259

2260

2261

2262

2263

2264

2265

2266

2267

2268

2269

2270

2271

2272

2273

2274

2275

2276

2277

2278

2279

2280

2281

2282

2283

2284

2285

2286

2287

2288

2289

2290

2291

2292

2293

2294

2295

2296

2297

2298

2299

2300

2301

2302

2303

2304

2305

2306

2307

2308

2309

2310

2311

2312

2313

2314

2315

2316

2317

2318

2319

2320

2321

2322

2323

2324

2325

2326

2327

2328

2329

2330

2331

2332

2333

2334

2335

2336

2337

2338

2339

2340

2341

2342

2343

2344

2345

2346

2347

2348

2349

2350

2351

2352

2353

2354

2355

2356

2357

2358

2359

2360

2361

2362

2363

2364

2365

2366

2367

2368

2369

2370

2371

2372

2373

2374

2375

2376

2377

2378

2379

2380

2381

2382

2383

2384

2385

2386

2387

2388

2389

2390

2391

2392

2393

2394

2395

2396

2397

2398

2399

2400

2401

2402

2403

2404

2405

2406

2407

2408

2409

2410

2411

2412

2413

2414

2415

2416

2417

2418

2419

2420

2421

2422

2423

2424

2425

2426

2427

2428

2429

2430

2431

2432

2433

2434

2435

2436

2437

2438

2439

2440

2441

2442

2443

2444

2445

2446

2447

2448

2449

2450

2451

2452

2453

2454

2455

2456

2457

2458

2459

2460

2461

2462

2463

2464

2465

2466

2467

2468

2469

2470

2471

2472

2473

2474

2475

2476

2477

2478

2479

2480

2481

2482

2483

2484

2485

2486

2487

2488

2489

2490

2491

2492

2493

2494

2495

2496

2497

2498

2499

2500

2501

2502

2503

2504

2505

2506

2507

2508

2509

2510

2511

2512

2513

2514

2515

2516

2517

2518

2519

2520

2521

2522

2523

2524

2525

2526

2527

2528

2529

2530

2531

2532

2533

2534

2535

2536

2537

2538

2539

2540

2541

2542

2543

2544

2545

2546

2547

2548

2549

2550

2551

2552

2553

2554

2555

2556

2557

2558

2559

2560

2561

2562

2563

2564

2565

2566

2567

2568

2569

2570

2571

#include <PZEM004Tv30.h>

#include <SPI.h>

#include <Adafruit_GFX.h>

#include <Adafruit_ST7735.h>

#include <WiFi.h>

#include <WebServer.h>

#include <ArduinoJson.h>

#include <EEPROM.h>

#include <ESP.h> // Required for ESP.restart()

// Define pins for PZEM

#define PZEM_RX_PIN 16

#define PZEM_TX_PIN 17

// TFT display pins

#define TFT_CS 5

#define TFT_DC 21

#define TFT_RST 22

#define TFT_MOSI 23

#define TFT_SCLK 18

// Relay pin for power control

#define RELAY_PIN 4

// Push button pin for page change and manual relay override

#define BUTTON_PIN 32 // Example pin, choose an available pin

// EEPROM addresses

#define EEPROM_SIZE 128 // Increased EEPROM size to accommodate more settings

#define BALANCE_ADDR 0

#define ENERGY_ADDR 4

#define OVER_VOLTAGE_THRESHOLD_ADDR 8

#define OVER_CURRENT_THRESHOLD_ADDR 12

#define THEFT_CURRENT_THRESHOLD_ADDR 16

#define MINIMUM_BALANCE_ADDR 20

#define COST_PER_KWH_ADDR 24 // Corrected definition - retyped this line

// Default values for thresholds (used if EEPROM is empty or corrupted)

#define DEFAULT_OVER_VOLTAGE_THRESHOLD 260.0

#define DEFAULT_OVER_CURRENT_THRESHOLD 10.0

#define DEFAULT_THEFT_CURRENT_THRESHOLD 0.02

#define DEFAULT_MINIMUM_BALANCE 0.0

#define DEFAULT_COST_PER_KWH 0.2

#define DEFAULT_BALANCE 0.0

#define DEFAULT_ENERGY 0.0

// Authentication credentials for web interface

const char* admin_username = "admin";

const char* admin_password = "admin123";

// Server port

WebServer server(80);

// Colors (Added missing colors if needed)

#define BLACK 0x0000

#define BLUE 0x001F

#define RED 0xF800

#define GREEN 0x07E0

#define YELLOW 0xFFE0

#define WHITE 0xFFFF

#define DARKGRAY 0x4208

#define CYAN 0x07FF

#define MAGENTA 0xF81F

#define ORANGE 0xFD20 // Example Orange

// Text buffers to track changes and avoid unnecessary redraws

char lastVoltageText[20] = ""; // Increased buffer size to 20

char lastCurrentText[20] = "";

char lastPowerText[20] = "";

char lastEnergyText[20] = "";

char lastBalanceText[20] = "";

char lastStatusText[20] = "";

char lastFaultText[20] = "";

char lastTheftText[20] = "";

// Common text settings - Function to reduce repetition

void setTextProperties(Adafruit_ST7735 &display, uint16_t color, uint8_t size = 1) { // Modified to accept tft display object

display.setTextColor(color);

display.setTextSize(size);

}

// Global variables

unsigned long measurementInterval = 2000; // Interval between PZEM readings (milliseconds)

unsigned long lastReadTime = 0;

unsigned long screenRefreshTime = 0;

unsigned long balanceUpdateTime = 0;

unsigned long lastEnergyValue = 0;

const unsigned long SCREEN_REFRESH_INTERVAL = 1000; // Interval for screen refresh (milliseconds)

const unsigned long BALANCE_UPDATE_INTERVAL = 60000; // Update balance every minute

bool layoutDrawn = false;

unsigned long notificationEndTime = 0; //used for determine the end of the notification

String currentNotification = ""; // string to current displaying notification

uint16_t notificationColor = WHITE;

bool pzemConnected = true; // Flag to track PZEM connection status

bool relayState = true; // Flag to track relay state

float balance = 0.0; // Current balance in rupees

float lastEnergy = 0.0; // Last energy reading

bool faultDetected = false; // Flag for fault detection

bool theftDetected = false; // Flag for theft detection

int displayPage = 0; // Current display page (0=main, 1=alerts)

unsigned long pageChangeTime = 0; // Time to switch between pages

const unsigned long PAGE_INTERVAL = 5000; // Switch pages every 5 seconds

bool manualOverride = false; // Flag for manual relay control override

// Thresholds - now variables, loaded from EEPROM and configurable

float overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;

float overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;

float theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;

float minimumBalance = DEFAULT_MINIMUM_BALANCE;

float costPerKWh = DEFAULT_COST_PER_KWH;

// Initialize TFT and PZEM

Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_MOSI, TFT_SCLK, TFT_RST);

PZEM004Tv30 pzem(Serial2, PZEM_RX_PIN, PZEM_TX_PIN);

// Structure for PZEM readings

struct PzemData {

float voltage;

float current;

float power;

float energy;

bool isValid;

};

// Store readings

PzemData readings = {0, 0, 0, 0, false};

// Store IP address as a string to avoid repeated calls

String ipAddressStr = "";

// WiFi credentials - Replace with your actual credentials

const char* ssid = "ESP32";

const char* password = "aaaaaaaa";

// Button debounce variables

const unsigned long debounceDelay = 50; // Debounce delay in milliseconds

unsigned long lastButtonPress = 0;

bool buttonState = false; // Current button state

bool lastButtonState = false; // Previous button state

// Notification timer interval (5 minutes)

const unsigned long NOTIFICATION_INTERVAL = 300000; // 5 minutes in milliseconds

unsigned long lastNotificationTime = 0;

// WiFi reconnection variables

unsigned long lastWifiCheckTime = 0;

const unsigned long WIFI_RECHECK_INTERVAL = 30000; // Check WiFi every 30 seconds

// Manual relay override button variables

unsigned long buttonPressStartTime = 0;

bool manualRelayControlActive = false;

// Function prototypes

void handleRoot();

void handleLogin();

void handleRecharge();

void handleData();

void handleReset();

void handleSetRelay();

void handleNotFound();

void readPzemData();

void drawLayout();

void drawLiveDataPage();

void drawAlertsPage();

void updateDisplayValues();

void showNotification(const String& message, uint16_t color, unsigned long duration = 5000); //default 5 sec notification

void clearNotification();

void displayStartupSequence();

void configureWiFi(); // Modified to remove WiFiManager

void saveBalance();

void loadBalance();

void updateBalance();

void checkFaultsAndTheft();

void controlRelay();

void printDebugInfo(const char* action, bool success);

void handleSetThresholds(); // New handler for setting thresholds

void saveThresholds(); // Function to save thresholds to EEPROM

void loadThresholds(); // Function to load thresholds from EEPROM

String generateThresholdsHTML(); // Function to generate HTML for threshold settings section

void handleFactoryReset(); // New handler for factory reset

void resetEEPROMToDefaults(); // Function to reset EEPROM to defaults

void checkWiFiConnection(); // Function to check and reconnect WiFi

// Helper function to clear a text area on TFT

void clearTextArea(int x, int y, int w, int h) {

tft.fillRect(x, y, w, h, BLACK);

}

// HTML page stored in PROGMEM (Improved Web Dashboard UI/UX) - Modified to include Factory Reset Button

const char index_html[] PROGMEM = R"rawliteral(

<!DOCTYPE html>

<head>

<title>Prepaid Energy Monitor Pro</title>

<style>

/* Modern Professional Color Palette */

:root {

--primary: #0a2463;

--secondary: #3e92cc;

--accent: #2dc653;

--warning: #ffb400;

--danger: #d64045;

--dark: #1e1f26;

--light: #f8f9fa;

--gray-100: #f0f2f5;

--gray-200: #e9ecef;

--gray-300: #dee2e6;

--gray-400: #ced4da;

--gray-500: #adb5bd;

--gray-600: #6c757d;

--gray-700: #495057;

--gray-800: #343a40;

--text: #212529;

--box-shadow: 0 2px 8px rgba(0, 0, 0, 0.12);

--card-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);

--transition: all 0.2s ease;

}

* {

margin: 0;

padding: 0;

box-sizing: border-box;

}

body {

font-family: 'Roboto', 'Segoe UI', sans-serif;

background-color: var(--gray-100);

color: var(--text);

line-height: 1.6;

}

.dashboard-container {

display: grid;

grid-template-columns: 240px 1fr;

min-height: 100vh;

}

/* Sidebar */

.sidebar {

background-color: var(--primary);

color: white;

padding-top: 20px;

position: fixed;

height: 100vh;

width: 240px;

z-index: 100;

box-shadow: var(--box-shadow);

}

.brand {

display: flex;

align-items: center;

padding: 0 20px 20px;

border-bottom: 1px solid rgba(255, 255, 255, 0.1);

}

.brand-icon {

font-size: 24px;

margin-right: 10px;

}

.brand-name {

font-size: 18px;

font-weight: 600;

}

.nav-menu {

list-style: none;

padding: 20px 0;

}

.nav-item {

padding: 0 15px;

margin-bottom: 5px;

}

.nav-link {

display: flex;

align-items: center;

padding: 12px 15px;

color: rgba(255, 255, 255, 0.8);

text-decoration: none;

border-radius: 5px;

transition: var(--transition);

}

.nav-link:hover {

background-color: rgba(255, 255, 255, 0.1);

color: white;

}

.nav-link.active {

background-color: var(--secondary);

color: white;

}

.nav-icon {

margin-right: 10px;

width: 20px;

text-align: center;

}

/* Main Content */

.main-content {

grid-column: 2;

padding: 20px;

}

.page-header {

padding: 15px 0;

margin-bottom: 20px;

display: flex;

justify-content: space-between;

align-items: center;

}

.page-title {

font-size: 24px;

font-weight: 500;

color: var(--dark);

}

.page-subtitle {

font-size: 14px;

color: var(--gray-600);

margin-top: 5px;

}

/* Cards & Grids */

.card-grid {

display: grid;

grid-template-columns: repeat(auto-fit, minmax(240px, 1fr));

gap: 20px;

margin-bottom: 25px;

}

.card {

background-color: white;

border-radius: 10px;

box-shadow: var(--card-shadow);

padding: 20px;

transition: var(--transition);

}

.card:hover {

box-shadow: 0 10px 15px rgba(0, 0, 0, 0.07);

transform: translateY(-2px);

}

.card-header {

display: flex;

justify-content: space-between;

align-items: center;

margin-bottom: 15px;

}

.card-title {

font-size: 16px;

font-weight: 500;

color: var(--gray-700);

}

.card-icon {

font-size: 18px;

width: 36px;

height: 36px;

display: flex;

align-items: center;

justify-content: center;

border-radius: 50%;

background-color: var(--secondary);

color: white;

}

.dashboard-value {

font-size: 32px;

font-weight: 600;

color: var(--primary);

margin: 10px 0;

}

.unit {

font-size: 16px;

font-weight: normal;

color: var(--gray-600);

}

.trend {

display: flex;

align-items: center;

font-size: 14px;

color: var(--gray-600);

}

.trend-up {

color: var(--accent);

}

.trend-down {

color: var(--danger);

}

/* Status Indicators */

.status-card {

display: flex;

flex-direction: column;

height: 100%;

}

.status-indicators {

flex-grow: 1;

}

.status-item {

display: flex;

align-items: center;

padding: 12px 0;

border-bottom: 1px solid var(--gray-200);

}

.status-item:last-child {

border-bottom: none;

}

.status-indicator {

width: 12px;

height: 12px;

border-radius: 50%;

margin-right: 12px;

}

.status-active {

background-color: var(--accent);

}

.status-inactive {

background-color: var(--gray-500);

}

.status-warning {

background-color: var(--warning);

}

.status-danger {

background-color: var(--danger);

}

.status-label {

font-weight: 500;

flex-grow: 1;

}

.status-value {

font-weight: 600;

}

/* Action Areas */

.action-card {

height: 100%;

}

.action-content {

padding-top: 10px;

}

.input-group {

display: flex;

margin-bottom: 15px;

}

.input-group .form-input {

flex-grow: 1;

border-top-right-radius: 0;

border-bottom-right-radius: 0;

}

.input-group .input-append {

display: flex;

align-items: center;

padding: 0 12px;

background-color: var(--gray-200);

border: 1px solid var(--gray-300);

border-left: none;

border-top-right-radius: 5px;

border-bottom-right-radius: 5px;

color: var(--gray-700);

}

/* Forms */

.form-group {

margin-bottom: 20px;

}

.form-label {

display: block;

margin-bottom: 8px;

font-weight: 500;

color: var(--gray-700);

}

.form-input {

width: 100%;

padding: 10px 12px;

border: 1px solid var(--gray-300);

border-radius: 5px;

font-size: 14px;

transition: var(--transition);

}

.form-input:focus {

outline: none;

border-color: var(--secondary);

box-shadow: 0 0 0 3px rgba(62, 146, 204, 0.1);

}

/* Buttons */

.btn {

display: inline-block;

font-weight: 500;

text-align: center;

vertical-align: middle;

cursor: pointer;

border: 1px solid transparent;

padding: 10px 16px;

font-size: 14px;

line-height: 1.5;

border-radius: 5px;

transition: var(--transition);

}

.btn-primary {

color: white;

background-color: var(--secondary);

border-color: var(--secondary);

}

.btn-primary:hover {

background-color: #3182b8;

border-color: #3182b8;

}

.btn-success {

color: white;

background-color: var(--accent);

border-color: var(--accent);

}

.btn-success:hover {

background-color: #25a745;

border-color: #25a745;

}

.btn-danger {

color: white;

background-color: var(--danger);

border-color: var(--danger);

}

.btn-danger:hover {

background-color: #c13c40;

border-color: #c13c40;

}

.btn-block {

display: block;

width: 100%;

}

.btn:disabled {

opacity: 0.65;

pointer-events: none;

}

/* Alerts */

.alert {

padding: 12px 15px;

margin-bottom: 15px;

border-radius: 5px;

border: 1px solid transparent;

font-size: 14px;

}

.alert-success {

color: #155724;

background-color: #d4edda;

border-color: #c3e6cb;

}

.alert-danger {

color: #721c24;

background-color: #f8d7da;

border-color: #f5c6cb;

}

.alert-warning {

color: #856404;

background-color: #fff3cd;

border-color: #ffeeba;

}

/* Settings */

.settings-section {

margin-bottom: 25px;

}

.settings-header {

display: flex;

align-items: center;

margin-bottom: 15px;

padding-bottom: 10px;

border-bottom: 1px solid var(--gray-300);

}

.settings-icon {

margin-right: 10px;

color: var(--secondary);

}

.settings-title {

font-size: 18px;

font-weight: 500;

}

.settings-grid {

display: grid;

grid-template-columns: repeat(auto-fit, minmax(320px, 1fr));

gap: 20px;

}

/* Hide sections */

.page-section {

display: none;

}

.page-section.active {

display: block;

}

/* Footer */

.dashboard-footer {

margin-top: 30px;

padding-top: 15px;

border-top: 1px solid var(--gray-300);

color: var(--gray-600);

font-size: 14px;

text-align: center;

}

/* Responsive */

@media (max-width: 992px) {

.dashboard-container {

grid-template-columns: 1fr;

}

.sidebar {

display: none;

}

.main-content {

grid-column: 1;

}

</style>

</head>

<body>

<div class="brand-name">EnergyPro</div>

</div>

<span>Dashboard</span>

</a>

</li>

<span>Account</span>

</a>

</li>

<span>Control</span>

</a>

</li>

<span>Settings</span>

</a>

</li>

<span>Reports</span>

</a>

</li>

</a>

</li>

</ul>

</div>

<div>

<h1 class="page-title">Energy Dashboard</h1>

<p class="page-subtitle">Real-time monitoring of your prepaid energy system</p>

</div>

<div id="update-timestamp">Last updated: --:--:--</div>

</div>

<h3 class="card-title">BALANCE</h3>

</div>

<div class="trend">Available credit</div>

</div>

<h3 class="card-title">VOLTAGE</h3>

</div>

<div class="trend">Line voltage</div>

</div>

<h3 class="card-title">CURRENT</h3>

</div>

<div class="trend">Line current</div>

</div>

<h3 class="card-title">POWER</h3>

</div>

<div class="trend">Active power</div>

</div>

<h3 class="card-title">SYSTEM STATUS</h3>

</div>

<div class="status-label">Power</div>

</div>

<div class="status-label">Fault Status</div>

</div>

<div class="status-label">Theft Detection</div>

</div>

<div class="status-label">Total Energy</div>

</div>

<h3 class="card-title">QUICK ACTIONS</h3>

</div>

<p style="margin-bottom:15px;">Control power supply to your premises</p>

<button id="power-on-btn" class="btn btn-success" onclick="setRelay(1)" style="flex:1;" disabled>Power ON</button>

<button id="power-off-btn" class="btn btn-danger" onclick="setRelay(0)" style="flex:1;" disabled>Power OFF</button>

</div>

<p style="margin-bottom:15px;">Quick recharge your account</p>

</div>

<button class="btn btn-primary btn-block" onclick="quickRecharge()">Recharge Now</button>

</div>

<div>

<h1 class="page-title">Account Management</h1>

<p class="page-subtitle">Manage your prepaid account balance and transactions</p>

</div>

<h3 class="card-title">ACCOUNT BALANCE</h3>

</div>

<div class="trend">Available credit</div>

</div>

<h3 class="card-title">CONSUMPTION RATE</h3>

</div>

<div class="trend">Average daily consumption</div>

</div>

<h3 class="card-title">RECHARGE ACCOUNT</h3>

</div>

<label for="recharge-amount" class="form-label">Recharge Amount</label>

</div>

<button class="btn btn-primary" onclick="rechargeAccount()">Process Recharge</button>

</div>

<div>

<h1 class="page-title">System Control</h1>

<p class="page-subtitle">Monitor and control your energy system</p>

</div>

<h3 class="card-title">POWER CONTROL</h3>

</div>

<p style="margin:15px 0;">Current power status: <span id="relay-control-status">Loading...</span></p>

<button id="control-power-on-btn" class="btn btn-success" onclick="setRelay(1)" style="flex:1;" disabled>Turn Power ON</button>

<button id="control-power-off-btn" class="btn btn-danger" onclick="setRelay(0)" style="flex:1;" disabled>Turn Power OFF</button>

</div>

<h3 class="card-title">SYSTEM STATUS</h3>

</div>

<div class="status-label">Voltage Status</div>

</div>

<div class="status-label">Current Status</div>

</div>

<div class="status-label">Fault Status</div>

</div>

<div class="status-label">Theft Detection</div>

</div>

<div>

<h1 class="page-title">System Settings</h1>

<p class="page-subtitle">Configure thresholds and system parameters</p>

</div>

<h3 class="settings-title">Safety Thresholds</h3>

</div>

<label for="overVoltage" class="form-label">Over Voltage Threshold</label>

</div>

<label for="overCurrent" class="form-label">Over Current Threshold</label>

</div>

<h3 class="settings-title">Security Settings</h3>

</div>

<label for="theftCurrent" class="form-label">Theft Detection Threshold</label>

</div>

<h3 class="settings-title">Billing Settings</h3>

</div>

<label for="minBalance" class="form-label">Minimum Balance Threshold</label>

</div>

</div>

<button type="button" class="btn btn-primary" onclick="setThresholds()">Save All Settings</button>

</form>

<h3 class="settings-title" style="color: var(--danger);">Factory Reset</h3>

</div>

<p style="margin-top: 10px; margin-bottom: 20px;">Reset all settings to default and clear energy data. This action is irreversible.</p>

<button type="button" class="btn btn-danger" onclick="factoryReset()">Factory Reset</button>

</div>

<div>

<h1 class="page-title">Reports & Analytics</h1>

<p class="page-subtitle">View energy consumption reports and analytics</p>

</div>

<h3 class="card-title">ENERGY CONSUMPTION</h3>

</div>

<p style="text-align:center;padding:40px 0;">Consumption reports and charts will be displayed here</p>

</div>

<div>

<h1 class="page-title">Help & Support</h1>

<p class="page-subtitle">Get help with using your prepaid energy monitor</p>

</div>

<h3 class="card-title">SUPPORT INFORMATION</h3>

</div>

<p style="text-align:center;padding:40px 0;">Help and support information will be displayed here</p>

</div>

<p id="update-status">Last Update: --</p>

</div>

let relayState = false; // Track relay state on client-side

// Show selected page section

function showPage(page) {

// Hide all page sections

const pageSections = document.querySelectorAll('.page-section');

pageSections.forEach(section => {

section.classList.remove('active');

});

// Show selected page section

document.getElementById(page + '-section').classList.add('active');

// Update active nav link

const navLinks = document.querySelectorAll('.nav-link');

navLinks.forEach(link => {

link.classList.remove('active');

});

document.querySelector(`.nav-link[href="#${page}"]`).classList.add('active');

// Update content for specific pages

if (page === 'account') {

const dashboardBalance = document.getElementById('balance').textContent;

document.getElementById('account-balance').textContent = dashboardBalance;

}

function updateValues() {

fetch('/data')

.then(response => response.json())

.then(data => {

// Dashboard Section Updates

updateDashboardValues(data);

updateSystemStatus(data);

updatePowerControlUI(data.relayState);

// Account Section Updates

updateAccountSection(data);

// Control Section Updates

updateControlSection(data);

// Update timestamp

const now = new Date();

document.getElementById('update-timestamp').textContent = `Last updated: ${now.toLocaleTimeString()}`;

document.getElementById('update-status').textContent = `Last Update: ${now.toLocaleTimeString()}`;

})

.catch(error => {

console.error('Error fetching data:', error);

showAlert('Connection error. Retrying...', 'warning', 'main-alert');

document.getElementById('update-status').textContent = 'Update Failed';

});

}

function updateDashboardValues(data) {

updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

updateElement('voltage', data.voltage.toFixed(1) + '<span class="unit">V</span>');

updateElement('current', data.current.toFixed(3) + '<span class="unit">A</span>');

updateElement('power', data.power.toFixed(1) + '<span class="unit">W</span>');

updateElement('energy-value', data.energy.toFixed(3) + ' kWh');

}

function updateSystemStatus(data) {

updateStatusIndicator('power-indicator', data.relayState ? 'status-active' : 'status-inactive');

updateElement('power-status', data.relayState ? 'ON' : 'OFF');

updateStatusIndicator('fault-indicator', data.faultDetected ? 'status-danger' : 'status-active');

updateElement('fault-status', data.faultDetected ? 'FAULT' : 'OK');

updateStatusIndicator('theft-indicator', data.theftDetected ? 'status-warning' : 'status-active');

updateElement('theft-status', data.theftDetected ? 'DETECTED' : 'OK');

}

function updatePowerControlUI(serverRelayState) {

relayState = serverRelayState;

const onButtonDashboard = document.getElementById('power-on-btn');

const offButtonDashboard = document.getElementById('power-off-btn');

const onButtonControl = document.getElementById('control-power-on-btn');

const offButtonControl = document.getElementById('control-power-off-btn');

if (relayState) {

onButtonDashboard.disabled = true;

offButtonDashboard.disabled = false;

onButtonControl.disabled = true;

offButtonControl.disabled = false;

} else {

onButtonDashboard.disabled = false;

offButtonDashboard.disabled = true;

onButtonControl.disabled = false;

offButtonControl.disabled = true;

}

const relayStatusText = relayState ? 'ON' : 'OFF';

updateElement('relay-control-status', relayStatusText);

}

function updateAccountSection(data) {

updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

// Example consumption rate calculation (needs actual logic)

const consumptionRate = (data.energy * data.costPerKWh).toFixed(2); // Example

updateElement('consumption-rate', consumptionRate + '<span class="unit">₹/day</span>'); // Needs proper daily calculation

}

function updateControlSection(data) {

updateElement('relay-control-status', data.relayState ? 'ON' : 'OFF');

updateStatusIndicator('control-voltage-indicator', (data.voltage < 180 || data.voltage > 250) ? 'status-warning' : 'status-active');

updateElement('control-voltage-status', (data.voltage < 180) ? 'LOW' : (data.voltage > 250 ? 'HIGH' : 'OK'));

updateStatusIndicator('control-current-indicator', (data.current > data.overCurrent) ? 'status-warning' : 'status-active');

updateElement('control-current-status', (data.current > data.overCurrent) ? 'OVER' : 'OK');

updateStatusIndicator('control-fault-indicator', data.faultDetected ? 'status-danger' : 'status-active');

updateElement('control-fault-status', data.faultDetected ? 'FAULT' : 'OK');

updateStatusIndicator('control-theft-indicator', data.theftDetected ? 'status-warning' : 'status-active');

updateElement('control-theft-status', data.theftDetected ? 'DETECTED' : 'OK');

updatePowerControlUI(data.relayState); // Keep control section buttons in sync

}

function updateElement(id, html) {

const element = document.getElementById(id);

if (element) {

element.innerHTML = html;

}

function updateStatusIndicator(id, className) {

const indicator = document.getElementById(id);

if (indicator) {

indicator.className = 'status-indicator ' + className;

}

function setRelay(state) {

const onButtonDashboard = document.getElementById('power-on-btn');

const offButtonDashboard = document.getElementById('power-off-btn');

const onButtonControl = document.getElementById('control-power-on-btn');

const offButtonControl = document.getElementById('control-power-off-btn');

const alertElementDashboard = document.getElementById('power-control-alert');

const alertElementControl = document.getElementById('relay-control-alert');

// Disable buttons to prevent multiple clicks

onButtonDashboard.disabled = true;

offButtonDashboard.disabled = true;

onButtonControl.disabled = true;

offButtonControl.disabled = true;

const alertElement = document.querySelector('.page-section.active').id === 'dashboard-section' ? alertElementDashboard : alertElementControl;

showAlert('Processing power control...', 'warning', alertElement.id);

let overrideState = 0; // Assume no override

if (state === 0) {

overrideState = 1; // Set override if turning off

} else {

overrideState = 0; // Clear override if turning on

}

fetch(`/setRelay?state=${state}&override=${overrideState}`, { method: 'POST' })

.then(response => response.json())

.then(data => {

if (data.success) {

updatePowerControlUI(state === 1); // Update UI based on requested state

showAlert(`Power turned ${state === 1 ? 'ON' : 'OFF'} successfully.`, 'success', alertElement.id);

} else {

showAlert('Power control failed: ' + (data.message || 'Unknown error'), 'danger', alertElement.id);

updatePowerControlUI(relayState); // Revert UI to previous state if failed

}

// Re-enable buttons after request completes (or fails)

onButtonDashboard.disabled = false;

offButtonDashboard.disabled = false;

onButtonControl.disabled = false;

offButtonControl.disabled = false;

})

.catch(error => {

console.error('Error controlling relay:', error);

showAlert('Relay control error', 'danger', alertElement.id);

updatePowerControlUI(relayState); // Revert UI on error

// Re-enable buttons even on error

onButtonDashboard.disabled = false;

offButtonDashboard.disabled = false;

onButtonControl.disabled = false;

offButtonControl.disabled = false;

});

}

function rechargeAccount() {

const amount = document.getElementById('recharge-amount').value;

const rechargeAlert = document.getElementById('recharge-alert');

const rechargeButton = document.querySelector('#recharge-alert + button.btn-primary, #account-section button.btn-primary');

rechargeButton.disabled = true; // Disable recharge button during request

showAlert('Processing recharge...', 'warning', 'recharge-alert');

fetch(`/recharge?amount=${amount}`, { method: 'POST' })

.then(response => response.json())

.then(data => {

if (data.success) {

showAlert(`Recharge successful. New balance: ₹${data.balance.toFixed(2)}`, 'success', 'recharge-alert');

updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

} else {

showAlert('Recharge failed. ' + (data.message || 'Please try again.'), 'danger', 'recharge-alert');

}

rechargeButton.disabled = false; // Re-enable button after request completes

})

.catch(error => {

console.error('Recharge error:', error);

showAlert('Recharge error. Please try again.', 'danger', 'recharge-alert');

rechargeButton.disabled = false; // Re-enable button even on error

});

}

function quickRecharge() {

const amount = document.getElementById('quick-recharge-amount').value;

const rechargeAlert = document.getElementById('recharge-alert');

const rechargeButton = document.querySelector('#dashboard-section .action-card button.btn-primary');

rechargeButton.disabled = true;

showAlert('Processing recharge...', 'warning', 'power-control-alert');

fetch(`/recharge?amount=${amount}`, { method: 'POST' })

.then(response => response.json())

.then(data => {

if (data.success) {

showAlert(`Recharge successful. New balance: ₹${data.balance.toFixed(2)}`, 'success', 'power-control-alert');

updateElement('balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

updateElement('account-balance', data.balance.toFixed(2) + '<span class="unit">₹</span>');

} else {

showAlert('Recharge failed. ' + (data.message || 'Please try again.'), 'danger', 'power-control-alert');

}

rechargeButton.disabled = false;

})

.catch(error => {

console.error('Recharge error:', error);

showAlert('Recharge error. Please try again.', 'danger', 'power-control-alert');

rechargeButton.disabled = false;

});

}

function showAlert(message, type, alertElementId) {

const alertDiv = document.getElementById(alertElementId);

if(alertDiv) {

alertDiv.textContent = message;

alertDiv.className = `alert alert-${type}`;

alertDiv.style.display = 'block';

setTimeout(() => {

alertDiv.style.display = 'none';

}, 5000);

}

function setThresholds() {

const form = document.getElementById('threshold-form');

const formData = new FormData(form); // Use FormData to easily collect form data

const thresholdAlert = document.getElementById('threshold-alert');

const saveButton = document.querySelector('#threshold-form button.btn-primary'); // Select save button

const data = {};

formData.forEach((value, key) => {

data[key] = parseFloat(value); // Convert string values from form to floats

});

saveButton.disabled = true; // Disable save button during request

showAlert('Saving settings...', 'warning', 'threshold-alert');

fetch('/setThresholds', {

method: 'POST',

headers: {

'Content-Type': 'application/json' // Set content type to JSON

body: JSON.stringify(data) // Send form data as JSON

})

.then(response => response.json())

.then(responseData => {

if (responseData.success) {

showAlert('Settings updated successfully.', 'success', 'threshold-alert');

// Optionally update displayed threshold values on the page if you wish

} else {

showAlert('Failed to update settings: ' + (responseData.message || 'Unknown error'), 'danger', 'threshold-alert');

}

saveButton.disabled = false; // Re-enable button after request completes

})

.catch(error => {

console.error('Error setting thresholds:', error);

showAlert('Error updating settings. Please try again.', 'danger', 'threshold-alert');

saveButton.disabled = false; // Re-enable button even on error

});

}

function factoryReset() {

const resetAlert = document.getElementById('factory-reset-alert');

const resetButton = document.querySelector('#settings-section button.btn-danger');

resetButton.disabled = true;

showAlert('Performing factory reset...', 'warning', 'factory-reset-alert');

fetch('/factoryReset', { method: 'POST' })

.then(response => response.json())

.then(data => {

if (data.success) {

showAlert('Factory reset successful. System restarting...', 'success', 'factory-reset-alert');

setTimeout(() => {

window.location.href = '/login'; // Redirect to login page after reset

}, 3000); // Wait 3 seconds before redirecting and restarting ESP

} else {

showAlert('Factory reset failed: ' + (data.message || 'Unknown error'), 'danger', 'factory-reset-alert');

}

resetButton.disabled = false;

})

.catch(error => {

console.error('Factory reset error:', error);

showAlert('Factory reset error. Please try again.', 'danger', 'factory-reset-alert');

resetButton.disabled = false;

});

}

// Initial update and set interval

updateValues();

setInterval(updateValues, 3000); // Update every 3 seconds

// Set initial page to dashboard

showPage('dashboard');

</script>

</body>

</html>

)rawliteral";

// Login page HTML (No changes needed unless further UI/UX improvements are desired)

const char login_html[] PROGMEM = R"rawliteral(

<!DOCTYPE HTML>

<head>

<title>Login - ESP32 Prepaid Energy Monitor</title>

<style>

:root {

--primary-color: #3498db;

--secondary-color: #2c3e50;

--background-color: #f5f7fa;

--card-background: #ffffff;

--text-color: #333333;

--text-light: #7f8c8d;

--shadow: 0 4px 6px rgba(0, 0, 0, 0.1);

--transition: all 0.3s ease;

}

body {

font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;

background-color: var(--background-color);

margin: 0;

padding: 0;

color: var(--text-color);

line-height: 1.6;

}

.login-container {

max-width: 400px;

margin: 100px auto;

background: var(--card-background);

padding: 30px;

border-radius: 8px;

box-shadow: var(--shadow);

}

.login-container h2 {

text-align: center;

color: var(--secondary-color);

margin-bottom: 30px;

display: flex;

align-items: center;

justify-content: center;

}

.login-container h2 i {

margin-right: 10px;

color: var(--primary-color);

}

.form-group {

margin-bottom: 20px;

}

.form-group label {

display: block;

margin-bottom: 5px;

font-weight: bold;

color: var(--secondary-color);

}

.form-group input {

width: 100%;

padding: 10px;

border: 1px solid #ddd;

border-radius: 4px;

font-size: 16px;

}

.button {

background: linear-gradient(to right, var(--primary-color), var(--secondary-color));

color: white;

border: none;

padding: 12px 24px;

border-radius: 4px;

cursor: pointer;

font-size: 16px;

font-weight: bold;

transition: var(--transition);

display: inline-flex;

align-items: center;

width: 100%;

justify-content: center;

}

.button i {

margin-right: 8px;

}

.button:hover {

transform: translateY(-2px);

box-shadow: 0 6px 12px rgba(0, 0, 0, 0.15);

}

.alert {

padding: 10px 15px;

border-radius: 4px;

margin-bottom: 15px;

font-size: 14px;

}

.alert-danger {

background-color: #f8d7da;

color: #721c24;

border: 1px solid #f5c6cb;

}

</style>

</head>

<body>

<h2><i class="fas fa-lock"></i> Login</h2>

Invalid username or password

</div>

<label for="username">Username</label>

</div>

<label for="password">Password</label>

</div>

<i class="fas fa-sign-in-alt"></i> Login

</button>

</form>

</div>

const urlParams = new URLSearchParams(window.location.search);

if (urlParams.has('error')) {

document.getElementById('error-message').style.display = 'block';

}

</script>

</body>

</html>

)rawliteral";

void setup() {

// Initialize serial communication

Serial.begin(115200);

delay(500);

// Initialize EEPROM

EEPROM.begin(EEPROM_SIZE);

// Initialize relay pin

pinMode(RELAY_PIN, OUTPUT);

digitalWrite(RELAY_PIN, relayState ? HIGH : LOW);

// Initialize Button Pin

pinMode(BUTTON_PIN, INPUT_PULLUP);

// Initialize TFT display

tft.initR(INITR_BLACKTAB);

tft.setRotation(1); // Adjust rotation if needed for your display

tft.fillScreen(BLACK);

tft.setTextWrap(false);

// Display startup sequence

displayStartupSequence();

// Load saved balance and thresholds from EEPROM

loadBalance();

loadThresholds();

// Configure WiFi (Simplified)

configureWiFi();

// Store IP address as string

if (WiFi.status() == WL_CONNECTED) {

ipAddressStr = WiFi.localIP().toString();

showNotification("IP: " + ipAddressStr, GREEN, 5000);

} else {

showNotification("WiFi Failed to connect", RED, 5000);

}

// Set up web server routes

server.on("/", HTTP_GET, handleRoot);

server.on("/login", HTTP_GET, [](){

server.send(200, "text/html", login_html);

});

server.on("/login", HTTP_POST, handleLogin);

server.on("/data", HTTP_GET, handleData);

server.on("/recharge", HTTP_POST, handleRecharge);

server.on("/reset", HTTP_POST, handleReset);

server.on("/setRelay", HTTP_POST, handleSetRelay);

server.on("/setThresholds", HTTP_POST, handleSetThresholds); // New handler for thresholds

server.on("/factoryReset", HTTP_POST, handleFactoryReset); // New handler for factory reset

server.onNotFound(handleNotFound);

// Start web server

server.begin();

// Show notification

showNotification("System Ready", GREEN, 3000);

}

void loop() {

// Handle web server client requests

server.handleClient();

// Read PZEM data at specified intervals

if (millis() - lastReadTime >= measurementInterval) {

readPzemData();

lastReadTime = millis();

// Check for faults and theft

checkFaultsAndTheft();

// Control relay

controlRelay();

}

// Update balance based on energy usage

if (millis() - balanceUpdateTime >= BALANCE_UPDATE_INTERVAL) {

updateBalance();

balanceUpdateTime = millis();

saveBalance();

}

// **Button Handling for Page Change and Manual Relay Override**

int reading = digitalRead(BUTTON_PIN);

bool currentButtonState = (reading == LOW); // Button is active low

if (currentButtonState && !lastButtonState) { // Button pressed

if (millis() - lastButtonPress > debounceDelay) {

lastButtonPress = millis();

buttonPressStartTime = millis();

manualRelayControlActive = true; // Start checking for long press

}

} else if (!currentButtonState && lastButtonState) { // Button released

if (manualRelayControlActive) {

if (millis() - buttonPressStartTime >= 1000) { // Long press detected (3 seconds)

manualOverride = !manualOverride; // Toggle manual override state

relayState = !relayState; // Toggle relay state

digitalWrite(RELAY_PIN, relayState ? LOW : HIGH);

showNotification(relayState ? "Manual Relay ON" : "Manual Relay OFF", YELLOW);

// Web server will reflect state on next /data request

} else {

displayPage = (displayPage + 1) % 2; // Toggle page on short press

pageChangeTime = millis();

layoutDrawn = false; // Redraw layout for new page if needed

}

manualRelayControlActive = false;

}

lastButtonState = currentButtonState;

// Update display with page switching

if (millis() - screenRefreshTime >= SCREEN_REFRESH_INTERVAL) {

screenRefreshTime = millis();

if (!layoutDrawn) {

drawLayout(); // Draw common layout elements (title, separators) - Draw only once per page change

layoutDrawn = true;

}

if (millis() - pageChangeTime >= PAGE_INTERVAL) {

// Automatic page switch removed due to button implementation, keep it on current page until button press

// displayPage = (displayPage + 1) % 2; // Switch between 2 pages (0 and 1) - Removed Automatic switching

pageChangeTime = millis(); //reset page change timer, even if not auto-switching now

}

updateDisplayValues(); // Update dynamic values on the current page - Update only values, not full page redraw

}

// Clear notification if display time has elapsed

if (notificationEndTime > 0 && millis() >= notificationEndTime) {

clearNotification();

}

// Periodic notifications every 5 minutes

if (millis() - lastNotificationTime >= NOTIFICATION_INTERVAL) {

if (faultDetected) {

showNotification("Fault Detected! Check System.", RED);

} else if (theftDetected) {

showNotification("Theft Detected! Investigate.", RED);

} else if (balance <= minimumBalance) { // Use variable threshold

showNotification("Low Balance! Recharge Soon.", YELLOW);

} else if (!pzemConnected) {

showNotification("PZEM Disconnected!", RED);

} else if (WiFi.status() != WL_CONNECTED) {

showNotification("WiFi Disconnected!", RED);

}

// Add other conditions for different types of notifications as needed.

lastNotificationTime = millis();

}

// Check WiFi connection periodically and attempt to reconnect

checkWiFiConnection();

}

// Function to check WiFi connection and reconnect if necessary

void checkWiFiConnection() {

if (millis() - lastWifiCheckTime >= WIFI_RECHECK_INTERVAL) {

lastWifiCheckTime = millis();

if (WiFi.status() != WL_CONNECTED) {

Serial.println("WiFi Disconnected. Attempting reconnection...");

WiFi.reconnect();

showNotification("WiFi Disconnected! Reconnecting...", YELLOW);

// Optionally add a timeout for reconnection attempts to avoid indefinite blocking

} else if (WiFi.status() == WL_CONNECTED && currentNotification.startsWith("WiFi Disconnected!")) {

showNotification("WiFi Reconnected!", GREEN);

}

// Read data from PZEM sensor

void readPzemData() {

readings.voltage = pzem.voltage();

readings.current = pzem.current();

readings.power = pzem.power();

readings.energy = pzem.energy();

// Determine if reading is valid (voltage is used as indicator)

readings.isValid = !(isnan(readings.voltage) || readings.voltage < 1.0);

// Update connection status

bool newConnectionStatus = readings.isValid;

if (pzemConnected != newConnectionStatus) {

pzemConnected = newConnectionStatus;

if (pzemConnected) {

showNotification("PZEM Connected", GREEN);

} else {

showNotification("PZEM Disconnected", RED);

}

// Debug output

printDebugInfo("PZEM Reading", readings.isValid);

}

// Draw common layout elements (Title, separators, static labels) - Reduced redraw to title and separator only

void drawLayout() {

tft.fillScreen(BLACK); // Clear the whole screen only on page change for clean transition

tft.setTextSize(1);

// Title Bar - Compact for 1.8 inch display

setTextProperties(tft, YELLOW);

tft.setCursor(2, 2);

tft.print("ENERGY METER");

tft.drawFastHLine(0, 14, tft.width(), BLUE); // Header bar background

// Page Content Area (below title bar)

if (displayPage == 0) {

drawLiveDataPage(); // Draw Live Data Page elements

} else if (displayPage == 1) {

drawAlertsPage(); // Draw Alerts Page elements

}

layoutDrawn = true; // Ensure layout is marked as drawn after drawing page specific elements

}

// Constants for layout spacing and text positions - Optimized for 1.8 inch display

const int HEADER_HEIGHT = 14;

const int BOX_HEIGHT = 30;

const int BOX_ROUND_RADIUS = 3;

const int BOX_VERTICAL_START = HEADER_HEIGHT + 3;

const int ROW_SPACING = BOX_HEIGHT + 2;

const int LABEL_TEXT_Y_OFFSET = 3;

const int VALUE_TEXT_Y_OFFSET = 18;

const int FOOTER_AREA_HEIGHT = 20;

const int FOOTER_TEXT_Y_OFFSET = 6;

// Draw Live Data Page - Improved Layout with constants

void drawLiveDataPage() {

// Draw header bar

tft.fillRect(0, 0, tft.width(), HEADER_HEIGHT, BLUE);

tft.setTextSize(1);

setTextProperties(tft, WHITE);

tft.setCursor(5, 4);

tft.print("ESP32 PREPAID METER");

// Row 1: Voltage & Current

tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 0), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);

tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 0), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

// Row 2: Power & Energy

tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 1), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);

tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 1), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

// Row 3: Balance & Status (Replaced Frequency & PF)

tft.fillRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 2), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, DARKGRAY);

tft.drawRoundRect(2, BOX_VERTICAL_START + (ROW_SPACING * 2), tft.width() - 4, BOX_HEIGHT, BOX_ROUND_RADIUS, WHITE);

// Draw labels for each row

tft.setTextSize(1);

setTextProperties(tft, CYAN);

// Row 1 labels

tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 0) + LABEL_TEXT_Y_OFFSET);

tft.print("VOLTAGE");

tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 0) + LABEL_TEXT_Y_OFFSET);

tft.print("CURRENT");

// Row 2 labels

tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 1) + LABEL_TEXT_Y_OFFSET);

tft.print("POWER");

tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 1) + LABEL_TEXT_Y_OFFSET);

tft.print("ENERGY");

// Row 3 labels (Balance & Status)

tft.setCursor(5, BOX_VERTICAL_START + (ROW_SPACING * 2) + LABEL_TEXT_Y_OFFSET);

tft.print("BALANCE");

tft.setCursor(tft.width() / 2 + 5, BOX_VERTICAL_START + (ROW_SPACING * 2) + LABEL_TEXT_Y_OFFSET);

tft.print("STATUS");

// Draw notification area and IP address at bottom

tft.drawRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, WHITE);

// Display IP address in footer

tft.setTextSize(1);

setTextProperties(tft, GREEN);

tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);

tft.print("IP: ");

// Use stored IP address string

if (WiFi.status() == WL_CONNECTED) {

tft.print(ipAddressStr);

} else {

setTextProperties(tft, RED);

tft.print("Not Connected");

setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw

}

// Reset all text buffers when drawing a new page

memset(lastVoltageText, 0, sizeof(lastVoltageText));

memset(lastCurrentText, 0, sizeof(lastCurrentText));

memset(lastPowerText, 0, sizeof(lastPowerText));

memset(lastEnergyText, 0, sizeof(lastEnergyText));

memset(lastBalanceText, 0, sizeof(lastBalanceText));

memset(lastStatusText, 0, sizeof(lastStatusText));

}

void drawAlertsPage() {

tft.fillScreen(BLACK);

tft.setTextSize(2);

setTextProperties(tft, YELLOW);

tft.setCursor(5, 10);

tft.print("ALERTS");

tft.drawFastHLine(0, 30, tft.width(), DARKGRAY);

setTextProperties(tft, CYAN);

int y_offset = 40;

tft.setTextSize(1);

setTextProperties(tft, CYAN); // Set color for labels on Alerts page

tft.setCursor(5, 40);

tft.print("Over Voltage Limit:");

tft.setCursor(5, 55);

tft.print("Over Current Limit:");

tft.setCursor(5, 70);

tft.print("Theft Current:");

tft.setCursor(5, 85);

tft.print("Min Balance:");

// Footer with smaller text

tft.setTextSize(1);

setTextProperties(tft, DARKGRAY);

tft.setCursor(5, tft.height() - 10);

tft.print("2/2");

// Reset alert text buffers

memset(lastFaultText, 0, sizeof(lastFaultText));

memset(lastTheftText, 0, sizeof(lastTheftText));

}

void updateDisplayValues() {

if (displayPage == 0) { // Live Data Page

int x_value_start_left = 5;

int x_value_start_right = tft.width() / 2 + 5;

char newText[20]; // Increased buffer size for values with units

tft.setTextSize(1);

setTextProperties(tft, WHITE);

// Row 1: Voltage

tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET);

if (readings.isValid) {

sprintf(newText, "%.1fV", readings.voltage);

tft.print(newText);

strcpy(lastVoltageText, newText);

} else {

tft.print("0.0V"); // Display 0.0V when no reading

strcpy(lastVoltageText, "0.0V");

}

// Row 1: Current

tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 0) + VALUE_TEXT_Y_OFFSET);

if (readings.isValid) {

sprintf(newText, "%.3fA", readings.current);

tft.print(newText);

strcpy(lastCurrentText, newText);

} else {

tft.print("0.000A"); // Display 0.000A when no reading

strcpy(lastCurrentText, "0.000A");

}

// Row 2: Power

tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET);

if (readings.isValid) {

sprintf(newText, "%.1fW", readings.power);

tft.print(newText);

strcpy(lastPowerText, newText);

} else {

tft.print("0.0W"); // Display 0.0W when no reading

strcpy(lastPowerText, "0.0W");

}

// Row 2: Energy

tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 1) + VALUE_TEXT_Y_OFFSET);

if (readings.isValid) {

sprintf(newText, "%.2fkWh", readings.energy);

tft.print(newText);

strcpy(lastEnergyText, newText);

} else {

tft.print("0.00kWh"); // Display 0.00kWh when no reading

strcpy(lastEnergyText, "0.00kWh");

}

// Row 3: Balance

tft.fillRect(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_left, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET);

sprintf(newText, "%.2f Rs", balance);

tft.print(newText);

strcpy(lastBalanceText, newText);

// Row 3: Status

tft.fillRect(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET, tft.width()/2 - 10, BOX_HEIGHT - VALUE_TEXT_Y_OFFSET - 2, BLACK);

tft.setCursor(x_value_start_right, BOX_VERTICAL_START + (ROW_SPACING * 2) + VALUE_TEXT_Y_OFFSET);

if (balance <= minimumBalance) {

setTextProperties(tft, RED);

strcpy(newText, "LOW BAL");

} else if (faultDetected) {

setTextProperties(tft, RED);

strcpy(newText, "FAULT");

} else if (theftDetected) {

setTextProperties(tft, ORANGE); // Use Orange for theft

strcpy(newText, "THEFT");

} else if (!pzemConnected) {

setTextProperties(tft, RED);

strcpy(newText, "PZEM OFF");

}

else if (relayState) {

setTextProperties(tft, GREEN);

strcpy(newText, "ACTIVE");

} else {

setTextProperties(tft, DARKGRAY); // Use dark gray for OFF status

strcpy(newText, "OFF");

}

tft.print(newText);

strcpy(lastStatusText, newText);

setTextProperties(tft, WHITE); // Reset text color to white for other values

} else if (displayPage == 1) { // Alerts Page

tft.setTextSize(1);

setTextProperties(tft, WHITE);

int x_value_start = 130; // Adjusted x position for values on alerts page

char newText[20];

setTextProperties(tft, WHITE); // Set color for threshold values on Alerts page

tft.fillRect(x_value_start, 40, tft.width() - x_value_start - 5, 8, BLACK);

tft.setCursor(x_value_start, 40);

sprintf(newText, "%.1fV", overVoltageThreshold);

tft.print(newText);

tft.fillRect(x_value_start, 55, tft.width() - x_value_start - 5, 8, BLACK);

tft.setCursor(x_value_start, 55);

sprintf(newText, "%.2fA", overCurrentThreshold);

tft.print(newText);

tft.fillRect(x_value_start, 70, tft.width() - x_value_start - 5, 8, BLACK);

tft.setCursor(x_value_start, 70);

sprintf(newText, "%.3fA", theftCurrentThreshold);

tft.print(newText);

tft.fillRect(x_value_start, 85, tft.width() - x_value_start - 5, 8, BLACK);

tft.setCursor(x_value_start, 85);

sprintf(newText, "%.2f Rs", minimumBalance);

tft.print(newText);

}

// Notification area - Moved higher for better visibility

static unsigned long lastNotificationUpdate = 0;

static char lastNotificationText[30] = "";

int notificationY = 113 + FOOTER_TEXT_Y_OFFSET; // Adjusted notification Y

if (notificationEndTime > 0 && millis() < notificationEndTime) {

if (strcmp(currentNotification.c_str(), lastNotificationText) != 0 ||

millis() - lastNotificationUpdate > 500) {

tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area

tft.setTextSize(1);

setTextProperties(tft, notificationColor);

tft.setCursor(2, notificationY);

tft.print(currentNotification);

strcpy(lastNotificationText, currentNotification.c_str());

lastNotificationUpdate = millis();

}

} else if (notificationEndTime > 0 && millis() >= notificationEndTime) {

// Clear notification when expired

tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area

notificationEndTime = 0;

lastNotificationText[0] = '\0';

// Redraw IP address after clearing notification

setTextProperties(tft, GREEN);

tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);

tft.print("IP: ");

if (WiFi.status() == WL_CONNECTED) {

tft.print(ipAddressStr);

} else {

setTextProperties(tft, RED);

tft.print("Not Connected");

setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw

}

void showNotification(const String& message, uint16_t color, unsigned long duration) {

currentNotification = message;

notificationColor = color;

notificationEndTime = millis() + duration;

// Notification area positioned higher

int notificationY = 113 + FOOTER_TEXT_Y_OFFSET;

tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK); // Clear footer area

tft.setTextSize(1);

setTextProperties(tft, color);

tft.setCursor(2, notificationY);

tft.print(message);

}

void clearNotification() {

// Clear the notification area at its new position

tft.fillRect(2, 113, tft.width() - 4, FOOTER_AREA_HEIGHT, BLACK);

notificationEndTime = 0;

// Redraw IP address after clearing notification

setTextProperties(tft, GREEN);

tft.setCursor(5, 113 + FOOTER_TEXT_Y_OFFSET);

tft.print("IP: ");

if (WiFi.status() == WL_CONNECTED) {

tft.print(ipAddressStr);

} else {

setTextProperties(tft, RED);

tft.print("Not Connected");

setTextProperties(tft, GREEN); // Reset color for IP: prefix for next redraw

}

void displayStartupSequence() {

tft.fillScreen(BLACK);

tft.setTextSize(2); // Larger text for startup

setTextProperties(tft, GREEN);

// Center the title text

int titleX = (tft.width() - 12*11)/2; // Approximate centering for "ENERGY METER"

tft.setCursor(titleX > 0 ? titleX : 0, 10);

tft.print("ENERGY METER");

tft.setTextSize(1); // Smaller text for status messages

setTextProperties(tft, WHITE); // Set color for status text to white

tft.setCursor(5, 35);

tft.print("Booting...");

// Progress bar sized appropriately for display

int barWidth = tft.width() - 10;

tft.drawRect(5, 45, barWidth, 8, WHITE);

for (int i = 0; i < barWidth - 4; i += 2) {

tft.fillRect(7, 47, i, 4, BLUE);

delay(25); // Faster animation

}

// Status messages positioned better

clearTextArea(5, 60, tft.width() - 10, 8);

setTextProperties(tft, WHITE); // Ensure color is set before each text print

tft.setCursor(5, 60);

tft.print("Init sensors...");

delay(300);

clearTextArea(5, 60, tft.width() - 10, 8);

setTextProperties(tft, WHITE);

tft.setCursor(5, 60);

tft.print("Web server...");

delay(300);

clearTextArea(5, 60, tft.width() - 10, 8);

setTextProperties(tft, WHITE);

tft.setCursor(5, 60);

tft.print("System ready!");

delay(500);

}

void configureWiFi() {

Serial.println("Connecting to WiFi...");

WiFi.begin(ssid, password);

tft.fillScreen(BLACK);

tft.setTextSize(1); // Smaller text to fit more info

setTextProperties(tft, WHITE);

tft.setCursor(5, 10);

tft.print("Connecting WiFi...");

// Add a small animation during connection

int dotCount = 0;

int timeout = 0;

while (WiFi.status() != WL_CONNECTED && timeout < 30) {

delay(1000);

Serial.print(".");

// Clear animation line and redraw

tft.fillRect(5, 25, tft.width() - 10, 8, BLACK);

setTextProperties(tft, WHITE); // Set color before printing dots

tft.setCursor(5, 25);

for(int i = 0; i < dotCount; i++) {

tft.print(".");

}

dotCount = (dotCount + 1) % 4; // Cycle between 0-3 dots

timeout++;

}

if (WiFi.status() == WL_CONNECTED) {

tft.fillRect(5, 25, tft.width() - 10, 16, BLACK);

setTextProperties(tft, WHITE);

tft.setCursor(5, 25);

tft.print("Connected!");

tft.setCursor(5, 40);

tft.print(WiFi.localIP().toString());

Serial.println("\nWiFi Connected!");

Serial.print("IP address: ");

Serial.println(WiFi.localIP());

} else {

tft.fillRect(5, 25, tft.width() - 10, 8, BLACK);

setTextProperties(tft, RED);

tft.setCursor(5, 25);

tft.print("Connection Failed!");

Serial.println("\nWiFi Connection Failed!");

}

delay(1500); // Show the result briefly

}

// Save balance to EEPROM - No changes needed, looks good

void saveBalance() {

EEPROM.writeFloat(BALANCE_ADDR, balance);

EEPROM.writeFloat(ENERGY_ADDR, lastEnergy);

EEPROM.commit();

printDebugInfo("Save Balance", true);

}

// Load balance from EEPROM - No changes needed, looks good

void loadBalance() {

balance = EEPROM.readFloat(BALANCE_ADDR);

lastEnergy = EEPROM.readFloat(ENERGY_ADDR);

// Check if values are valid (not NaN or negative)

if (isnan(balance) || balance < 0) {

balance = 0.0;

}

if (isnan(lastEnergy) || lastEnergy < 0) {

lastEnergy = 0.0;

}

printDebugInfo("Load Balance", true);

}

// Save thresholds to EEPROM - No changes needed, looks good

void saveThresholds() {

EEPROM.writeFloat(OVER_VOLTAGE_THRESHOLD_ADDR, overVoltageThreshold);

EEPROM.writeFloat(OVER_CURRENT_THRESHOLD_ADDR, overCurrentThreshold);

EEPROM.writeFloat(THEFT_CURRENT_THRESHOLD_ADDR, theftCurrentThreshold);

EEPROM.writeFloat(MINIMUM_BALANCE_ADDR, minimumBalance);

EEPROM.writeFloat(COST_PER_KWH_ADDR, costPerKWh);

EEPROM.commit();

printDebugInfo("Save Thresholds", true);

}

// Load thresholds from EEPROM - No changes needed, looks good

void loadThresholds() {

overVoltageThreshold = EEPROM.readFloat(OVER_VOLTAGE_THRESHOLD_ADDR);

overCurrentThreshold = EEPROM.readFloat(OVER_CURRENT_THRESHOLD_ADDR);

theftCurrentThreshold = EEPROM.readFloat(THEFT_CURRENT_THRESHOLD_ADDR);

minimumBalance = EEPROM.readFloat(MINIMUM_BALANCE_ADDR);

costPerKWh = EEPROM.readFloat(COST_PER_KWH_ADDR); // Corrected usage - making sure macro is spelled correctly

// Check if values are valid (not NaN or negative/zero where appropriate)

if (isnan(overVoltageThreshold) || overVoltageThreshold <= 0) {

overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;

}

if (isnan(overCurrentThreshold) || overCurrentThreshold <= 0) {

overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;

}

if (isnan(theftCurrentThreshold) || theftCurrentThreshold < 0) {

theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;

}

if (isnan(minimumBalance) ) { // Minimum balance can be negative if you want to allow credit

minimumBalance = DEFAULT_MINIMUM_BALANCE;

}

if (isnan(costPerKWh) || costPerKWh <= 0) {

costPerKWh = DEFAULT_COST_PER_KWH;

}

printDebugInfo("Load Thresholds", true);

}

// Update balance based on energy consumption - No changes needed, looks good

void updateBalance() {

if (!readings.isValid) return;

float energyUsed = readings.energy - lastEnergy;

// If energy counter was reset or first reading

if (energyUsed < 0) {

energyUsed = readings.energy;

}

// Calculate cost

float cost = energyUsed * costPerKWh;

// Deduct from balance if relay is on and not manually overridden off

if (relayState && !manualOverride && cost > 0) {

balance -= cost;

// Ensure balance doesn't go negative

if (balance < 0) {

balance = 0;

}

printDebugInfo("Balance Updated", true);

}

// Update last energy reading

lastEnergy = readings.energy;

}

// Check for electrical faults and theft - No changes needed, looks good

void checkFaultsAndTheft() {

if (!readings.isValid) return;

// Check for faults (over voltage or over current)

bool newFaultState = (readings.voltage > overVoltageThreshold ||

readings.current > overCurrentThreshold);

// Only show notification if fault state changes

if (newFaultState != faultDetected) {

faultDetected = newFaultState;

if (faultDetected) {

showNotification("Fault Detected!", RED);

} else {

showNotification("Fault Cleared", GREEN);

}

// Check for theft (current flowing when relay is off)

bool newTheftState = (!relayState && readings.current > theftCurrentThreshold);

// Only show notification if theft state changes

if (newTheftState != theftDetected) {

theftDetected = newTheftState;

if (theftDetected) {

showNotification("Theft Detected!", RED);

} else {

showNotification("Theft Alert Cleared", GREEN);

}

// Control relay based on balance and faults - Modified to respect manual override

void controlRelay() {

if (manualOverride) return; // Do not auto-control relay if manually overridden

bool shouldBeOn = (balance > minimumBalance && !faultDetected);

// Only change relay state if needed

if (relayState != shouldBeOn) {

relayState = shouldBeOn;

digitalWrite(RELAY_PIN, relayState ? LOW : HIGH);

if (relayState) {

showNotification("Power Enabled", GREEN);

} else {

showNotification("Power Disabled", RED);

}

// Print debug information to serial - No changes needed, looks good

void printDebugInfo(const char* action, bool success) {

Serial.print("[");

Serial.print(action);

Serial.print("] ");

if (success) {

Serial.println("Success");

} else {

Serial.println("Failed");

}

// Web server handlers - No changes needed, looks good

void handleRoot() {

if (!server.authenticate(admin_username, admin_password)) {

return server.requestAuthentication();

}

server.send(200, "text/html", index_html);

}

void handleLogin() {

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

if (server.arg("username") == admin_username &&

server.arg("password") == admin_password) {

server.sendHeader("Location", "/");

server.send(303);

} else {

server.sendHeader("Location", "/login?error=1");

server.send(303);

}

void handleRecharge() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

if (server.hasArg("amount")) {

float amount = server.arg("amount").toFloat();

if (amount > 0) {

balance += amount;

saveBalance();

// Create JSON response

String response = "{\"success\":true,\"balance\":" + String(balance, 2) + "}";

server.send(200, "application/json", response);

showNotification("Recharged: Rs" + String(amount, 2), GREEN);

return;

}

server.send(400, "application/json", "{\"success\":false,\"message\":\"Invalid amount\"}");

}

void handleData() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

// Create JSON document

DynamicJsonDocument doc(1024);

// Add readings

doc["isValid"] = readings.isValid;

doc["voltage"] = readings.voltage;

doc["current"] = readings.current;

doc["power"] = readings.power;

doc["energy"] = readings.energy;

// If reading is invalid, send 0 values for web dashboard to clear values

if (!readings.isValid) {

doc["voltage"] = 0.0;

doc["current"] = 0.0;

doc["power"] = 0.0;

doc["energy"] = 0.0;

}

// Add status information

doc["balance"] = balance;

doc["relayState"] = relayState;

doc["faultDetected"] = faultDetected;

doc["theftDetected"] = theftDetected;

doc["overVoltageThreshold"] = overVoltageThreshold;

doc["overCurrentThreshold"] = overCurrentThreshold;

doc["theftCurrentThreshold"] = theftCurrentThreshold;

doc["minimumBalance"] = minimumBalance;

doc["costPerKWh"] = costPerKWh;

doc["manualOverride"] = manualOverride; // Send manual override status

// Serialize JSON to string

String response;

serializeJson(doc, response);

server.send(200, "application/json", response);

}

void handleReset() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

// Reset energy counter on PZEM

bool success = pzem.resetEnergy();

// Reset stored energy value

lastEnergy = 0.0;

saveBalance();

String response = "{\"success\":" + String(success ? "true" : "false") + "}";

server.send(200, "application/json", response);

if (success) {

showNotification("Energy Counter Reset", YELLOW);

} else {

showNotification("Reset Failed", RED);

}

void handleSetRelay() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

if (server.hasArg("state") && server.hasArg("override")) {

int state = server.arg("state").toInt();

int override_manual = server.arg("override").toInt();

bool success = false;

if (state == 0) {

relayState = false;

digitalWrite(RELAY_PIN, HIGH);

success = true;

showNotification("Power Off", RED);

manualOverride = (override_manual == 1); // Set manual override based on parameter

} else if (state == 1) {

if (balance > minimumBalance && !faultDetected) {

relayState = true;

digitalWrite(RELAY_PIN, LOW);

success = true;

showNotification("Power On", GREEN);

manualOverride = false; // Clear manual override when turned on manually or automatically

}

String response = "{\"success\":" + String(success ? "true" : "false") + "}";

server.send(200, "application/json", response);

return;

}

server.send(400, "application/json", "{\"success\":false,\"message\":\"Missing state parameter\"}");

}

void handleSetThresholds() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

DynamicJsonDocument doc(512); // Adjust size as needed

DeserializationError error = deserializeJson(doc, server.arg("plain"));

if (error) {

Serial.print(F("deserializeJson() failed: "));

Serial.println(error.f_str());

server.send(400, "application/json", "{\"success\":false,\"message\":\"Invalid JSON\"}");

return;

}

if (doc.containsKey("overVoltage") && doc.containsKey("overCurrent") && doc.containsKey("theftCurrent") && doc.containsKey("minBalance") && doc.containsKey("costPerKWh")) {

overVoltageThreshold = doc["overVoltage"].as<float>();

overCurrentThreshold = doc["overCurrent"].as<float>();

theftCurrentThreshold = doc["theftCurrent"].as<float>();

minimumBalance = doc["minBalance"].as<float>();

costPerKWh = doc["costPerKWh"].as<float>();

saveThresholds(); // Save new thresholds to EEPROM

String response = "{\"success\":true}";

server.send(200, "application/json", response);

showNotification("Thresholds Updated", GREEN);

return;

} else {

server.send(400, "application/json", "{\"success\":false,\"message\":\"Missing parameters\"}");

return;

}

void handleFactoryReset() {

if (!server.authenticate(admin_username, admin_password)) {

server.send(401, "text/plain", "Unauthorized");

return;

}

if (server.method() != HTTP_POST) {

server.send(405, "text/plain", "Method Not Allowed");

return;

}

resetEEPROMToDefaults(); // Reset EEPROM values to defaults

showNotification("Factory Resetting...", YELLOW, 2000); // Notify user on TFT

delay(2000); // Short delay to show notification

server.send(200, "application/json", "{\"success\":true}");

ESP.restart(); // Restart ESP32 to apply defaults immediately

}

void resetEEPROMToDefaults() {

balance = DEFAULT_BALANCE;

lastEnergy = DEFAULT_ENERGY;

overVoltageThreshold = DEFAULT_OVER_VOLTAGE_THRESHOLD;

overCurrentThreshold = DEFAULT_OVER_CURRENT_THRESHOLD;

theftCurrentThreshold = DEFAULT_THEFT_CURRENT_THRESHOLD;

minimumBalance = DEFAULT_MINIMUM_BALANCE;

costPerKWh = DEFAULT_COST_PER_KWH;

saveBalance();

saveThresholds();

// Optionally clear the entire EEPROM (be cautious, this is usually not needed and can reduce EEPROM life if done excessively)

// for (int i = 0; i < EEPROM_SIZE; i++) {

// EEPROM.write(i, 0);

// }

// EEPROM.commit();

printDebugInfo("EEPROM Reset to Defaults", true);

}

void handleNotFound() {

server.send(404, "text/plain", "404: Not found");

}

Verify and upload the code to your ESP32

Power Up and Test

After safely completing all wiring, power up the ESP32; the TFT screen should light up and show the startup sequence

After a successful connection, the system displays its IP address on the TFT screen and connects to that IP address from a browser connected to your WiFi.

Username: admin
Password: admin123

Configure Your System

Through the web dashboard, you can:

Add credit to your prepaid balance
Set the cost per kWh to match your local electricity rates
Configure safety thresholds:

- Over-voltage protection
- Over-current protection
- Theft detection sensitivity
- Minimum balance before cutoff
Control the power relay manually when needed

How to Use Your Prepaid Energy Monitor

Local Display (TFT Screen)

The TFT shows real-time voltage, current, power, energy, and balance
Press the button to cycle through different information screens
Long-press the button to toggle power ON/OFF manually

Web Dashboard

Access the web dashboard from any device on your network by entering the IP address shown on the TFT screen:

Main Dashboard:

- View all electrical parameters in real time.
- See your remaining balance.
- Check system status indicators.
Control Panel:

- Turn power ON/OFF
- Add credit to your balance
- View alert indicators
Settings:

- Adjust all threshold values.
- Set electricity cost per kWh
- Perform factory reset if needed

Testing with Different Loads:

No Load Testing: Connect the system without any appliance to verify baseline readings; the display shows near-zero current and power readings when no load is connected

Small Load (2W Smart Bulb):

The display shows a small current draw and accurate power measurement with minimal Load.

Web dashboard

Medium Load (100W Bulb):

The display clearly shows increased current and power consumption with the 100W Load.

Long-press the button to toggle power ON/OFF manually.

Advanced Features

Fault Protection

The system automatically detects and protects against:

Over-voltage conditions (configurable threshold)
Over-current conditions (configurable threshold)
Energy theft (detects current when the relay is OFF)

Stable Memory

Even after power outages, the system remembers:

Your prepaid balance
Accumulated energy usage
All custom settings

Troubleshooting Tips

No readings from PZEM: Check serial connections between ESP32 and PZEM
TFT not displaying: Verify TFT connections and power
Can’t connect to web dashboard: Check WiFi settings and connection
Relay not switching: Verify relay connections and test relay functionality
Balance decreasing too quickly: Verify your cost per kWh setting

IoT Based ESP32 Prepaid Energy Meter with PZEM-004T | Power Monitoring & Web Control

DIY ESP32 Thermal Camera with MLX90640 and TFT Display

Step-by-Step: Build an IoT Energy Meter with ESP32 & PZEM-004T V3 (TFT + Web Dashboard)

IoT Air Quality & Weather Monitoring with ESP32 & BME688

IoT Based Fire and Smoke Detection System with Alert Notifications Using ESP32

Interfacing ZMPT101B Voltage Sensor with ESP32

Getting Started with ESP32 UWB DW3000 Board Ultra-Wideband

1 Comment

DIY ESP32 Thermal Camera with MLX90640 and TFT Display

IoT Based ESP32 Prepaid Energy Meter with PZEM-004T | Power Monitoring & Web Control

Step-by-Step: Build an IoT Energy Meter with ESP32 & PZEM-004T V3 (TFT + Web Dashboard)

IoT Air Quality & Weather Monitoring with ESP32 & BME688

Quick Links

Company

Services

Ads Blocker Detected!!!

Ads Blocker Detected!!!

IoT Based ESP32 Prepaid Energy Meter with PZEM-004T | Power Monitoring & Web Control

Required Components

Software Requirements:

PZEM-004T Energy Meter Module

Key Features:

Pinout:

Applications:

Working Principle | IoT ESP32 Prepaid Energy Meter With PZEM-004T

Connect the Components

1. PZEM-004T Connections

Load (Bulb) Connections

2. Relay Connections

3. TFT Display to ESP32 Connections

4. Connect the Push Button

Install the Libraries:

Upload the Code

Source code – IoT ESP32 Prepaid Energy Meter

Power Up and Test

Configure Your System

How to Use Your Prepaid Energy Monitor

Local Display (TFT Screen)

Web Dashboard

Testing with Different Loads:

Web dashboard

Medium Load (100W Bulb):

Advanced Features

Fault Protection

Stable Memory

Troubleshooting Tips

Related Posts

1 Comment

Quick Links

Company

Services

Subscribe to Updates

Ads Blocker Detected!!!

Ads Blocker Detected!!!
